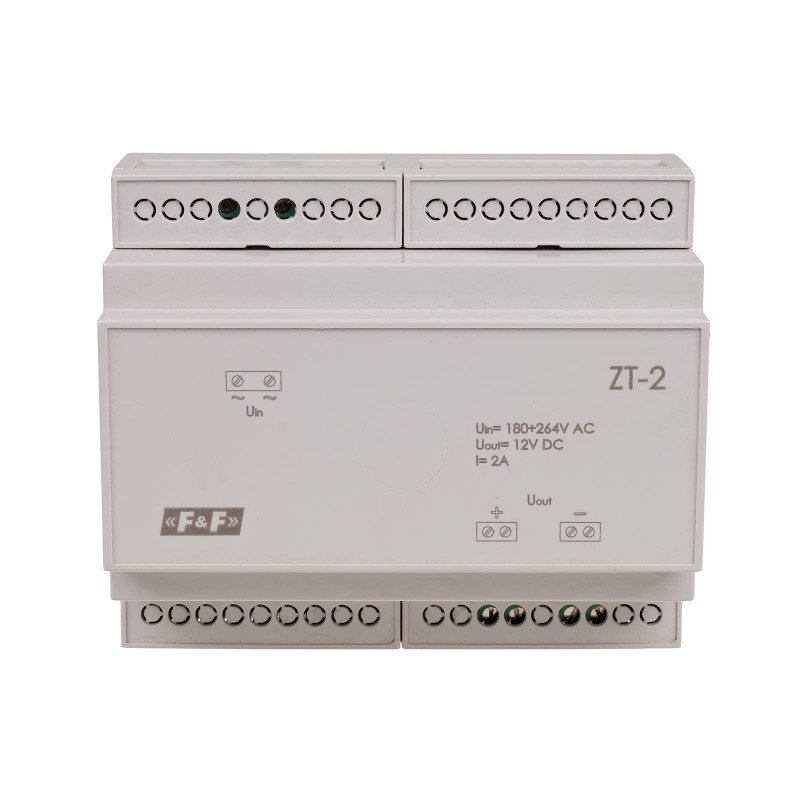

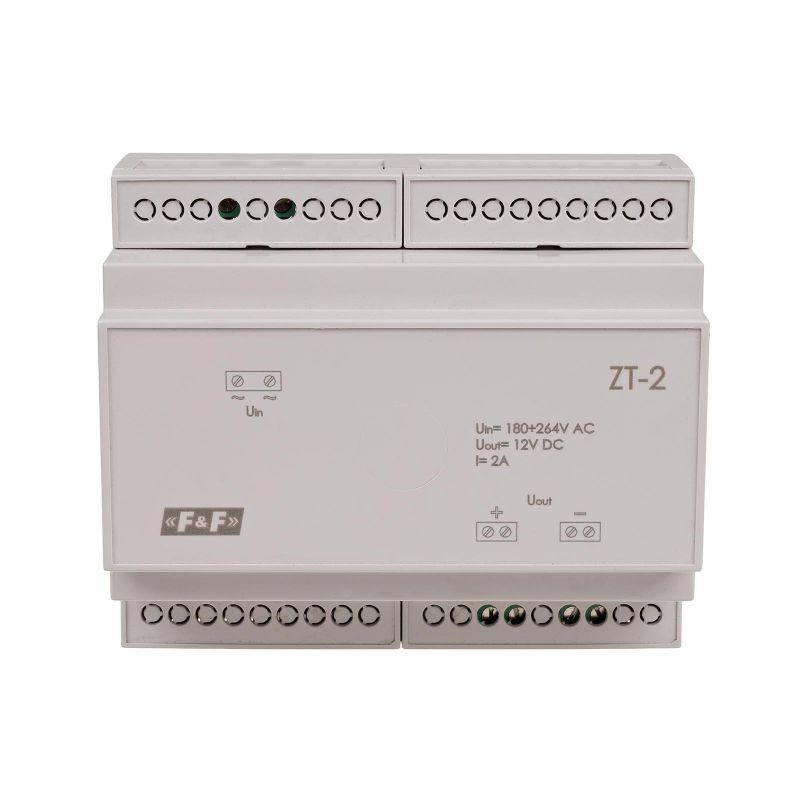

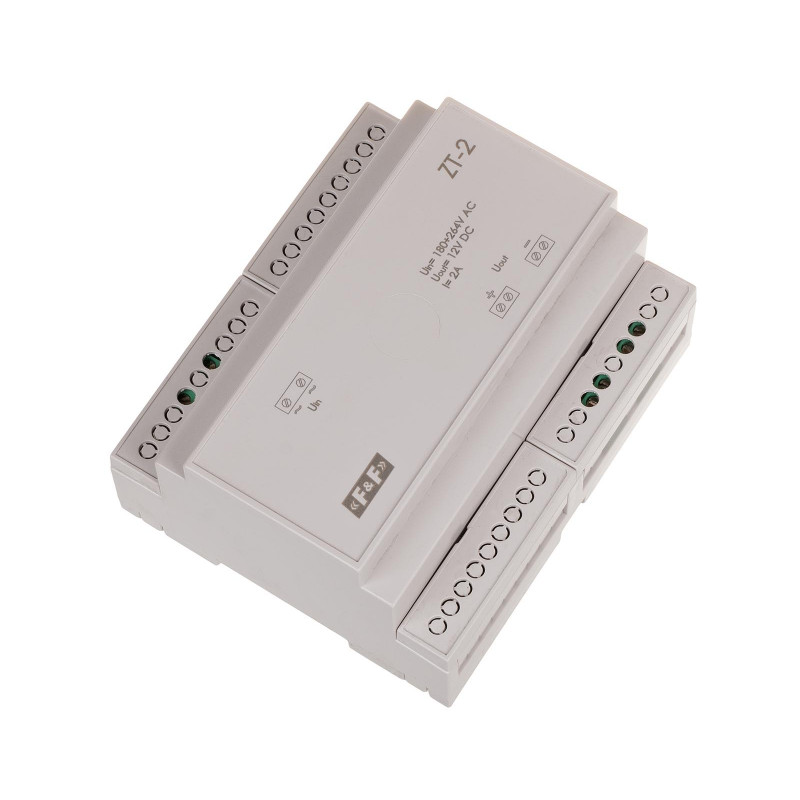

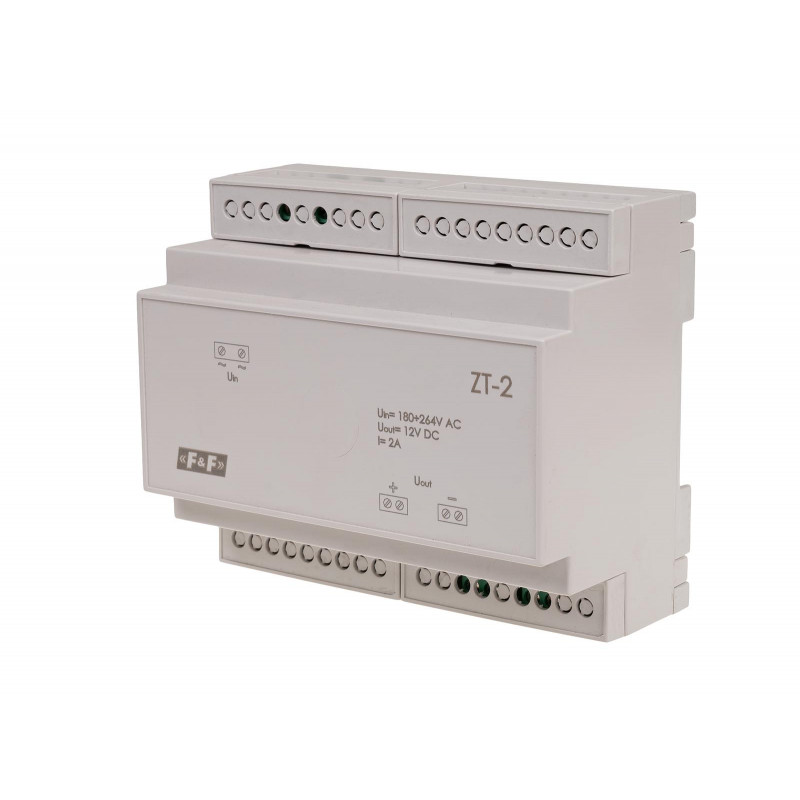

Transformer-based with pulse stabilizer ZT-2

ZT-2, 5908312591788

Product description

Transformer power supply with pulse stabilizer. 12 V output voltage. Power 25 W.

Implementation

TypeOutput voltage
Output current
ZT-15V DC3A
ZT-212V DC2A
ZT-424V DC1A



Attention!
* Due to the high frequency power supply, some very sensitive radio or microprocessor can operate correctly. It is recommended that you install the filter OP-230 LC filter or the like (preferably current compensated) between power supply and receiver.
* By increasing the load above Imax will stabilize power supply current and output voltage will decrease.
* The power supply is resistant to short-circuit.
* The power supply has a thermal fuse protection against overload above Imax. Due to long-term congestion power supply is automatically disconnected.


Typetransformer power supply
Power supply voltage180÷264 V AC
Maximum load current2 A
Output voltage OUT12 V DC
Output power25 W
Current limit110% output voltage
Minimal load0%
Switching frequency52 kHz
Mass742 g
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Working temperature-10÷40°C
Dimensions6 modules (105 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

ZT-2 manual (46.19k)

ZT-2 outline CAD dxf (370.36k)
