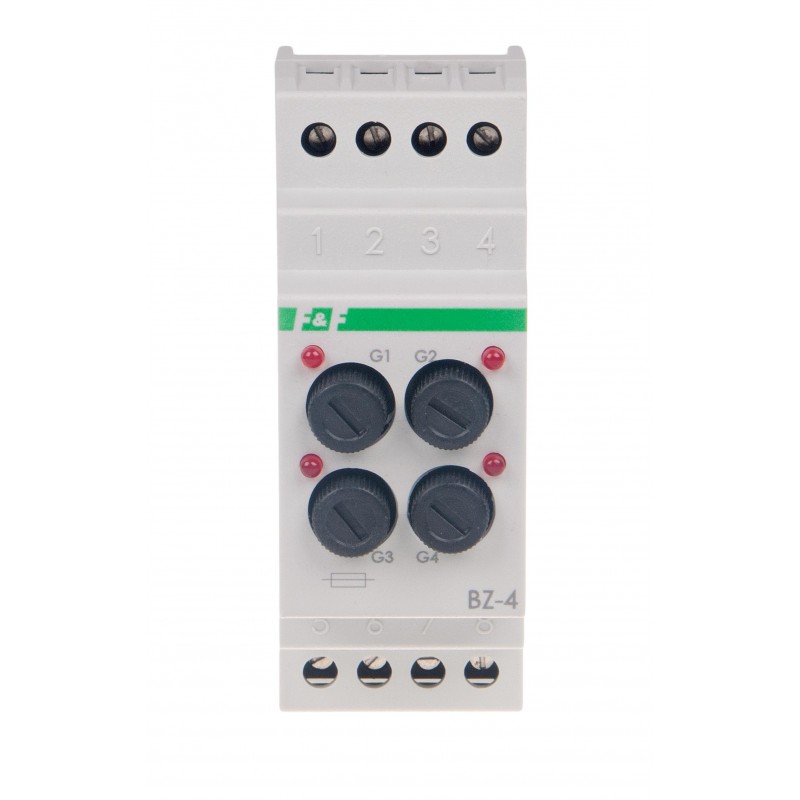

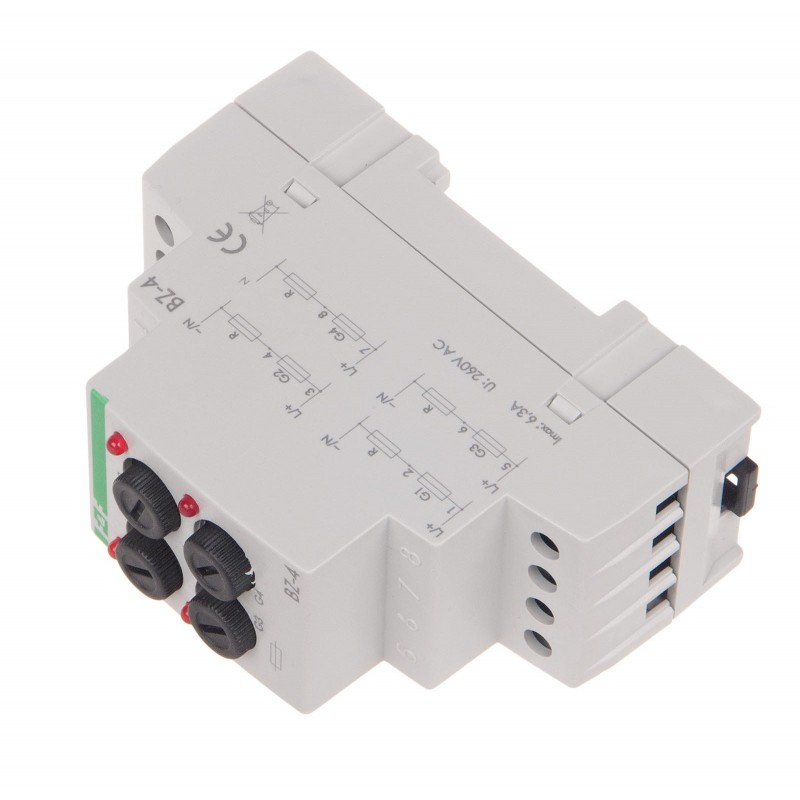

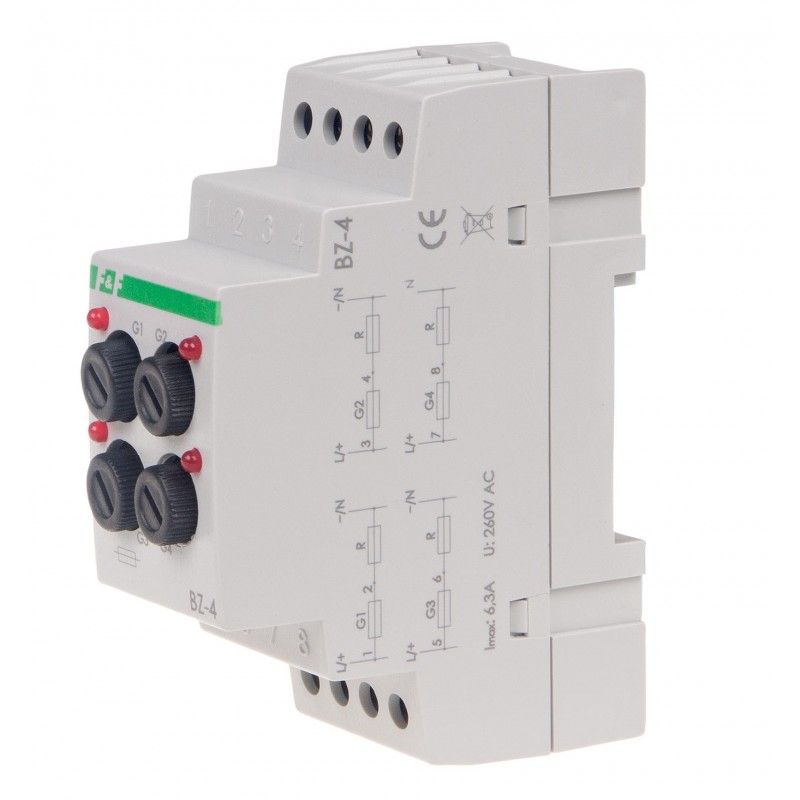

Fuse module BZ-4
Fuse module BZ-4
BZ-4, 5908312596264
Product description
Four-sockets.Fuse receiver modules serve as a security device for electric receivers against current increase over the nominal current value for the secured.
Functioning
Fuse actuation (blowing of fuse link) is signalled by a red LED.
Attention!
With DC power supply, proper polarity of the connection is of importance since otherwise the LED shall not signal the fuse actuation.
| Power supply voltage | max 250 V AC/DC (zależne od użytej wkładki topikowej) |
| Maximum load current | 6,3 A |
| Fuse | wkładka topikowa Ø5×20 mm |
| Terminal | pluggable terminal blocks 4,0 mm² |
| Tightening torque | 0,5 Nm |
| Working temperature | -25 ÷ 50 °C |
| Dimensions | 2 modules (35 mm) |
| Assembly | on rail 35 mm |
| Ingress Protection Marking | IP20 |
