Fluid level control relays (liquid level sensors) are devices that, thanks to probes, protect apartments, houses and offices against flooding. The liquid level control sensors available from F&F use the conductivity of the liquid. They are primarily useful in those parts of buildings that are particularly prone to flooding, such as laundries or utility rooms - where there are water valves or flow pipes.

The presence of a failure (flooding the room with water) is detected by shorting the probe electrodes. Depending on the version, the sensor can trigger an alarm and disconnect the electrical circuits.

Showing 1 - 10 of 10 items

Fluid level control relay PZ-828
Reference: PZ-828, EAN13: 5908312595601

One-position. Sensitivity settings from factory.
Fluid level control relays are devised to detect the presence of conductive liquids reaching the level of the sensor.
PZ-828 manual PZ-828 outline CAD dxf PZ SAM declaration CE 2020
More
Add to Compare
Fluid level control relay PZ-828 B
Reference: PZ-828 B, EAN13: 5908312591382

Without PZ probe. One-position. Sensitivity settings from factory.
Fluid level control relays are devised to detect the presence of conductive liquids reaching the level of the sensor.
PZ-828 manual PZ-828 B outline CAD dxf PZ SAM declaration CE 2020
More
Add to Compare

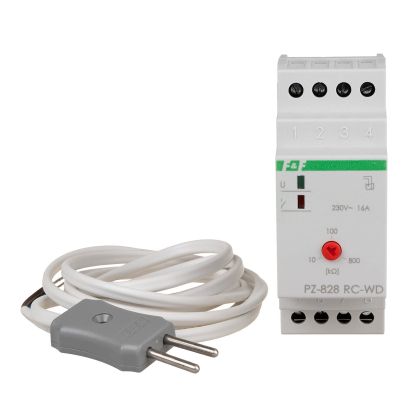

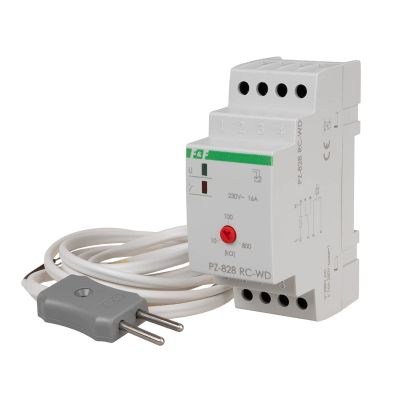

Fluid level control relay PZ-828 RC
Reference: PZ-828RC, EAN13: 5908312591474

One-position. Adjustable sensitivity.
Fluid level control relays are devised to detect the presence of conductive liquids reaching the level of the sensor.
PZ-828 RC manual PZ-828 RC outline CAD dxf PZ SAM declaration CE 2020 PZ-828 RC Bedienungsanleitung PZ-828 RC Manual de usuario
More
Add to Compare
Fluid level control relay PZ-829
Reference: PZ-829, EAN13: 5908312596288

Two-position. Sensitivity settings from factory.
Fluid level control relays are devised to detect the presence of conductive liquids reaching the level of the sensor.
Allow states to maintain minimum and maximum control in the field of fluid specified by the user.
PZ-829 manual PZ-829 outline CAD dxf PZ SAM declaration CE 2020
More
Add to Compare
Fluid level control relay PZ-829 RC
Reference: PZ-829RC, EAN13: 5908312591504

Two-position. Adjustable sensitivity.
Fluid level control relays are devised to detect the presence of conductive liquids reaching the level of the sensor.
Allow states to maintain minimum and maximum control in the field of fluid specified by the user.
PZ-829 RC manual PZ-829 RC outline CAD dxf PZ SAM declaration CE 2020 PZ-829 RC Bedienungsanleitung PZ-829 RC Manual de usuario
More
Add to Compare
Fluid level control relay PZ-831 RC
Reference: PZ-831RC, EAN13: 5908312592549

Three-position. Adjustable sensitivity.
PZ-831 fluid level control relays is devised to detect the presence of conductive liquids reaching the levels of the sensor.
PZ-831 RC manual PZ-831 RC outline CAD dxf PZ SAM declaration CE 2020
More
Add to Compare
Fluid level control relay PZ-832 RC
Reference: PZ-832RC, EAN13: 5908312594369

Two-positions, with emergency states.
Fluid level control relays PZ-832 is devised to detect the presence of conductive liquids reaching the level of the sensor.
PZ-832 RC manual PZ-832 RC outline CAD dxf PZ SAM declaration CE 2020
More
Add to Compare
Automatic anti-flood system ASP
Reference: ASP,

ASP automatic anti-flood system is an autonomous system to prevent flooding of residential, single-family and multifamily buildings. It is used for comprehensive protection of property from the effects of flooding.
ASP - CE declaration ASP USM declaration CE 2020
More
Add to Compare
External probe PZ
Reference: SONDA-PZ, EAN13: 5908312595724

The probe is designed to work with liquid control relays PZ-828, PZ-828 RC.
brak załączników
More
Add to Compare
External probe PZ2
Reference: SONDA-PZ2, EAN13: 5908312596158

The probe is designed to work with liquid control relays PZ-829, PZ-829 RC, PZ-831 RC, PZ-832 RC
brak załączników
More
Add to Compare
