Bistable relays are designed to control lighting with pulses coming from an unlimited number of momentary buttons. They allow you to achieve effects that are impossible to achieve in a classic lighting installation and at the same time can replace classic stair and cross stair switches. This solution provides full comfort of using the lighting. In a system consisting of an unlimited number of switches, the user can turn on the light with any button and can also turn it off with any button. As a result, thanks to the use of impulse relays, the buttons for switching the lighting on and off can be installed in any place and number, which significantly increases the comfort of using the lighting in the facility.
Power supply: 165÷265 V AC
Max load: 2x10 A
Mounting: on a 35 mm rail

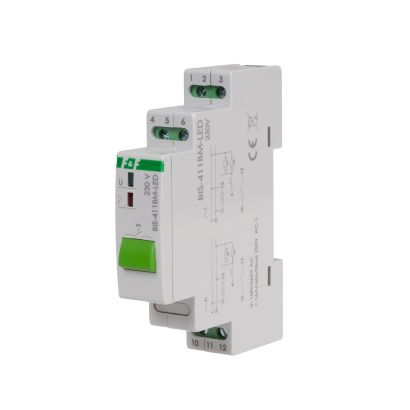

This electronic two-channel bistable relay allows lighting or other devices to be switched on from several different points using parallel connected control buttons.
Dedicated to control LED loads (120A/20ms).
Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). To under plaster box Ø60. Can be used with backlit buttons.
Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). On TH-35 mm rail. Can be used with backlit buttons.
Power supply: 165÷265 V AC
Max load: 2x10 A
Mounting: on a 35 mm rail
This electronic two-channel bistable relay allows lighting or other devices to be switched on from several different points using parallel connected control buttons.
Dedicated to control LED loads (120A/20ms).
Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). To under plaster box Ø60. Can be used with backlit buttons.
Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). On TH-35 mm rail. Can be used with backlit buttons.
