Electronic bistable impulse relay BIS-411 24 V

Electronic bistable impulse relay BIS-411 24 V

BIS-411-24V

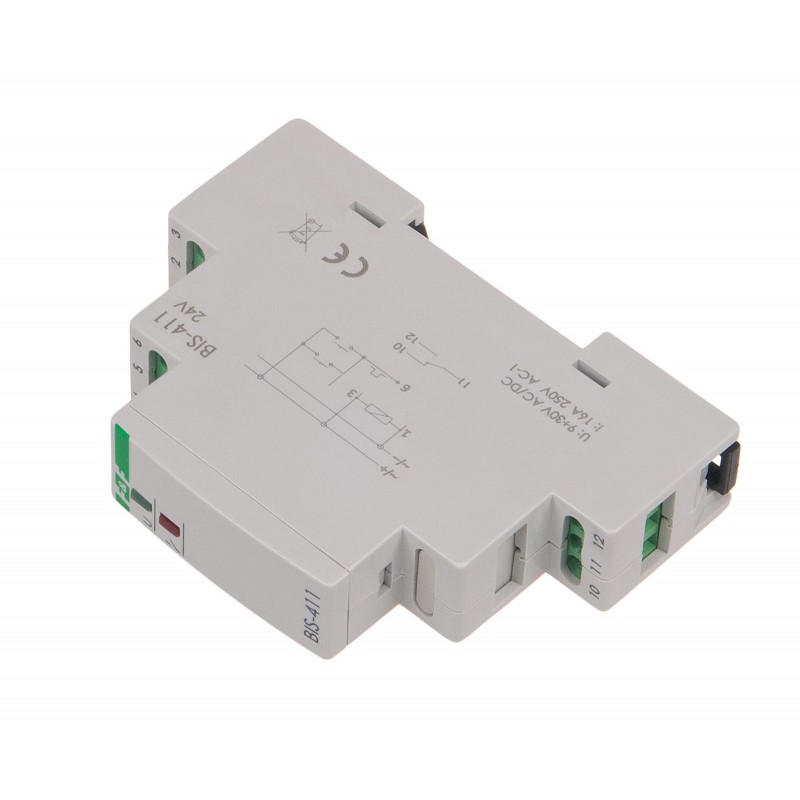

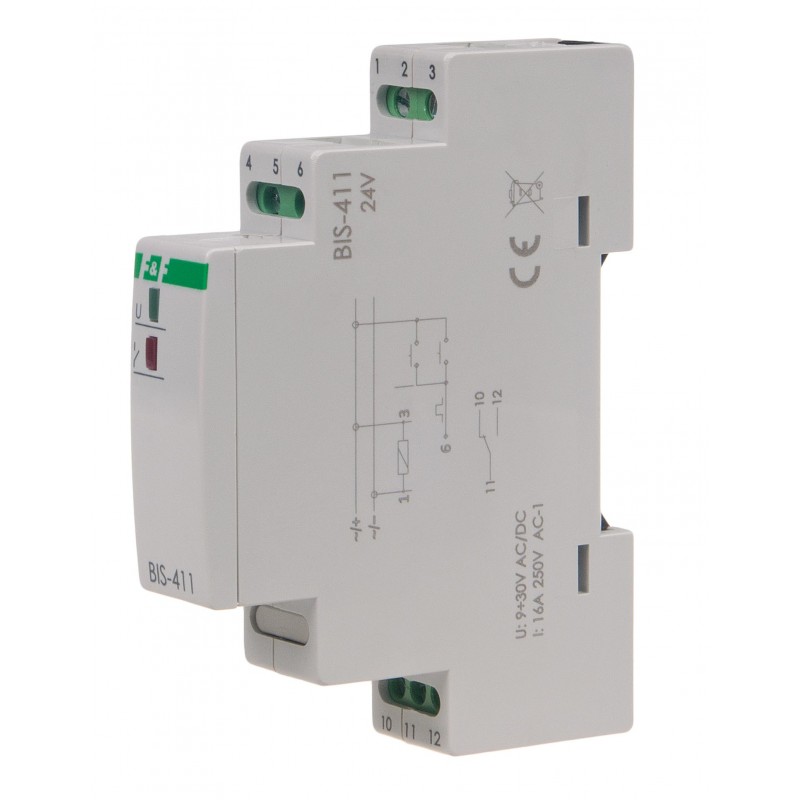

Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Power supply 24 V AC. Maximum load 16 A. On TH-35 mm rail.



Functioning
The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time.
The relay does not ÔÇťmemorizeÔÇŁ the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.


Attention!
The BIS-411 and BIS-411i (230V versions) compatible with bell pushes equipped with fluorescent lamps.

Attention!
The BIS-411 and BIS-411i (24V versions) not compatible with bell pushes equipped with fluorescent lamps.

Power table




The above data are indicative and will depend to a large extent on the design of a specific receiver (especially for LED bulbs, energy saving lamps, electronic transformers and pulse power supplies), switching frequency and working conditions.


Power supply voltage9├Ě30 V AC/DC
Local controlYES
Maximum AC-1 load current16 A
The executive elementrelay
Contact configuration1 ├Ś NO/NC
Separation of the contactYES
Resistance to shock currentsNO
Number of channels1
functionalityON/OFF
Delay of operation0,1 ├Ě 0,2 s
Control pulse currentless than 1 mA
Cooperation with illuminated buttonsNO
Status memory after power failureNO
Activate on timeNO
Dedicated central control inputsNO
Radio controlNO
terminalscrew terminals 2,5 mm┬▓
Tightening torque0,4 Nm
Power consumption0,7 W
Working temperature-25 ├Ě 50 ┬░C
dimensions1 module (18 mm)
Assemblyon rail 35 mm
Level of securityIP20
Przyciski pod┼Ťwietlane
Z uwagi na niskie napi─Öcie zasilania nie nale┼╝y stosowa─ç przycisków pod┼Ťwietlanych.

Maksymalny pr─ůd obci─ů┼╝enia
Pr─ůd styku podany w danych technicznych jest warto┼Ťci─ů maksymaln─ů i mo┼╝e podlega─ç ograniczeniom – wi─Öcej informacji. Je┼Ťli z przedstawionych informacji wynika, ┼╝e przeka┼║nik w urz─ůdzeniu jest niewystarczaj─ůcy zaleca si─Ö stosowa─ç zewn─Ötrzny element prze┼é─ůczaj─ůcy (np. stycznik) przystosowany do prze┼é─ůczania du┼╝ych pr─ůdów udarowych.


Pami─Ö─ç stanu
Wersja przeka┼║nika z liter─ů "M" posiada pami─Ö─ç pozycji styku, tzn. po za┼é─ůczeniu zasilania zostanie przywrócony stan przeka┼║nika jaki by┼é w momencie wy┼é─ůczenia zasilania.
