Electronic bistable impulse relay BIS-412-LED- 230 V

Electronic bistable impulse relay BIS-412-LED- 230 V

BIS-412-LED, 5908312598343

Product description

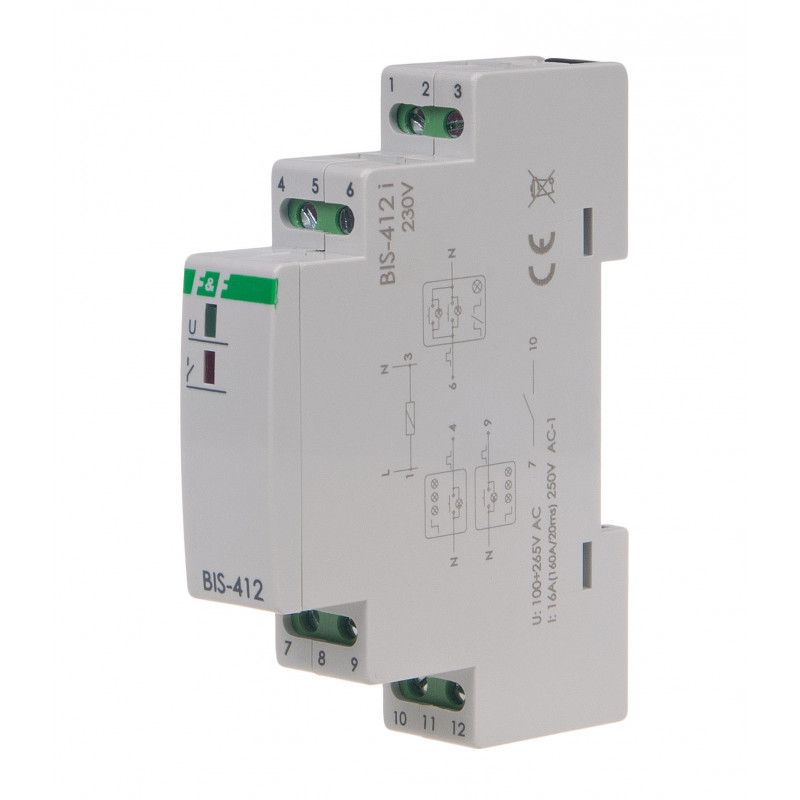

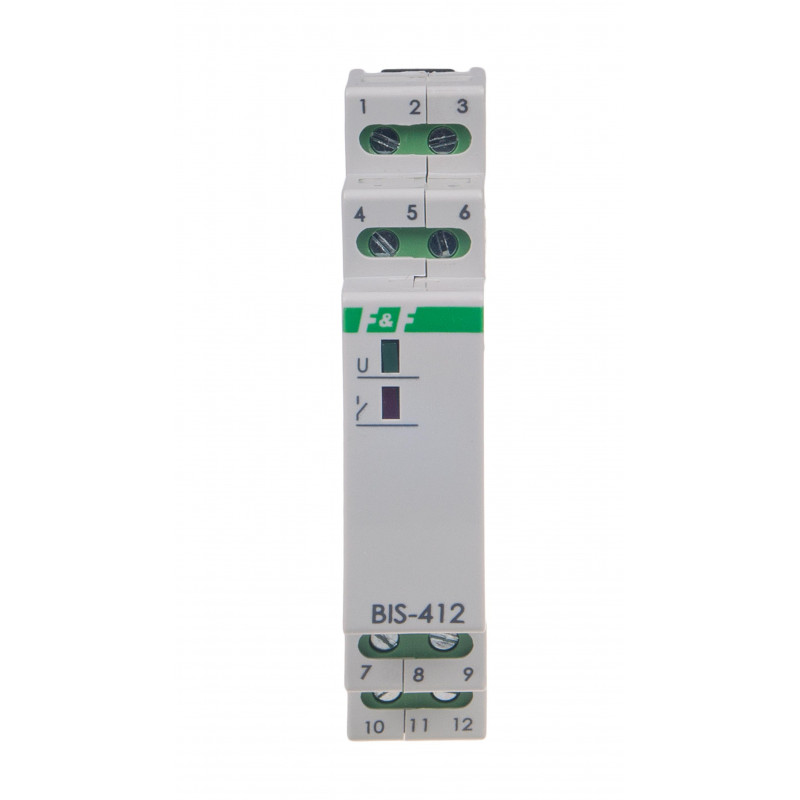

BIS-412 electronic bi-stable pulse relay is designed for operation in a group configuration.
Power supply 230 V AC. Maximum load 16 A (160A/20ms). On rail TH-35. Can be used with backlit buttons.
A single relay enables the activation and deactivation of the receiver controlled after each current pulse triggered by pushing a local control momentary push-button (bell-push). The group configuration enables the deactivation or activation of all receivers connected to individual relays by means of the central control push-buttons.

Functioning:
Local control
The receiver is activated after a current pulse that is triggered by pushing one optional momentary push-button  belonging to the local control group. The contact of the relay is switched to the 7-10 position. After a next current pulse, the receiver will be deactivated (the contact of the relay returns to the 7-12 position).
Central control
DEACTIVATE ALL - after a current pulse triggered by pushing the momentary push-button , all receivers will be deactivated (regardless of their status, i.e. deactivation or activation) that are controlled separately by individual relays. The contact in each relay will be switched to the 7-12 position.
ACTIVATE ALL - after a current pulse triggered by pushing the momentary push-button , all receivers will be activated (regardless of their status, i.e. deactivation or activation) that are controlled separately by individual relays. The contact in each relay will be switched to the 7-10 position.



Attention!
The BIS-412i 230V is compatible with bell pushes equipped with fluorescent lamps.

Power supply voltage165÷265 V AC
Local controlYES
Maximum AC-1 load current16 A (120 A/20 ms)
The executive elementrelay
Contact configuration1 × NO
Separation of the contactYES
Resistance to shock currentsYES
Number of channels1
functionalitygroup (hotel)
Delay of operation0,1 ÷ 0,2 s
Control pulse currentless than 5 mA
Cooperation with illuminated buttonsYES
Status memory after power failureNO
Activate on timeNO
Dedicated central control inputsYES
Radio controlNO
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Power consumption0,7 W
Working temperature-25 ÷ 50 °C
Dimensions1 module (18 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20




Przyciski podświetlane
Z uwagi na niskie napiÄ™cie zasilania nie należy stosować przycisków podÅ›wietlanych.

Maksymalny prąd obciążenia
PrÄ…d styku podany w danych technicznych jest wartoÅ›ciÄ… maksymalnÄ… i może podlegać ograniczeniom – wiÄ™cej informacji. JeÅ›li z przedstawionych informacji wynika, że przekaźnik w urzÄ…dzeniu jest niewystarczajÄ…cy zaleca siÄ™ stosować zewnÄ™trzny element przeÅ‚Ä…czajÄ…cy (np. stycznik) przystosowany do przeÅ‚Ä…czania dużych prÄ…dów udarowych.


Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.

Odporność na prądy udarowe
W urzÄ…dzeniu zastosowany zostaÅ‚ przekaźnik typu "inrush" charakteryzujÄ…cy siÄ™ dużą wytrzymaÅ‚oÅ›ciÄ… na krótkotrwaÅ‚e prÄ…dy udarowe powstajÄ…ce np. w momencie zaÅ‚Ä…czenia lamp LED, Å›wietlówek ESL, tranformatorów elektronicznych, lamp wyÅ‚adowczych itp.
