Electronic bistable impulse relay BIS-413-LED- 24V

Electronic bistable impulse relay BIS-413-LED- 24V

BIS-413-LED-24V, 5908312598701

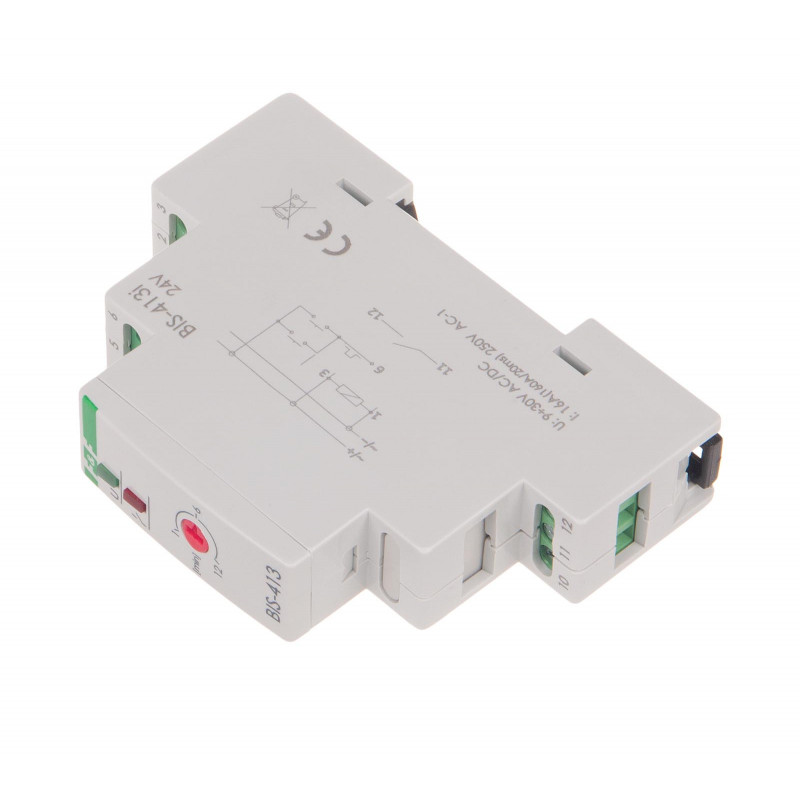

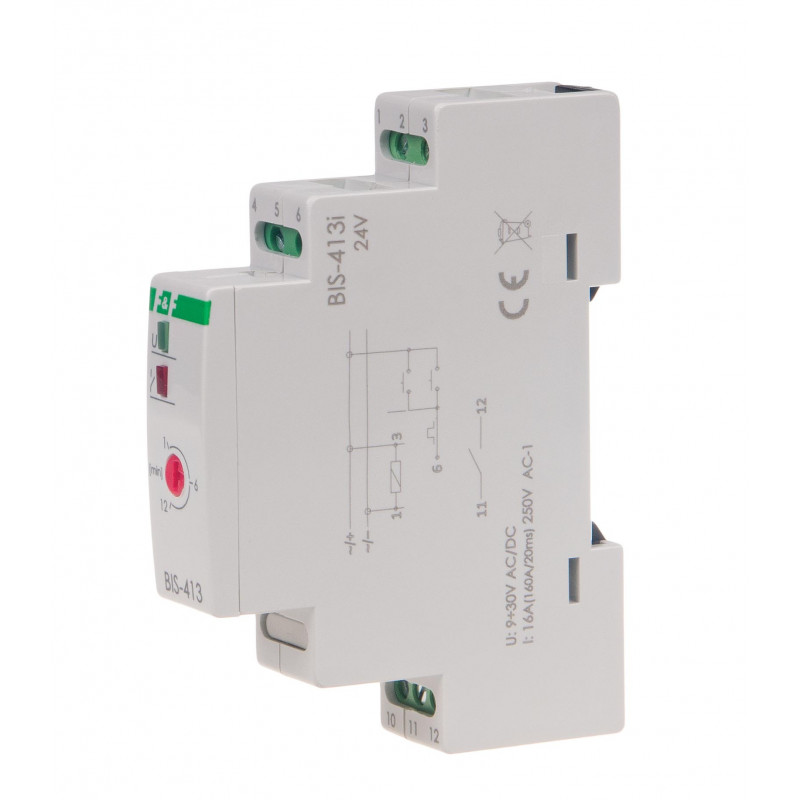

Product description

Electronic bi-stable pulse relays enables the user to actuate lighting or other devices from various locations by means of control buttons in parallel connection.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
Power supply 24 V AC. Maximum load 16 A (160 A/20 ms). On TH-35 mm rail. With timing switch.

Functioning
The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time. Long press, lasting a minimum of 2 seconds, press the button will attach the contact permanently in continuous lighting mode until another pulse has been sent to deactivate the relay.







The relay does not “memorize” the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.





Power supply voltage 9÷30 V AC/DC
Local control YES
Maximum AC-1 load current 16 A (120 A/20 ms)
The executive element relay
Contact configuration 1 × NO
Separation of the contact YES
Resistance to shock currents YES
Number of channels 1
functionality ON/OFFwith time switch
Delay of operation 0,1 ÷ 0,2 s
Control pulse current less than 1 mA
Cooperation with illuminated buttons NO
Status memory after power failure NO
Activate on time YES
Dedicated central control inputs NO
Radio control NO
Terminal pluggable terminal blocks 2,5 mm²
Tightening torque 0,4 Nm
Power consumption 0,7 W
Working temperature -25 ÷ 50 °C
Dimensions 1 module (18 mm)
Assembly on rail 35 mm
Ingress Protection Marking IP20
Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.


Pamięć stanu
Wersja przekaźnika z literą "M" posiada pamięć pozycji styku, tzn. po załączeniu zasilania zostanie przywrócony stan przekaźnika jaki był w momencie wyłączenia zasilania.
