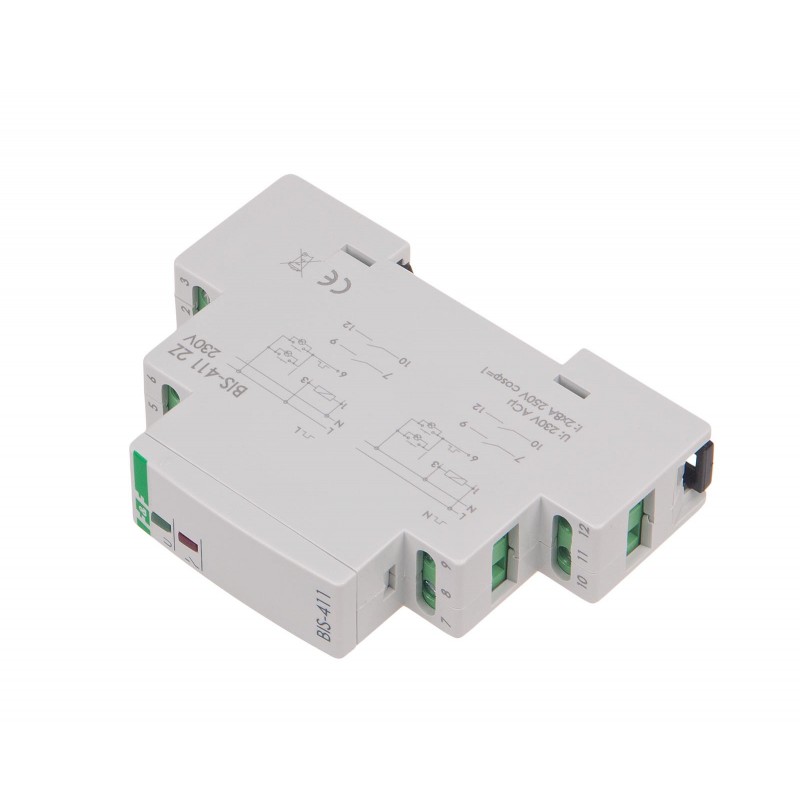

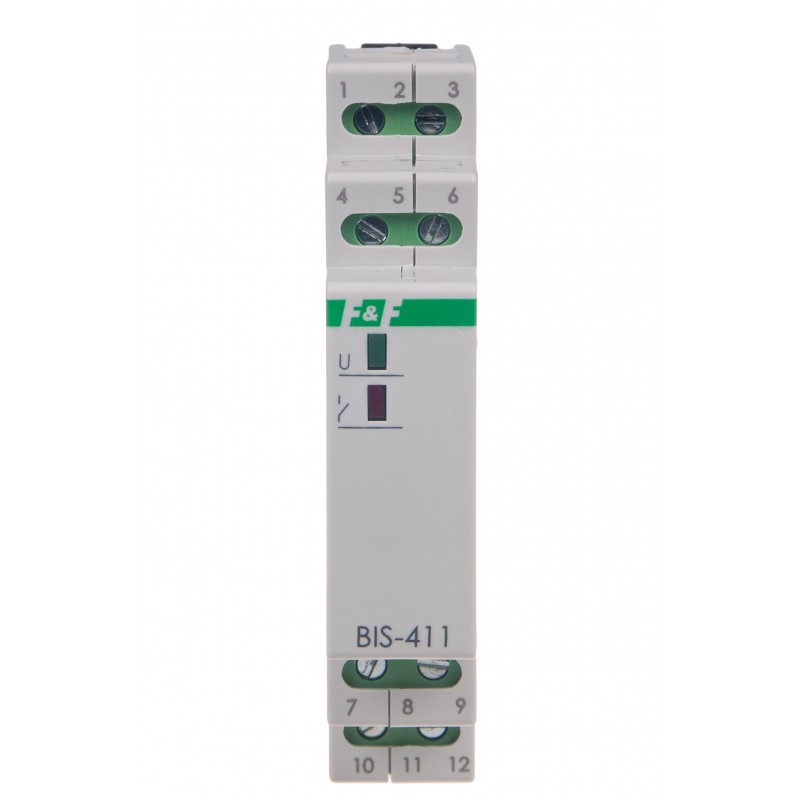

Electronic bistable impulse relay BIS-411 2Z

Electronic bistable impulse relay BIS-411 2Z

BIS-411-2Z, 5908312594567

Product description

Electronic bi-stable pulse relays enables the user to actuate lighting or other devices from various locations by means of control buttons in parallel connection.
Power supply 230 V AC. Maximum load 16 A. 2×NO contacts. On TH-35 mm rail. Can be used with backlit buttons.

Functioning
The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time.
The relay does not “memorize” the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.


Attention!
The BIS-411 2Z 230V is compatible with bell pushes equipped with fluorescent lamps.

Power supply voltage165÷265 V AC
Local controlYES
Maximum AC-1 load current8 A
The executive elementrelay
Contact configuration2 × NO
Separation of the contactYES
Resistance to shock currentsNO
Number of channels1
functionalityON/OFF
Delay of operation0,1 ÷ 0,2 s
Control pulse currentless than 5 mA
Cooperation with illuminated buttonsYES
Status memory after power failureNO
Activate on timeNO
Dedicated central control inputsNO
Radio controlNO
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Power consumption0,7 W
Working temperature-25 ÷ 50 °C
Dimensions1 module (18 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20
Przyciski podświetlane
W przypadku podłączenia zbyt dużej ilości przycisków podświetlanych może dochodzić do samoistnego załączania oświetlenia lub załączenia oświetlenia na stałe

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.


Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.
