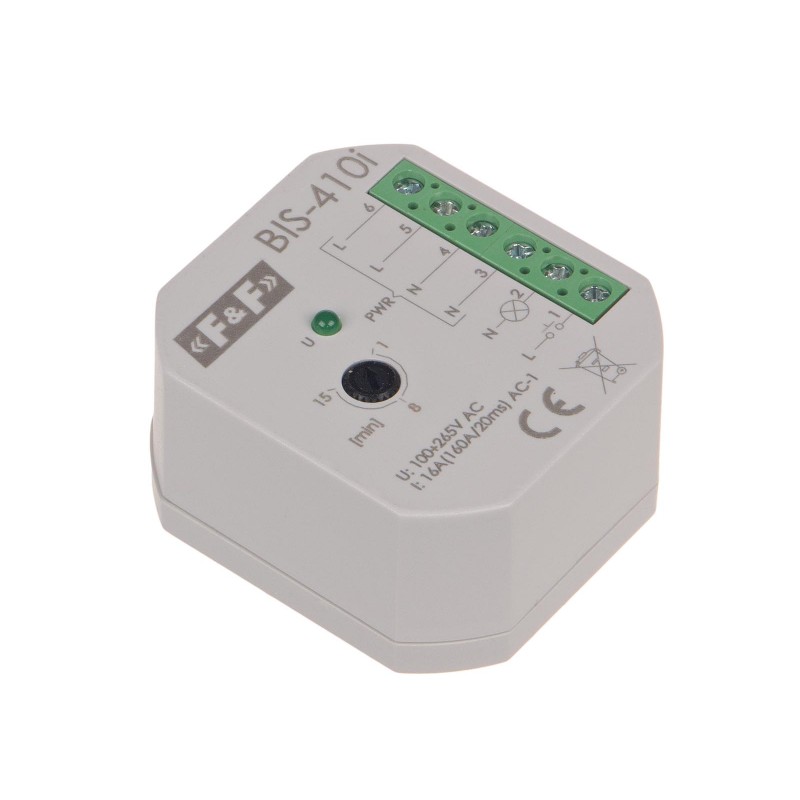

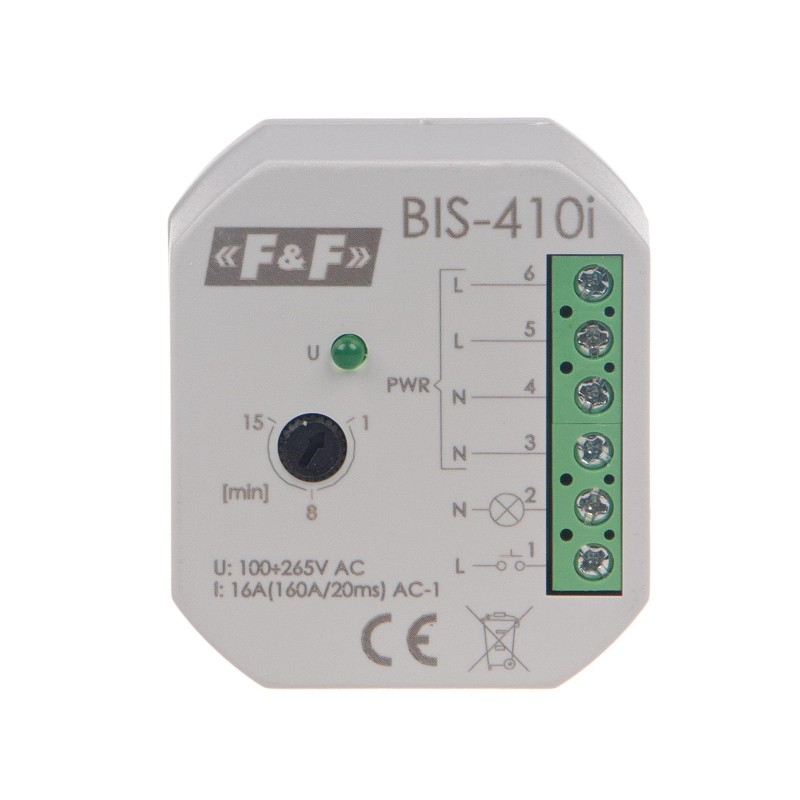

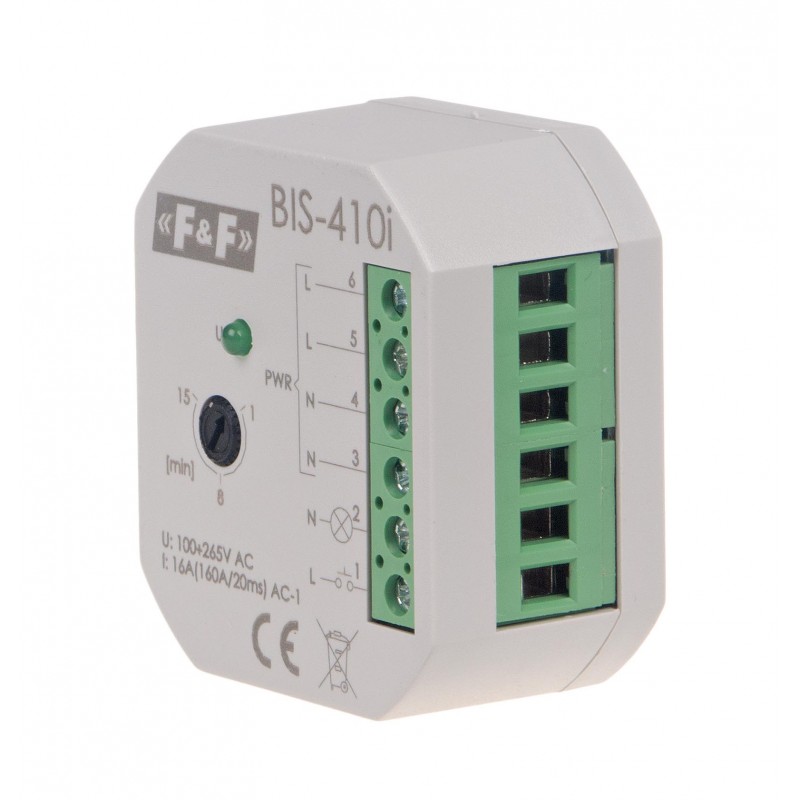

BIS-410-LED, 5908312598312
Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
With switch off timer. Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). To under plaster box Ø60. Can be used with backlit buttons.
Functioning
The receiver is followed by current pulse triggered by pressing any (bell) connected to the relay. Turning off the receiver will be the next pulse or automatically turn off after a preset time. Longer duration (minimum 2 seconds) pressing the relay instantaneous permanently. It will cut out after a momentary button is pressed again (or after a power failure).
Note!
BIS-410 and BIS-410i can be used with illuminated buttons.
Power table
The above data are indicative and will depend to a large extent on the design of a specific receiver (especially for LED bulbs, energy saving lamps, electronic transformers and pulse power supplies), switching frequency and working conditions.
Availability date:
Power supply voltage | 165÷265 V AC |
Local control | YES |
Maximum AC-1 load current | 16 A (120 A/20 ms) |
The executive element | relay |
Contact configuration | 1 × NO |
Separation of the contact | NO |
Resistance to shock currents | YES |
Number of channels | 1 |
functionality | ON/OFFwith time switch |
Delay of operation | 0,1 ÷ 0,2 s |
Control pulse current | less than 5 mA |
Cooperation with illuminated buttons | YES |
Status memory after power failure | NO |
Turn-off time | 1÷15 min. |
Activate on time | YES |
Dedicated central control inputs | NO |
Radio control | NO |
Terminal | pluggable terminal blocks 2,5 mm² |
Tightening torque | 0,4 Nm |
Power consumption | 0,7 W |
Working temperature | -25 ÷ 50 °C |
Dimensions | Ø54 (48×43 mm), wysokość: 25 mm |
Assembly | in a flush-mounted box Ø60 |
Ingress Protection Marking | IP20 |
