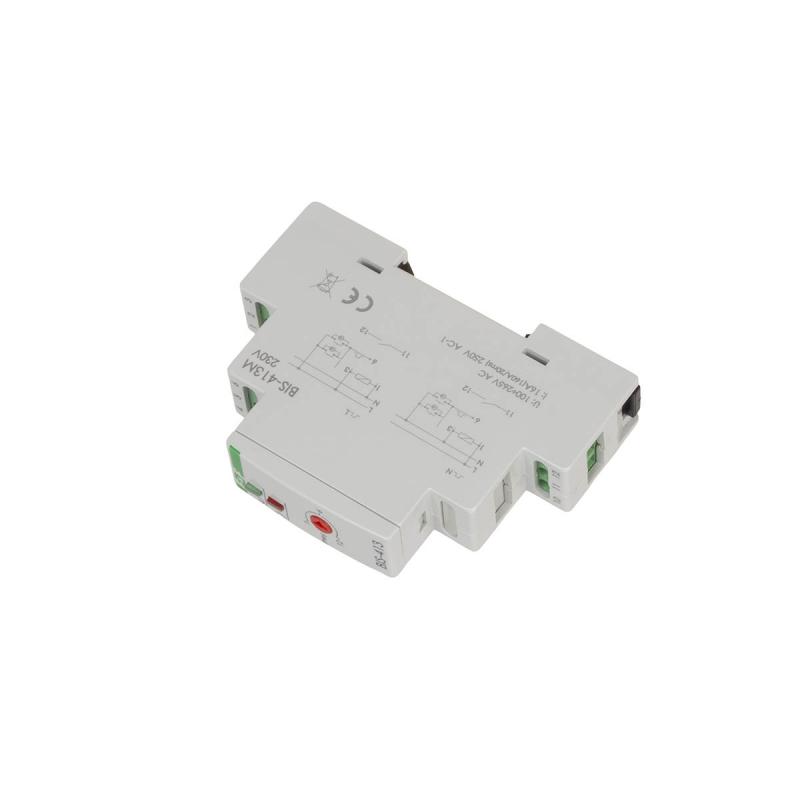

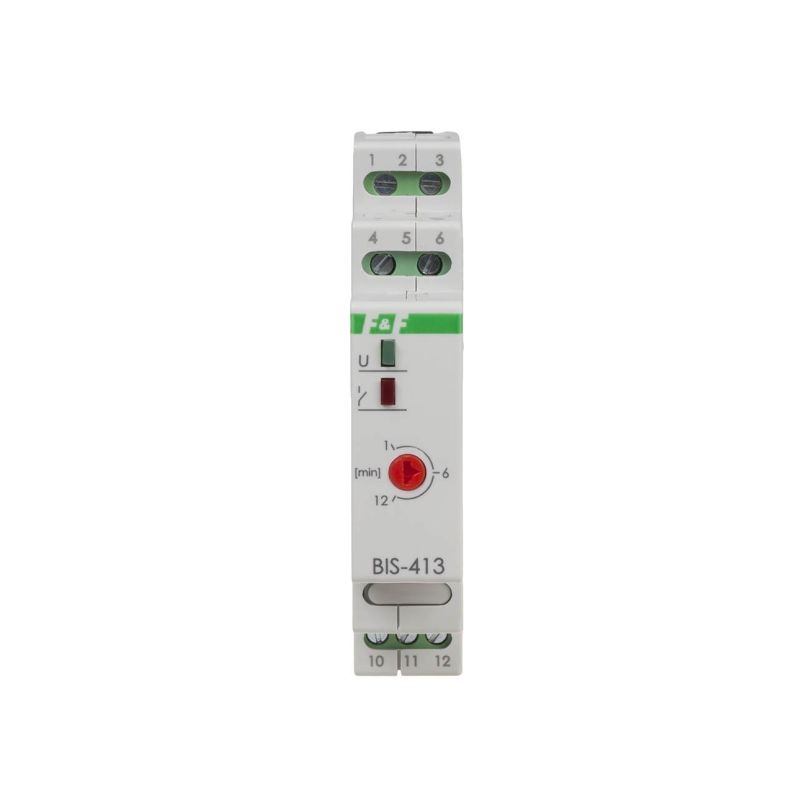

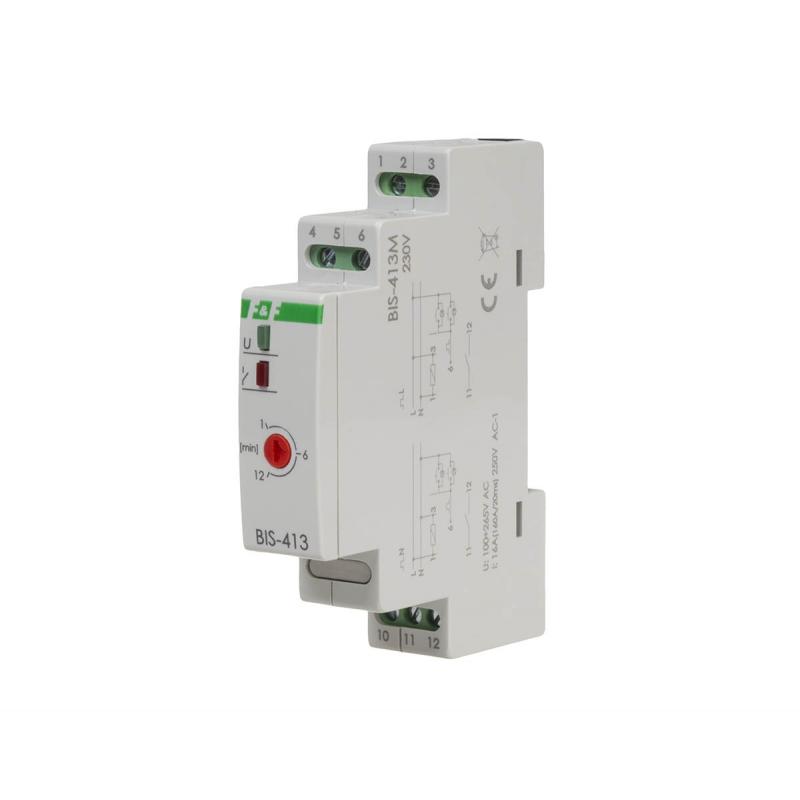

Electronic bistable impulse relay BIS-413M

View larger

Electronic bistable impulse relay BIS-413M


Electronic bi-stable pulse relays enables the user to actuate lighting or other devices from various locations by means of control buttons in parallel connection.
Power supply 230 V AC. Maximum load 16 A. On TH-35 mm rail. With timing switch. With the memory of the contact position. Can be used with backlit buttons.

The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time. Long press, lasting a minimum of 2 seconds, press the button will attach the contact permanently in continuous lighting mode until another pulse has been sent to deactivate the relay.


The relay does not ÔÇťmemorizeÔÇŁ the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.

BIS-413M 230 V is compatible with bell pushes equipped with fluorescent lamps.

Power supply voltage165├Ě265 V AC
Local controlYES
Maximum AC-1 load current16 A
The executive elementrelay
Contact configuration1 ├Ś NO/NC
Separation of the contactYES
Resistance to shock currentsNO
Number of channels1
functionalityON/OFFwith time switch
Delay of operation0,1 ├Ě 0,2 s
Control pulse currentless than 5 mA
Cooperation with illuminated buttonsYES
Status memory after power failureYES
Turn-off time1├Ě12 min.
Activate on timeYES
Dedicated central control inputsNO
Radio controlNO
terminalscrew terminals 2,5 mm┬▓
Tightening torque0,4 Nm
Power consumption0,8 W
Working temperature-25 ├Ě 50 ┬░C
dimensions1 module (18 mm)
Assemblyon rail 35 mm
Level of securityIP20

Przyciski pod┼Ťwietlane
W przypadku pod┼é─ůczenia zbyt du┼╝ej ilo┼Ťci przycisków pod┼Ťwietlanych mo┼╝e dochodzi─ç do samoistnego za┼é─ůczania o┼Ťwietlenia lub za┼é─ůczenia o┼Ťwietlenia na sta┼ée

Maksymalny pr─ůd obci─ů┼╝enia
Pr─ůd styku podany w danych technicznych jest warto┼Ťci─ů maksymaln─ů i mo┼╝e podlega─ç ograniczeniom – wi─Öcej informacji. Je┼Ťli z przedstawionych informacji wynika, ┼╝e przeka┼║nik w urz─ůdzeniu jest niewystarczaj─ůcy zaleca si─Ö stosowa─ç zewn─Ötrzny element prze┼é─ůczaj─ůcy (np. stycznik) przystosowany do prze┼é─ůczania du┼╝ych pr─ůdów udarowych.

Pami─Ö─ç stanu
Wersja przeka┼║nka z liter─ů "M" posiada pami─Ö─ç pozycji styku, tzn. po za┼é─ůczeniu zasilania zostanie przywrócony stan przeka┼║nika jaki by┼é w momencie wy┼é─ůczenia zasilania.
