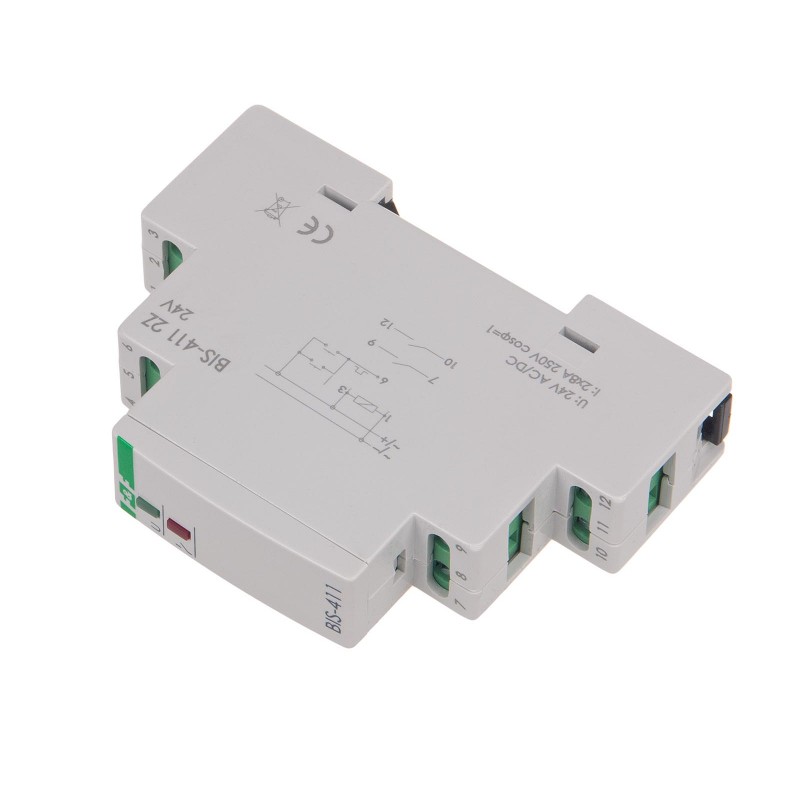

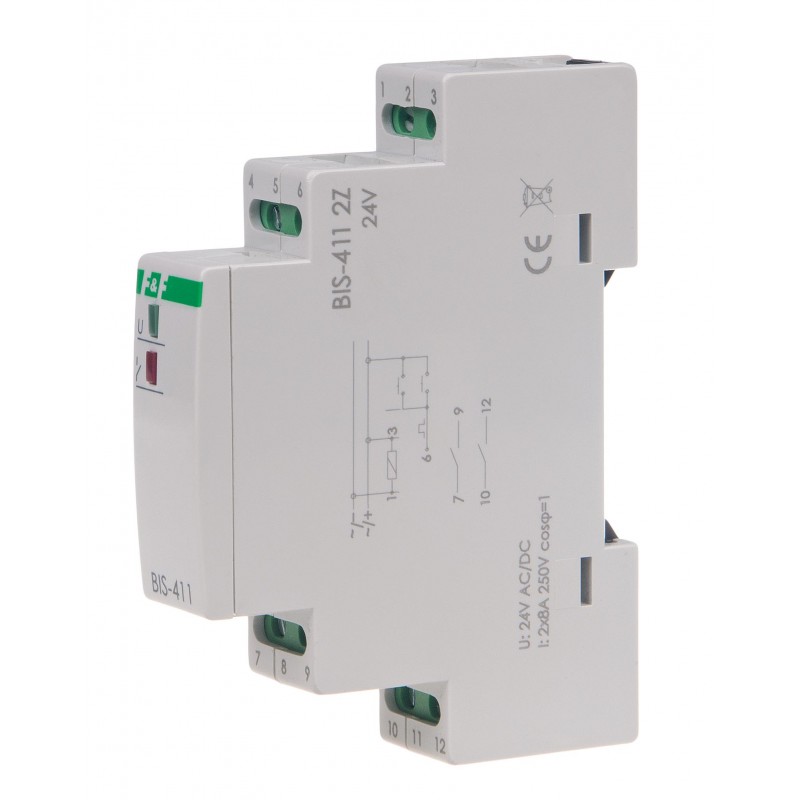

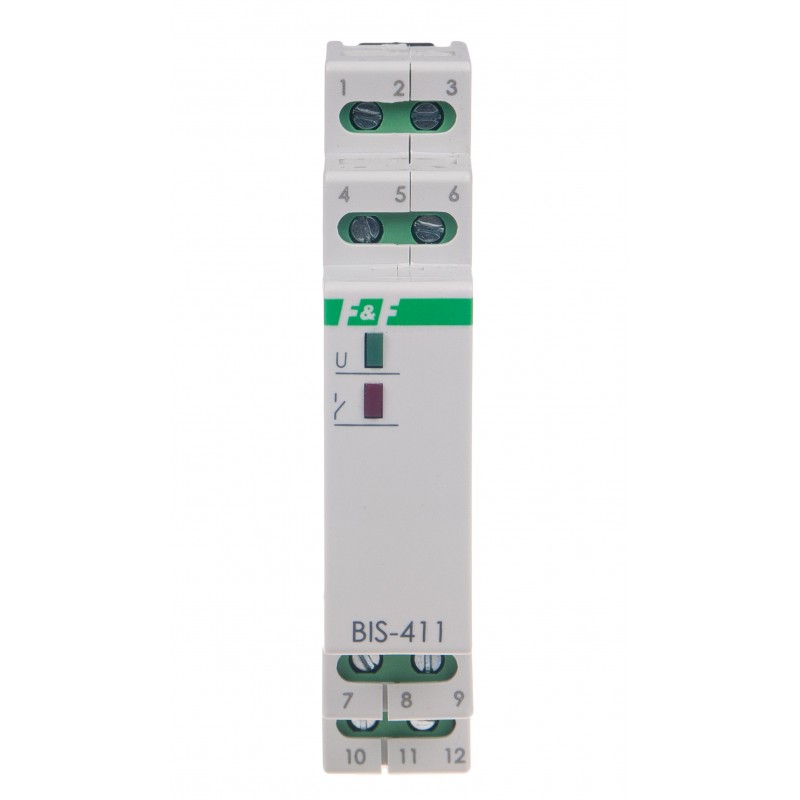

Electronic bistable impulse relay BIS-411 2Z 24 V

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Comparision table
Download

Electronic bistable impulse relay BIS-411 2Z 24 V

Reference: BIS-411-2Z-24V, EAN13: 5908312594574

Product description

Electronic bi-stable pulse relays enables the user to actuate lighting or other devices from various locations by means of control buttons in parallel connection.
Power supply 24 V AC. Maximum load 16 A. 2×NO contacts. On TH-35 mm rail.

Functioning
The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time.
The relay does not “memorize” the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.

Power supply voltage	9÷30 V AC/DC
Local control	YES
Maximum AC-1 load current	8 A
The executive element	relay
Contact configuration	2 × NO
Separation of the contact	YES
Resistance to shock currents	NO
Number of channels	1
functionality	ON/OFF
Delay of operation	0,1 ÷ 0,2 s
Control pulse current	less than 1 mA
Cooperation with illuminated buttons	NO
Status memory after power failure	NO
Activate on time	NO
Dedicated central control inputs	NO
Radio control	NO
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Power consumption	0,7 W
Working temperature	-25 ÷ 50 °C
Dimensions	1 module (18 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20

BIS-411 2Z 24 V manual (631.41k)

BIS-411 1R1Z - outline CAD dxf (386.27k)

BIS declaration CE 2024 (180.09k)

Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.
