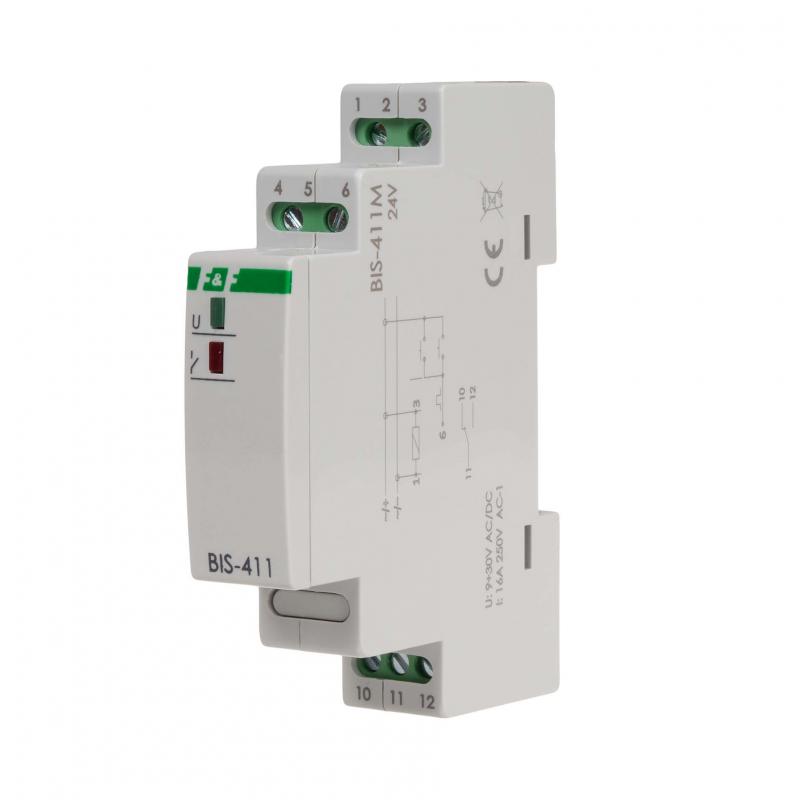

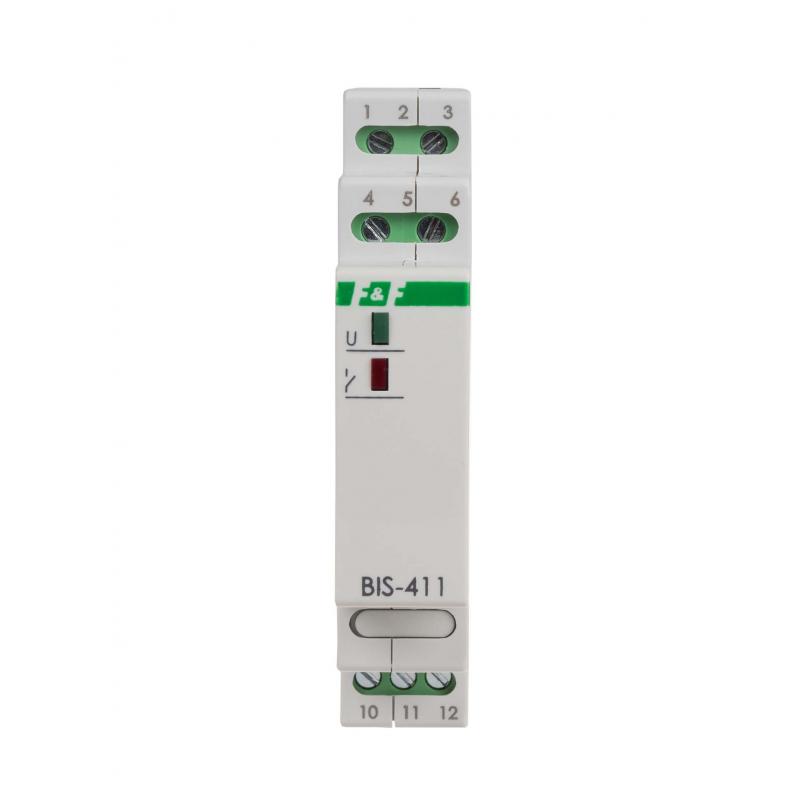

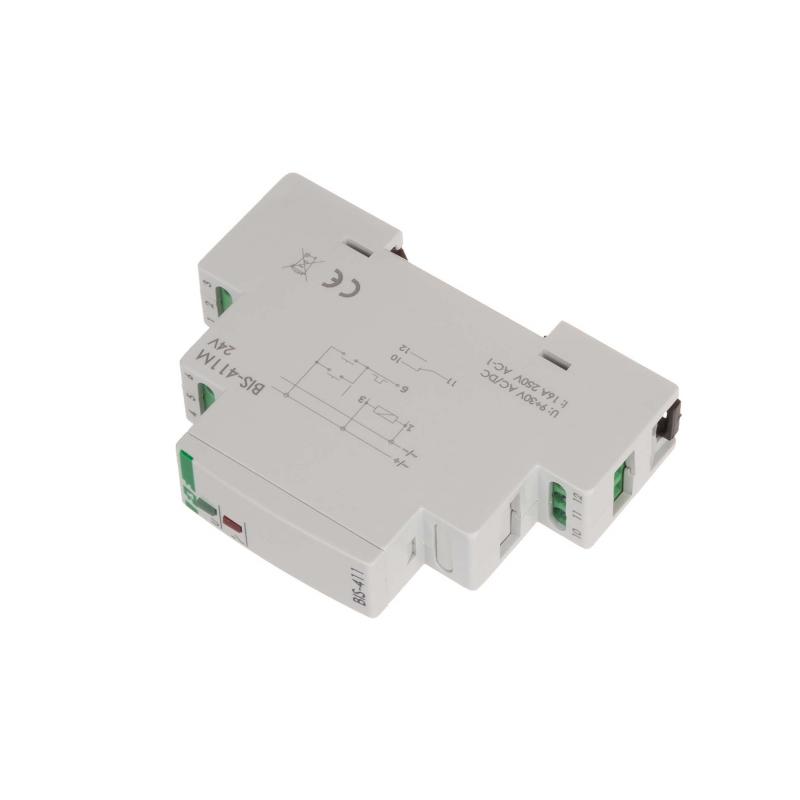

Electronic bistable impulse relay BIS-411M 24 V

Electronic bistable impulse relay BIS-411M 24 V

BIS-411M-24V, 5902431671499

Product description

Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Power supply 24 V AC. Maximum load 16 A. On TH-35 mm rail. With the memory of the contact position.



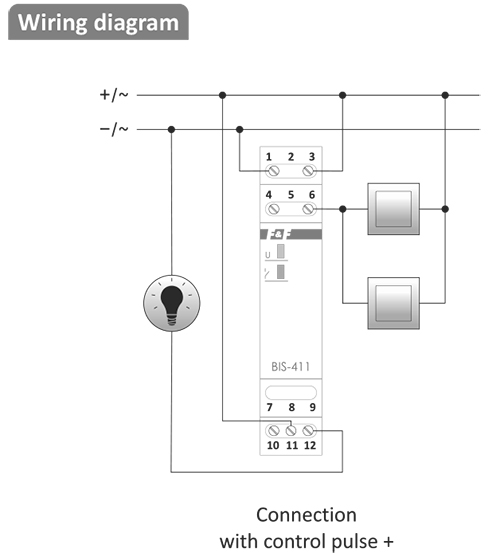

Functioning
The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time.
The relay does not “memorize” the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.


Power table




The above data are indicative and will depend to a large extent on the design of a specific receiver (especially for LED bulbs, energy saving lamps, electronic transformers and pulse power supplies), switching frequency and working conditions.


Power supply voltage9÷30 V AC/DC
Local controlYES
Maximum AC-1 load current16 A
The executive elementrelay
Contact configuration1 × NO/NC
Separation of the contactYES
Resistance to shock currentsNO
Number of channels1
functionalityON/OFF
Delay of operation0,1 ÷ 0,2 s
Control pulse currentless than 1 mA
Cooperation with illuminated buttonsNO
Status memory after power failureYES
Activate on timeNO
Dedicated central control inputsNO
Radio controlNO
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Power consumption0,7 W
Working temperature-25 ÷ 50 °C
Dimensions1 module (18 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.


Pamięć stanu
Wersja przekaźnka z literą "M" posiada pamięć pozycji styku, tzn. po załączeniu zasilania zostanie przywrócony stan przekaźnika jaki był w momencie wyłączenia zasilania.
