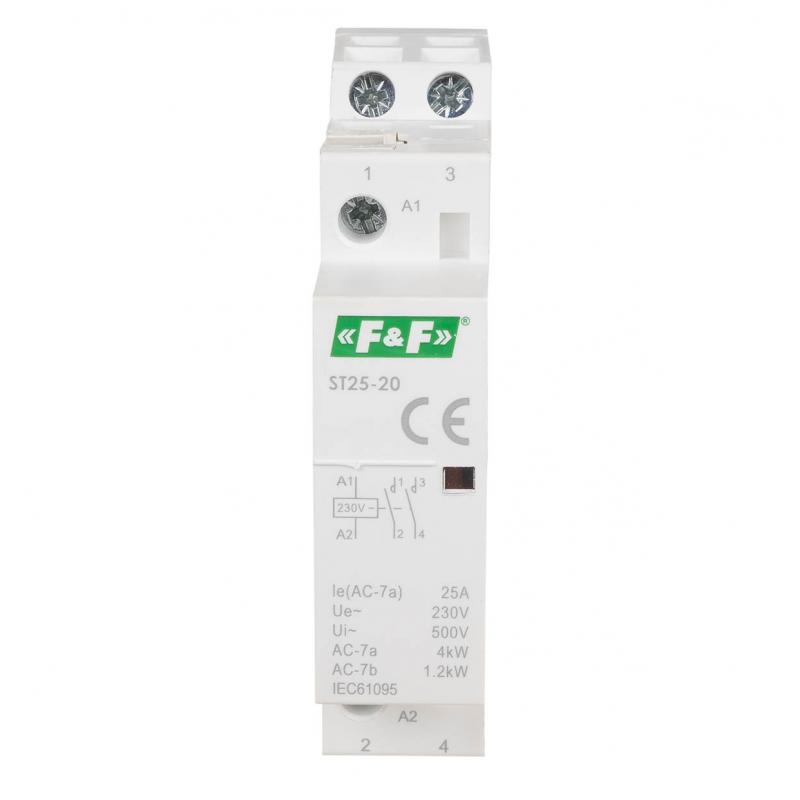

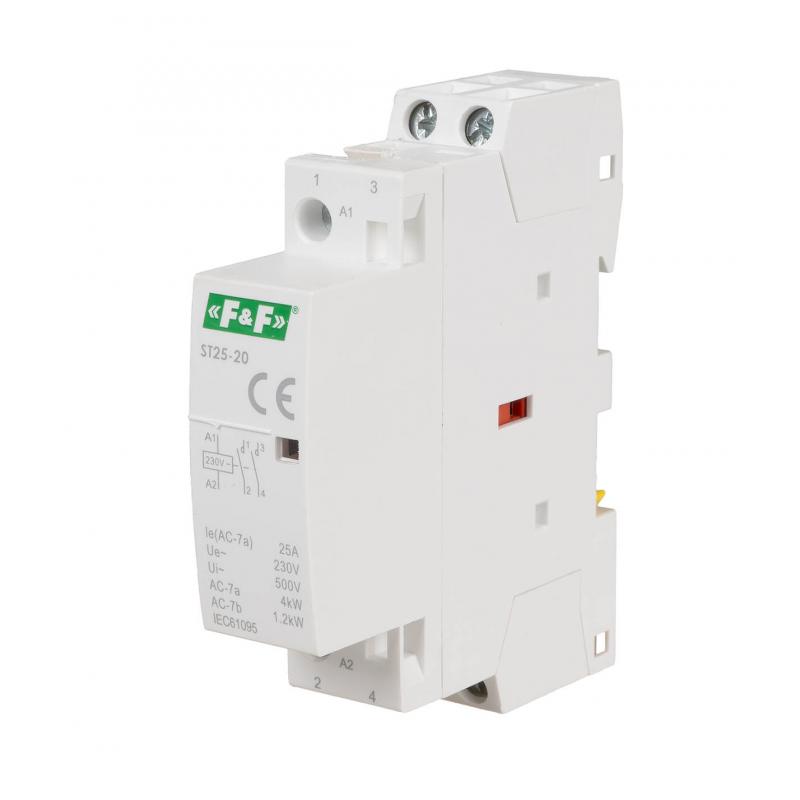

ST25-20 modular contactor
ST25-20 25 A modular contactor with a 230 V AC coil and two NO contacts. Designed for direct mounting on a 35 mm rail.
- Main circuit current: 25 A
- Coil supply voltage: 230 V AC
- Contacts: 2×NO
- Mounting: 35 mm rail
ST25-20 – 25 A modular contactor with a 230 V AC coil
The ST25-20 is a compact electromagnetic contactor designed for switching electrical circuits on and off. Applying voltage to the coil causes two normally open contacts to close, and when the voltage is removed, the contacts return to their rest position.

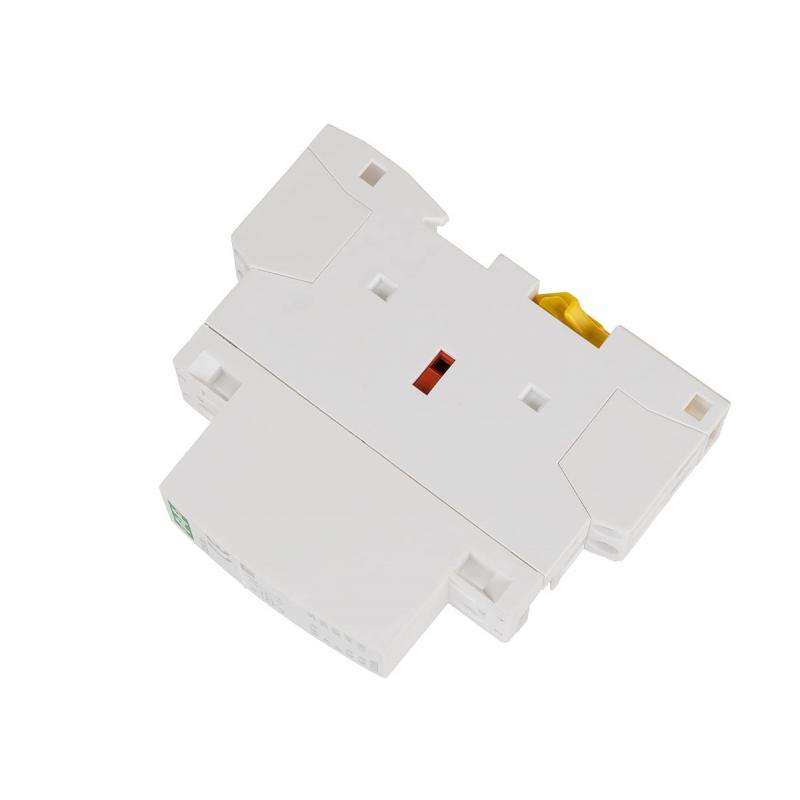

The single-module design helps to minimise the space required in the switchboard. The switching status is indicated by a marker on the housing.
See variant
- ST25-20 24 V AC – the same 25 A and 2×NO configuration with a 24 V AC coil.
- ST25-20 24 V DC – variant with a 24 V DC coil.
- ST25-20-M – 25 A, 2×NO variant with manual control.
- Coil supply voltage
- 230 V AC
- Contact configuration
- 2 × NO
- Main track current
- 25 A
- Switching power cat. AC1 (230V)
- 4 kW
- Switching power cat. AC3 (230V)
- 1,3 kW
- Standard number
- IEC 61095
- Electrical connection life
- 1x10⁵
- Mechanical connecting durability
- 1x10⁶
- Weight
- 106 g
- Screw terminals
- 4 mm²
- Isolation voltage
- 4 kV
- Power consumption
- 1,2 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
