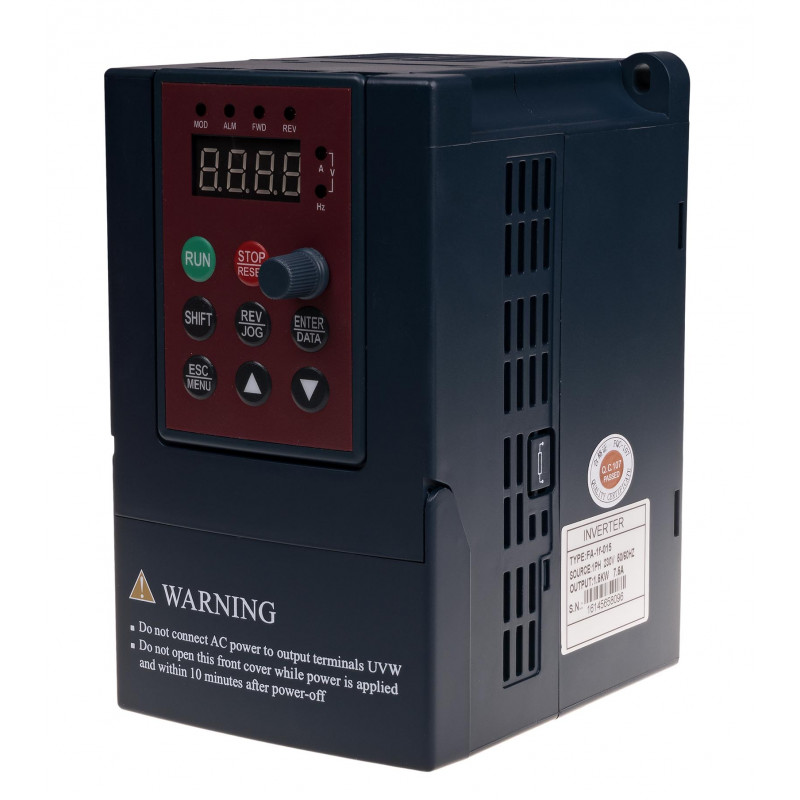

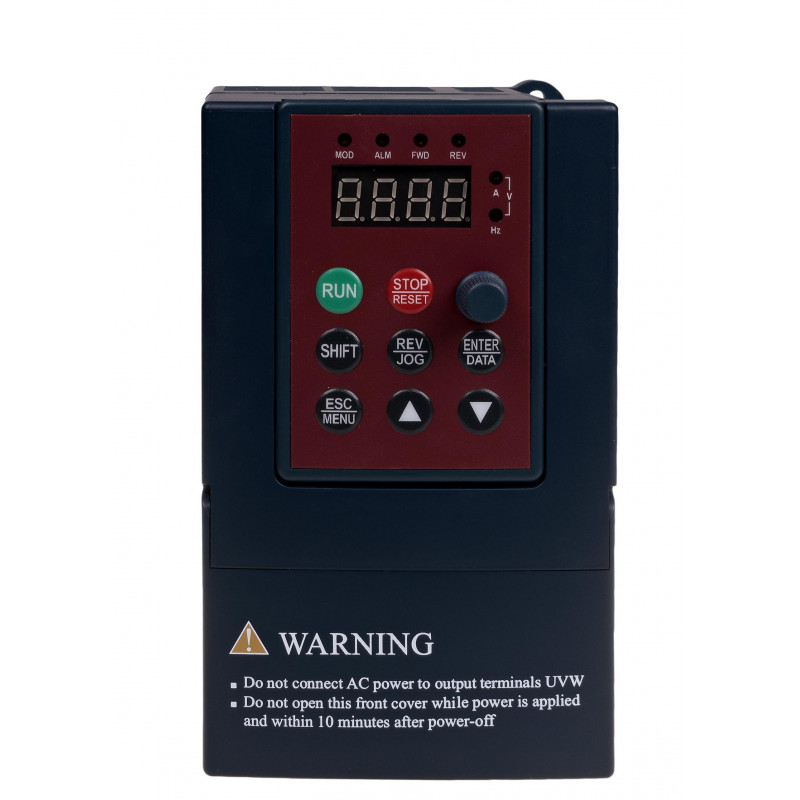

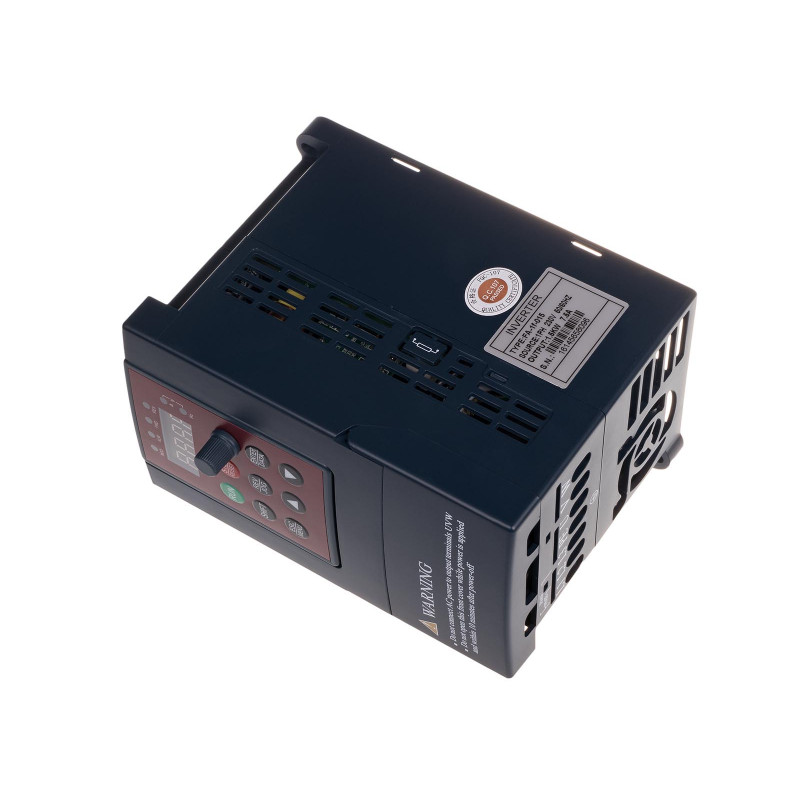

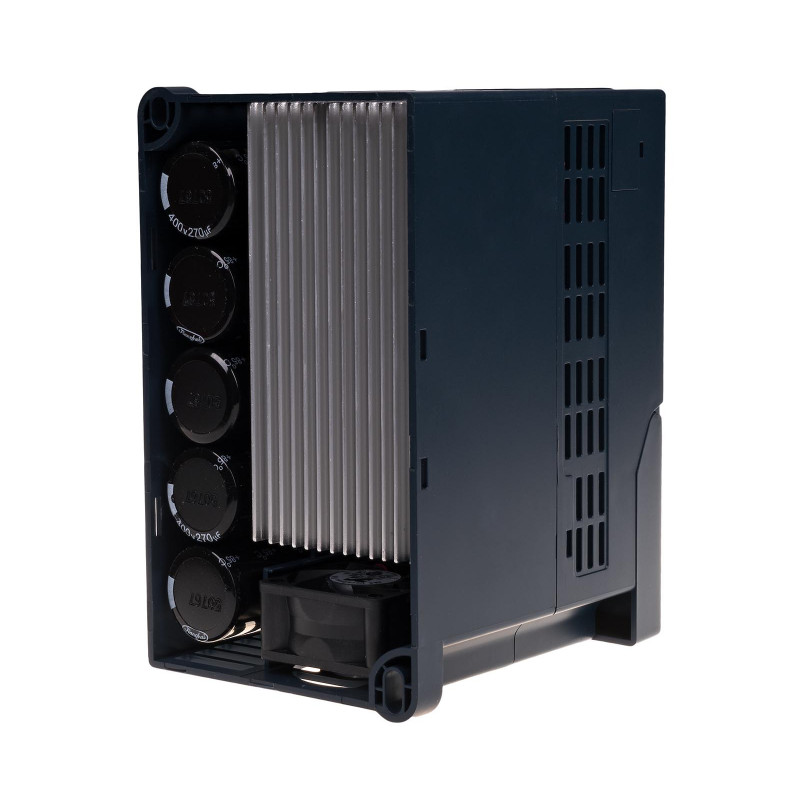

FA-1F004 inverter
For single-phase motors.
Input voltage 1 x 230 V
Output voltage 1 x 230 V
Maximum power: 0.4 kW
The FA-1f… series inverters are designed to control single-phase AC motors with an auxiliary starting capacitor.
Key features
* Ability to change the motor’s rotation direction
* Ability to adjust the rotational speed within a range of 0 to 400 Hz
* High torque at low rotational speeds
* Extensive flexibility in programming digital and analogue inputs and outputs
* PLC mode – the ability to programme up to seven operations to be carried out either once or in a cycle by the inverter. For each step, the speed, acceleration/deceleration time and duration can be specified

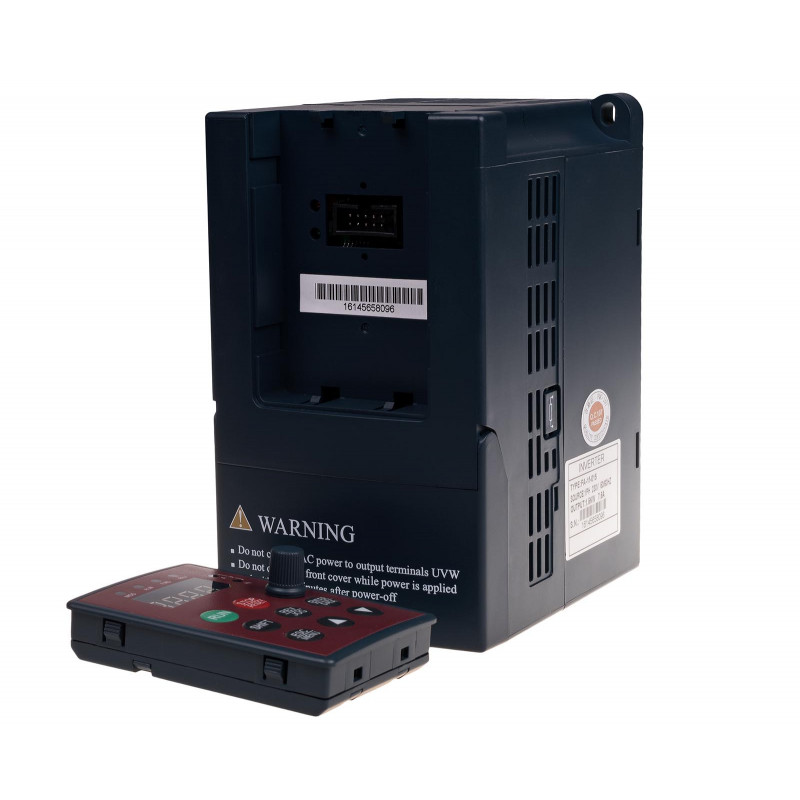

* Multifunctional operator panel that can be removed and connected externally to the inverter
Types
IMPORTANT!
Before connecting a single-phase motor, its internal connections must be altered to bypass the starting capacitor.
- Input voltage
- 1 x 230 V
- input power
- 1,1 kVA
- Output current
- 3 A
- Maximum engine power
- 0,4 kW
- Output voltage
- 1 x 230 V
- Number of digital inputs
- 7
- Inputs - control
- potential free
- Number of analog inputs
- 1
- Analogue inputs - current
- 1
- Number of analog outputs
- 1
- Analogue outputs - current
- 1
- Analogue outputs - voltage
- 1
- Number of relay outputs
- 1
- Number of transistor outputs
- 2
- Length L
- 112,5 mm
- Width W
- 85 mm
- Height H
- 141,5 mm
- Working temperature
- -10÷40°C
