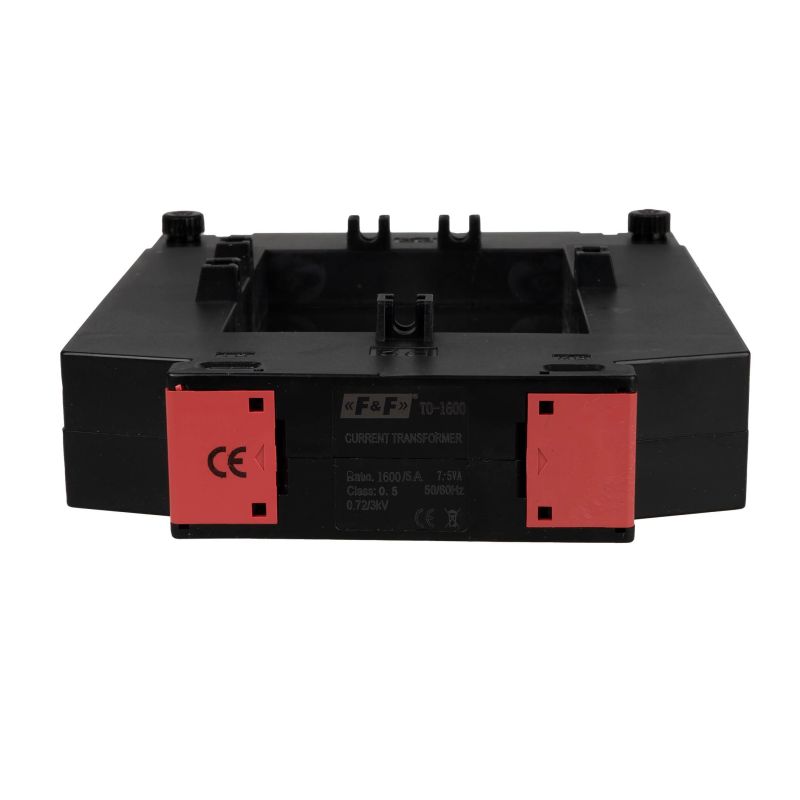

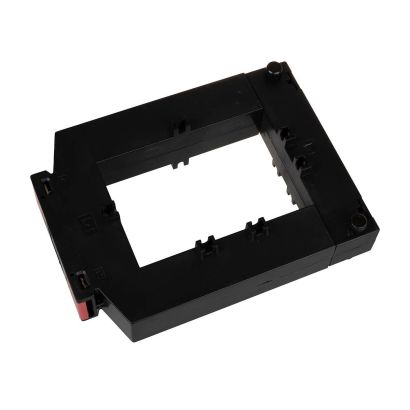

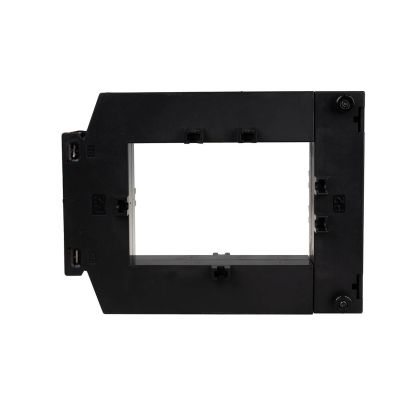

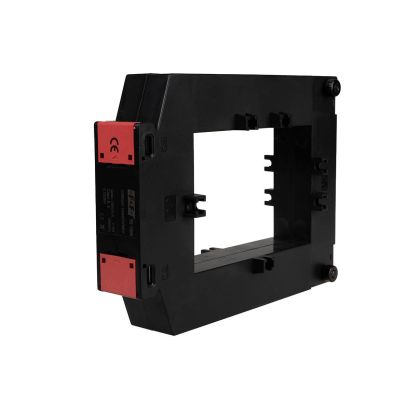

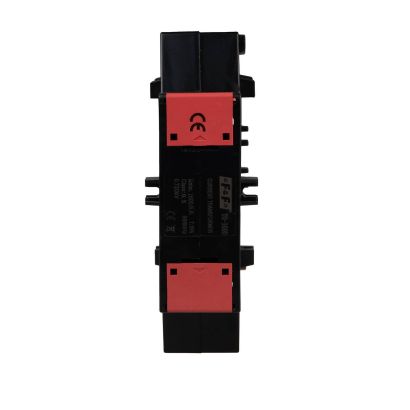

Current transformer TO-1600

Name: Current transformer TO-1600
Brand: Automatyka F&F
SKU: TO-16000-5
Rating: 5 (19 reviews)

Reference: TO-16000-5, EAN13: 5902431675442

Single phase.
With open core.
Gearbox 1600/5.
Power 7.5 VA.

Current transformers proportionally change large currents to lower values, adapted to the measuring ranges of control and measuring devices.

Operation of the TO-1600 single-phase open-core current transformer

The conductor with the current to be measured passes through the main opening of the transformer (P1/P2), which is equivalent to one winding of the primary winding. The terminals of the secondary winding S1 and S2 are connected to the terminals of the measuring circuit of the control or measuring device.
The ratio of the currents in the two windings is a constant quantity and is called the current ratio: IPn/ISn=N, where IPn is the rated primary current; ISn is the rated secondary current; N is the gear value. From the value of the current flowing through the secondary winding, the value of the current flowing through the primary winding can be determined : ISm*N=IPm, where ISm - secondary measured current; IPm - primary measured current.

Caution!
It is recommended to connect the secondary system with a wire of not less than 2.5 mm² in diameter.
Recommended earthing of terminal S2.
It is forbidden to disconnect the secondary circuit during operation of the transformer (possibility of high voltage resulting in paralysis of persons or damage to the equipment).

Reference TO-16000-5

Type: single-phase
Building: with open core
Transmission lp / ls: 1600/5
Class: 0,5
Power [VA]: 7.5 VA
Frequency: 50÷60 Hz
Maximum working voltage: 0,66 kV AC
Standard number: IEC 60044-1
Nominal secondary current Is: 5 A
Isolation breakdown voltage: 3 kV/1 min.
Security factor: FS ˂ 5
Connection S1 / S2: zaciski śrubowe 4 mm²
Tightening torque: 0,5 Nm
Working temperature: -15 ÷ 50°C
Mounting position: vertical/horizontal
Assembly: Front of control cabinet
Ingress Protection Marking: IP20

TI TO TP declaration CE 2025

(179.41KB)

Cable length calculation tables for selected F&F Filipowski transformers and meters

(61.81KB)

Type	Transmission	Class	Power	Dimensions [mm]									Weight
	Ip/Is		[VA]	A	B	C	D	E	F	G	H	I	[kg]
TO-100	100/5	1,0	1,5	21	32	51	90	112	34	45	40	32	0,78
TO-125	125/5	1,0	1,5	21	32	51	90	112	34	45	40	32	0,78
TO-150	150/5	1,0	1,5	21	32	51	90	112	34	45	40	32	0,78
TO-200	200/5	0,5	1,5	21	32	51	90	112	34	45	40	32	0,78
TO-250	250/5	0,5	1,5	21	32	51	90	112	34	45	40	32	0,78
TO-300	300/5	0,5	1,5	21	32	51	90	112	34	45	40	32	0,78
TO-400	400/5	0,5	1,5	50	80	78	116	146	33	33	35	33	0,9
TO-500	500/5	0,5	2,5	50	80	78	116	146	33	33	35	33	0,9
TO-600	600/5	0,5	2,5	50	80	78	116	146	33	33	35	33	0,9
TO-750	750/5	0,5	5,0	50	80	78	116	146	33	33	35	33	0,9
TO-1000	1000/5	0,5	5,0	50	80	78	116	146	33	33	35	33	0,9
TO-1250	1250/5	0,5	5,0	80	121	78	147	197,5	33	43,5	70	33	1,3
TO-1500	1500/5	0,5	7,5	80	121	78	147	197,5	33	43,5	70	33	1,3
TO-1600	1600/5	0,5	7,5	80	121	78	147	197,5	33	43,5	70	33	1,3
TO-2000	2000/5	0,5	10,0	80	121	78	147	197,5	33	43,5	70	33	1,3
TO-4000	4000/5	0,5	10,0	80	163	125	187	252	52	55	70	36	3,6
