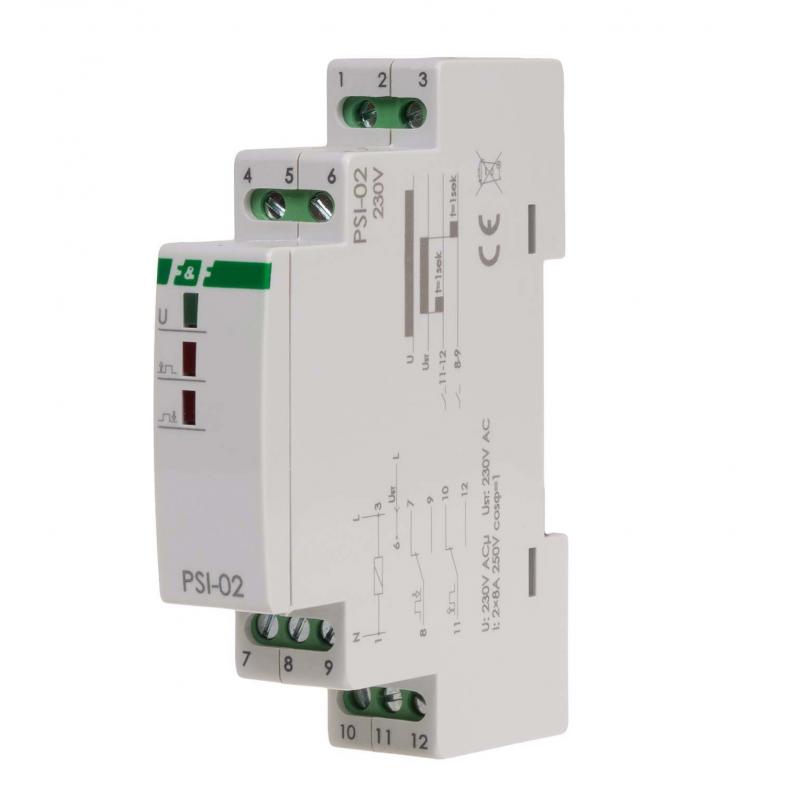

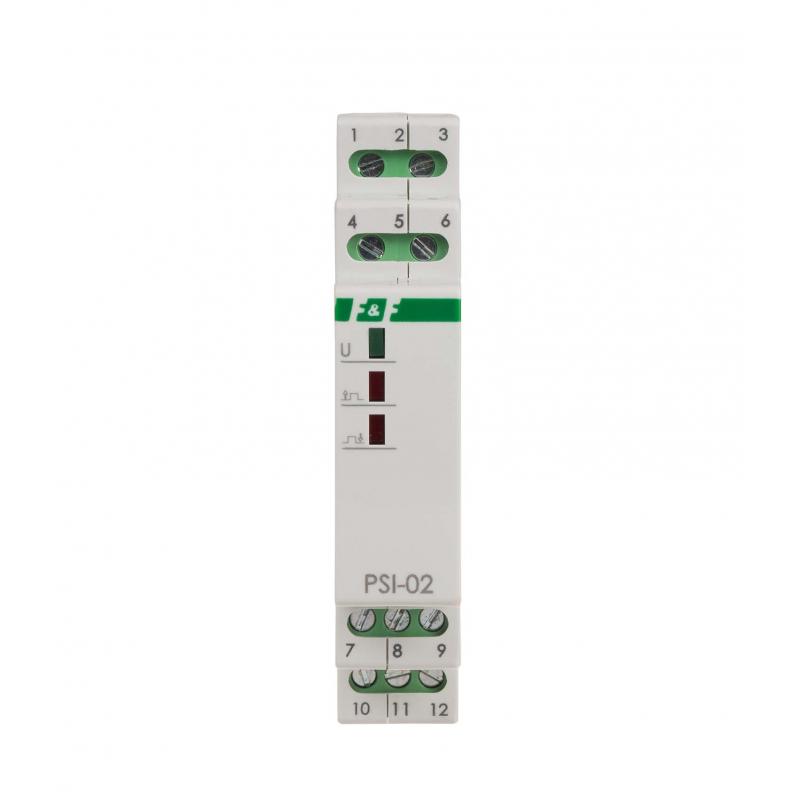

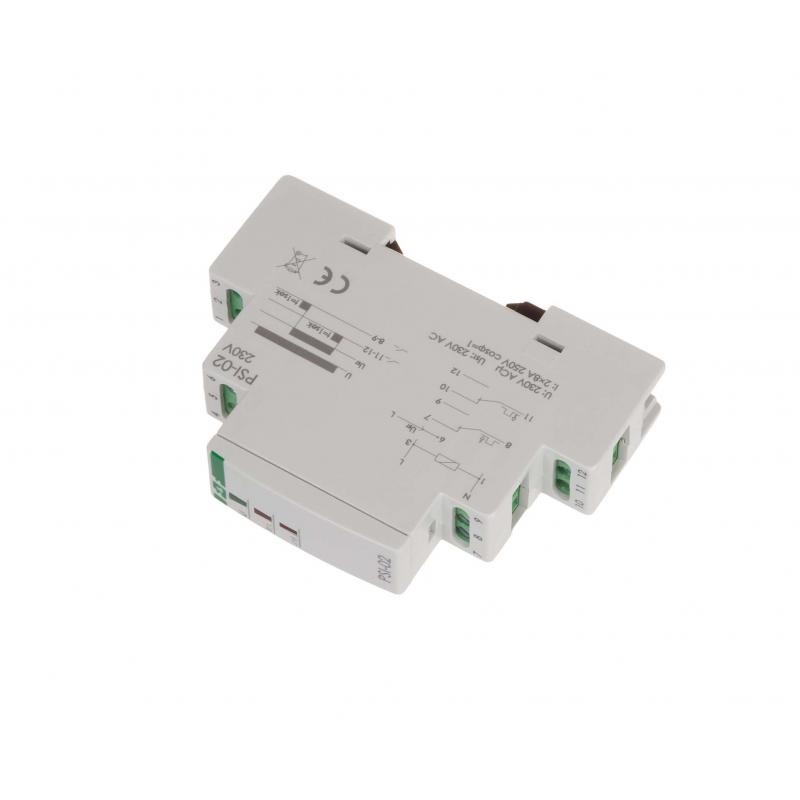

The PSI-02 converter serves to break up a control signal into single pulses required in automatic control systems.

Functioning
After the application of the control signal to the UST input (leading edge), the converter generates a pulse on output 12 (contact 11-12 closed for 1 second). After the decay of the control signal (trailing edge), the converter sends another pulse on output 9 (joint 8-9 closed for 1 second).





Example of use:
Roller blinds group control system [go to►].




Power supply voltage 230 V AC
The executive element 2 × relay
Maximum load current 2 × 8 A
Contact configuration 2 × NO/NC
Separation of the contact YES
Input signal 230 V AC
Time of output signals 1 s
Terminal pluggable terminal blocks 2,5 mm²
Tightening torque 0,4 Nm
Working temperature -25 ÷ 50 °C
Dimensions 1 module (18 mm)
Assembly on rail 35 mm
Ingress Protection Marking IP20
