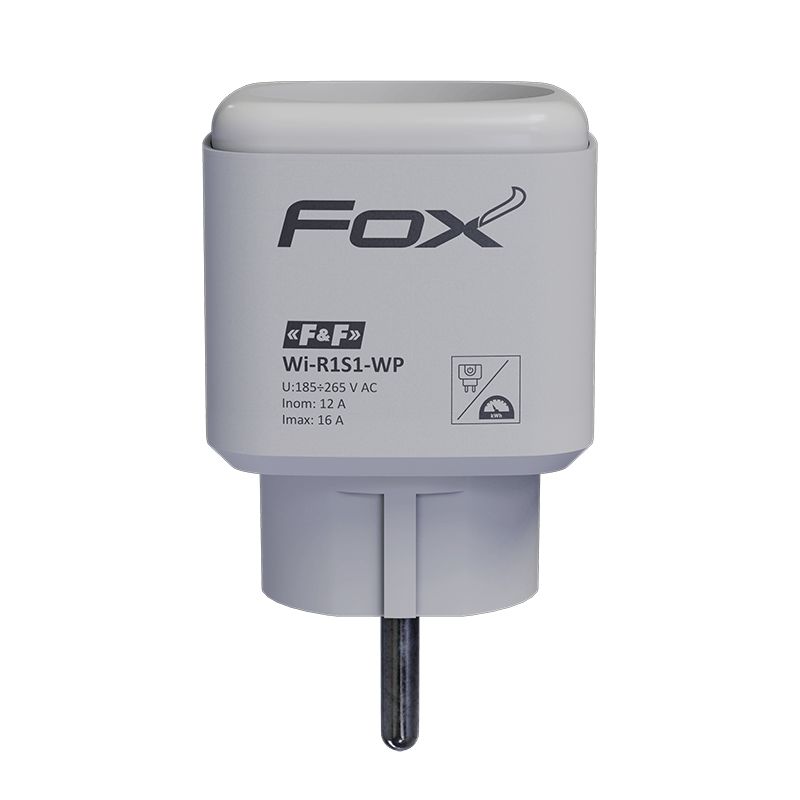

Wi-Fi relay SWITCH & ENERGY PLUG
Socket with network parameter monitoring function.
Function: Switching electrical receivers on and off with network parameter monitoring.
Installation: Like a plug into a socket.
The SWITCH & ENERGY PLUG Wi-Fi relay is installed like a standard plug in a socket. It allows you to switch on and monitor connected electrical devices via Wi-Fi – voltage, current, power, energy consumption. It can be used to operate most household appliances. It can handle a continuous load of up to 12A (2700W) and a momentary load of up to 16A (3600W).
Control via an application for phones and tablets
Remote access via Wi-Fi and the F&F cloud
Voice control option
Event programming using calendars
Features of the Wi-Fi relay
- Single-channel 230 V Wi-Fi relay with a rated load capacity of 12 A and a maximum load capacity of 16 A;
- Built-in button for manual switching on and off of the device;
- Network parameter monitoring: voltage, current, power (active and reactive), energy (active and reactive);
- Control of the receiver via a mobile application and timers;
- Built-in clock with power backup and its own copy of the operating programme. This allows the SWITCH&ENERGY Wi-Fi relay to function correctly even without a Wi-Fi connection;
- REST API support enables integration of the controller with other home automation systems;
- Built-in thermal protection;
- Convenient installation in a standard 230V socket
Operation at loads above the rated value depends on the temperature and operating conditions of the device. Long-term operation of the Wi-Fi relay at such high loads may cause the thermal protection to activate and disconnect the controlled circuits.
FOX - Wi-Fi control system
An easy-to-install and feature-rich wireless home automation system.
Application for Android devices
Application for iOS devices
Plan FOX system operations using online calendars
Use calendars to plan module operations for the day or evening. You decide when and which functions will be performed. You can schedule lighting to turn on at a set time or watering the garden at different times according to a set schedule.
You can also set the device operation plan directly in the FOX application.
Control with your voice thanks to Google Assistant
The voice control service is available in Polish. After a simple configuration, you can control individual devices by saying: "OK Google. Open all the blinds." "Turn on the blue light in the entertainment room," or when you leave the house: "OK Google. Turn off all devices."
| Links and interfaces | ||
|---|---|---|
| Telemetry | https://telemetron.fhome.cloud | |
| Password reset | https://fhome.cloud/#/public/users/password-reset | |
| RestAPI for Fox devices | http://fox-updater.fhome.pl/rest_api_doc/ | |
| RestAPI client in Python for Fox devices | https://github.com/fandf92/foxrestapiclient | |
| Passwords and device sharing | Download | |
| Google Calendar integration | Download | |
| iCloud Calendar Integration | Download | |
| Outlook calendar integration | Download | |
| Programmers | Download |
- Power supply voltage
- 165÷265 V AC
- Control input
- 85÷265 V AC
- Maksymalny prąd obciążenia (AC-1) - prąd znamionowy
- 12 A
- Maximum load current (AC-1)
- 16 A
- Humidity (non-condensing)
- ≤ 90%
- Radio frequency
- 2,4 GHz
- Transmission
- WI-FI
- Radio power (IEEE 802.11n)
- ≤ 20 dBm
- Receiver sensitivity
- -98 dBm
- Power consumption
- czuwanie: 1,2 W; praca (włączony przekaźnik): 2 W
- Working temperature
- 0÷45°C
- Dimensions
- 50x50 mm, h: 84 mm; h: 65 mm (without pins)
- Ingress Protection Marking
- IP20
