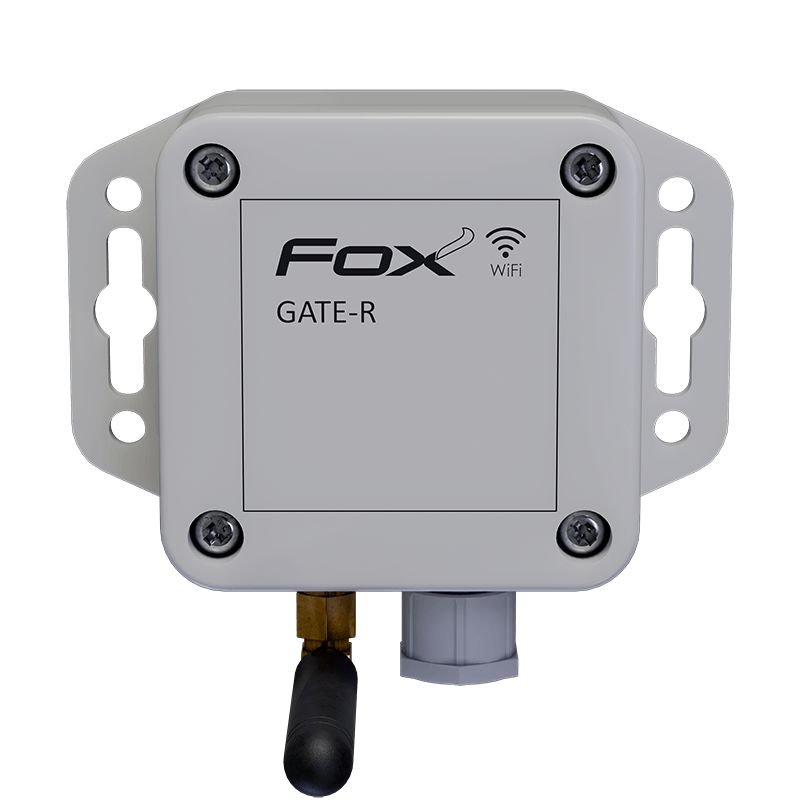

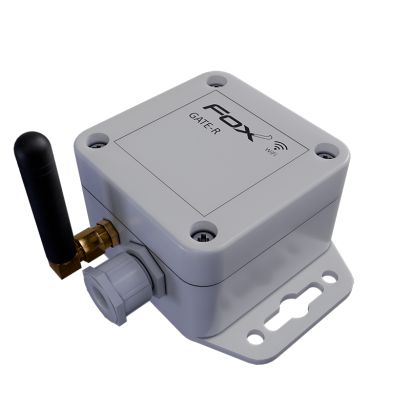

Gate controller with relay output GATE-R
Hermetic dual-channel Wi-Fi controller for gates with relay output, designed for integration with any automatic entrance and garage door drive system.
Function: Gate/door control
Installation: Surface-mounted
GATE-Ris a dual-channel Wi-Fi controller for two gates or a gate and a wicket with a relay output. It allows you to specify the statuses of devices as "gate closed" or "gate open". Due to the architecture of the Wi-Fi system, gate control can be performed via the cloud or only locally via Wi-Fi. To improve signal strength, the GATE Wi-Fi module is equipped with an external antenna. The hermetic housing of the Wi-Fi controller for gates guarantees uninterrupted operation of the controller outdoors. The GATE Wi-Fi controller supports various types of gates.
Control via an application for mobile phones and tablets
Remote access via Wi-Fi and the F&F cloud
Remote control of gate and wicket drives
How to open gates and wickets using Wi-Fi?
Features of the FOX Wi-Fi controller for gates and wickets
- Communication via home Wi-Fi network;
- Remote access to devices via the Polish F&F cloud;
- Integration with Google voice assistant and Google Home;
- Autonomous operation possible without a Wi-Fi connection;
- Convenient and free mobile application for Android and iOS systems.
- Designed for integration with any gate drive automation system or for direct control of electric strikes and locks;
- 2 separate relay outputs with a load capacity of up to 6 A per output;
- Ability to control one gate, two gates, a gate and a wicket, two wickets, etc.;
- Support for 2 separate local inputs enabling:
– opening/closing a gate or wicket;
– connecting gate or wicket opening/closing sensors; - Integration with Google Assistant – possibility of voice-activated gate opening, e.g. via Android Auto;
- REST API support enabling integration of the controller with external systems (including Home Assistant);
- External antenna for increased range;
- Hermetic housing suitable for outdoor installation.
FOX – Wi-Fi control system
An easy-to-install wireless home automation system with a wide range of features.
Application for Android devices
Application for iOS devices
| Links and interfaces | URL |
|---|---|
| Password reset | https://fhome.cloud/#/public/users/password-reset |
| RestAPI for Fox devices | http://fox-updater.fhome.pl/rest_api_doc/ |
| Integration with Google Calendar | Download |
| iCloud calendar integration | Download |
| Outlook Calendar Integration | Download |
| Programmers | Download |
- Power supply voltage
- 9÷30 V AC/DC
- Number of control inputs
- 2
- Outputs - number of outputs
- 2
- Control input
- 9÷30 V AC/DC; type: digital;
- Control pulse current
- less than 3 mA
- Resistive load
- 6 A
- Inductive or capacitive load
- 1,5 A
- Voltage at the contacts
- 250 V AC; 24 V DC
- Relay outputs typ
- 1 NO
- Radio frequency
- 2,4 GHz
- Transmission
- WI-FI
- Radio power (IEEE 802.11n)
- ≤ 20 dBm
- Receiver sensitivity
- -98 dBm
- Galvanic separation
- Yes
- Terminal
- spring terminals 0.2÷1.5 mm²
- Power consumption
- standby: 1.2 W: operation (output switched on): 2 W
- Working temperature
- -20÷55°C
- Dimensions
- housing: 91×61×40 mm; with antenna: 91×80×62 mm
- Assembly
- on wall
- Ingress Protection Marking
- IP65 - hermetic
