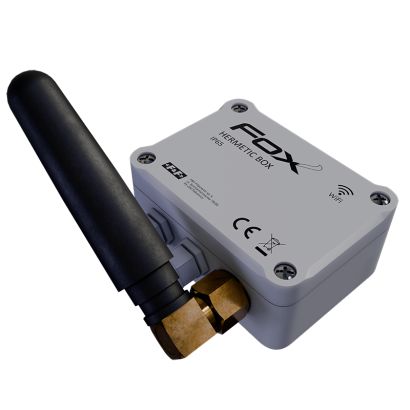

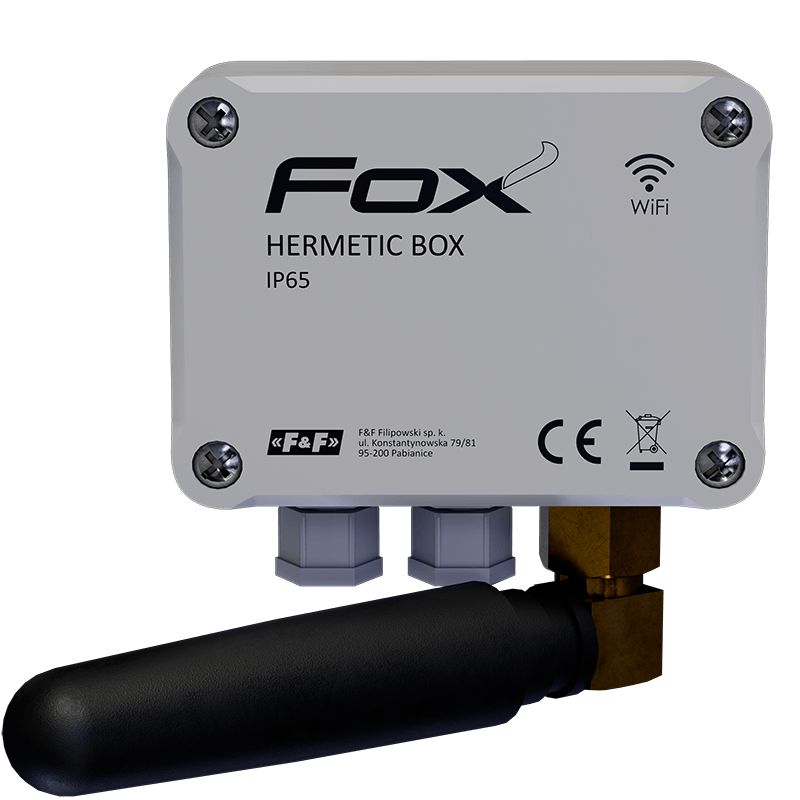

1-channel relay in hermetic housing Hermetic Box

1-channel relay in hermetic housing Hermetic Box

Wi-R1S1-H, 5902431675527

Product description

Single relay communication via home Wi-Fi network in hermetic housing suitable for outdoor installation.

Fox - sterowanie Wi-Fi logo
The HERMETIC BOX WI-FI relay allows you to turn on or turn off the connected electrical device. You can use it to run most home appliances. It allows you to control a single lighting circuit. The Wi-Fi-controlled relay works with classic and bell switches.

Ikony funkcje systemu FOX
Hermetic housing IP65
Ikony funkcje systemu FOX
Control by means of an application for phones and tablets
Ikony funkcje systemu FOX
Remote access via Wi-Fi and F&F cloud
Ikony funkcje systemu FOX
Voice control
Ikony funkcje systemu FOX
Programming using calendars
Ikony funkcje systemu FOX
Works with classic switches


  • Hermetic housing suitable for outdoor installation;
  • 1-channel 230 V relay with up to 16 A [AC-1]* load capacity and with isolated NO output contact;
  • Relay contact suitable for loads with high initial current (e.g. LED lighting), up to 120 A/20 ms;
  • Possibility of connecting a local control button and setting its function;
  • Receiver control via mobile app and timers;
  • Built-in timer with power backup and own copy of the operating programme guaranteeing correct operation also without Wi-Fi connection;
  • REST API support enabling integration of the controller also with other home automation systems;
  • Built-in thermal protection;
  • External antenna for extended operating range.

The maximum load capacity depends on the temperature and operating conditions of the unit. Prolonged operation at high load may lead to tripping of the thermal protection and disconnection of the controlled circuits.

System sterowania przez Wi-Fi - moduł Switch&Energy

FOX - Wi-Fi control system

Easy to install and rich in possibilities, wireless home automation system.

To control devices, the FOX system uses a free mobile application, which is available for devices with iOS and Android systems.
The application allows you to manage the installed modules in a simple and intuitive way. Thanks to the use of the home Wi-Fi network and the F&F cloud, you have the ability to constantly control devices at home from anywhere in the world with Internet access.
If you do not want to control your Fox system from outside your home, you can choose not to use the F&F cloud and still fully enjoy the functional control that works only over your local Wi-Fi or Bluetooth network.

FOX - system sterowania Wi-Fi - aplikacja mobilna

Application for Android devices
Application for iOS devices

Plan activities of the FOX system using online calendars

Use calendars and plan the operation of the module for the time of the day or evening. It depends on you when and what functions will be performed. You can schedule the lighting to be turned on at a given time or to water the garden at different times according to the schedule you set.

Control your voice with the Google assistant

The voice control service is available in Polish. After a simple configuration, the control of individual devices may be performed by saying the phrase: “Ok Google. Open all blinds. ”,“ Turn on blue light in entertainment room ”, or when you leave the house:“ Ok Google. Turn off all devices. "

Aplikacja FOX - planowanie działań na podstawie kalendarzy

Power supply voltage165÷265 V AC
Control input165÷265 V AC
Control pulse currentless than 1 mA
Maximum load current (AC-1)16 A
Humidity (non-condensing)≤ 90%
Radio frequency2,4 GHz
Radio power (IEEE 802.11n)≤ 20 dBm
Receiver sensitivity-98 dBm
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Power consumptionstandby 1,2 W; operation (relay on) 2 W;
Working temperature-30÷45°C
Dimensions88×64×30 mm
Assemblyon wall
Ingress Protection MarkingIP65 - hermetic
