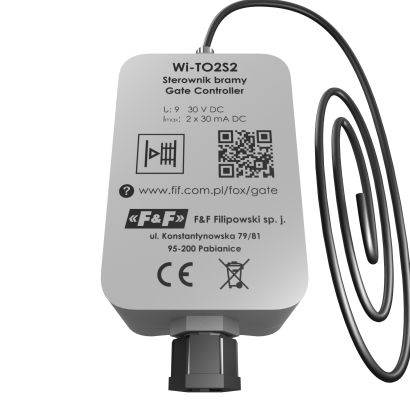

GATE - wifi gate contoller - grey

GATE - wifi gate contoller - grey

WI-TO2S2-G, 5902431674353

Product description

2-channel gate controller designed for integration with any automation of gate and garage gate drives.

Fox - sterowanie Wi-Fi logo


GATE
 - is a two-channel controller for gates or gates and wickets. It allows to define the device statuses: "gate closed", "gate open". Due to the architecture of the wifi system, the gate can be controlled via the cloud or only locally via wifi or bluetooth. To improve the signal strength, the GATE module is equipped with an external antenna. Hermetic casing guarantees uninterrupted operation of the controller outside. The GATE supports all types of gates, except for roller gates.



Ikony funkcje systemu FOX
Application for phones and tablets
Ikony funkcje systemu FOX
Remote access via Wi-Fi and F&F cloud
FOX - sterowanie napędami bram i furtek
Remote control of gate and wicket drives

Properties

  • Designed for integration with any gate drive system;
  • Ability to control gate, two gates or a gate and a wicket;
  • Support for two local inputs enabling:
    • opening/closing a gate or wicket;
    • connection of gate or wicket opening/closing sensors;
  • REST API support enabling integration of the controller also with other home automation systems;
  • External antenna for extended operating range;
  • Hermetic housing suitable for outdoor installation.



System sterowania przez Wi-Fi - moduł do bram i furtek

FOX - Wi-Fi control system

Easy to install and rich in possibilities, wireless home automation system.


To control devices, the FOX system uses a free mobile application, which is available for devices with iOS and Android systems.
The application allows you to manage the installed modules in a simple and intuitive way. Thanks to the use of the home Wi-Fi network and the F&F cloud, you have the ability to constantly control devices at home from anywhere in the world with Internet access.
If you do not want to control your Fox system from outside your home, you can choose not to use the F&F cloud and still fully enjoy the functional control that works only over your local Wi-Fi or Bluetooth network.


FOX - system sterowania Wi-Fi - aplikacja mobilna




Application for Android devices
Application for iOS devices






Power supply voltage9÷30 V DC
Ilość wejść sterujących2
Control input85÷265 V AC
Maximum AC-1 load currentmniej niż 20 mA
Napięcie40 V
Control pulse currentmniej niż 3 mA
Radio frequency2,4 GHz
TransmissionWI-FI
Moc radiaponiżej 13 dBm
Czułość odbiornika-98 dBm
The length of the antenna wire1 m/25 mm
Terminalzaciski sprężynowe 0,14÷0,5 mm²
Power consumptionczuwanie: 1,2 W: praca (włączone wyjście): 1,5 W
Working temperature-20÷55°C
Dimensions42×89×31 mm
Assemblyon wall
Ingress Protection MarkingIP65 - hermetic
Schemat podłączenia modułu Gate do sterowania bramami i furtkami


Schemat podłączenia Gete z napędem Faac 741



Schamat połączenia Gete z Bennica Core


Schemat połączenia Gate z napędem Nice MC 424
