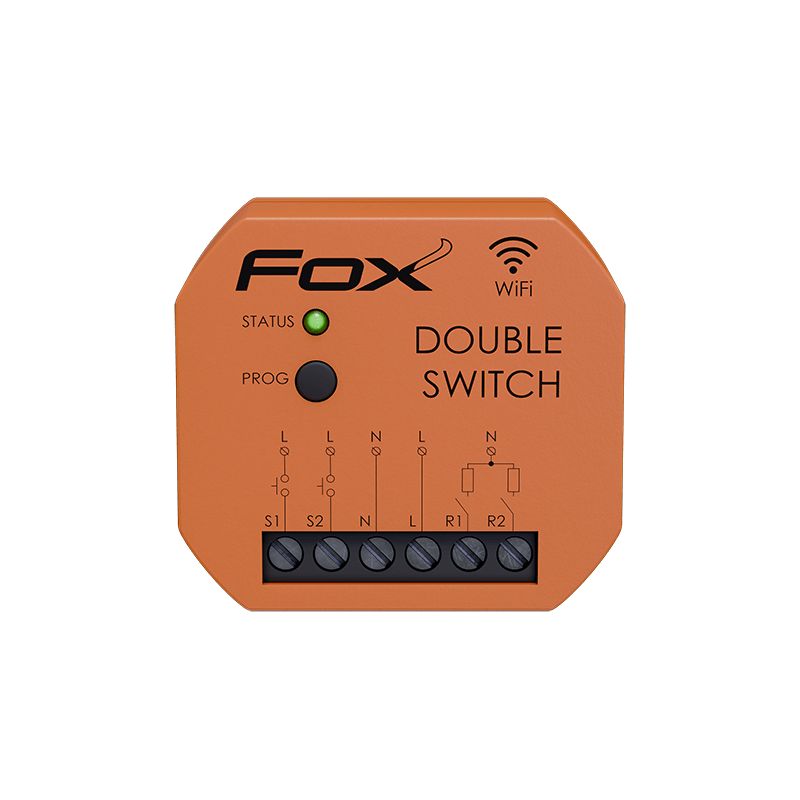

DOUBLE SWITCH double relay 230 V Wi-Fi

Reference: Wi-R2S2-P, EAN13: 5902431674179

Product description

2-channel 230 V relay with a load capacity of 5 (8 *) A per channel.

DOUBLE SWITCH it is used to control lighting and any electrical devices in the house. It allows you to turn on and off the connected electrical device. You can use it to run most home appliances. Installed under the light switch, it allows you to control two lighting circuits. Works with classic and bell switches.

Application for phones and tablets

Remote access via Wi-Fi and F&F cloud

Voice control

Programming events using calendars

Works with classic switches

Properties

2-channels 230 V relay with a rated load capacity of 5 A and the maximum load capacity of 8 A per channel;
Ability to connect local control buttons and set their function;
Controlling receivers with a mobile app and time programmers;
Built-in clock with power backup and backup copy of the work program guarantees proper operation also without a Wi-Fi connection;
REST API support enabling integration of the controller also with other home automation systems;
Built-in thermal protection;
Convenient installation in an installation box with a diameter of fi 60 mm.

The ability to operate at loads above the rated value depends on the temperature and operating conditions of the device. Prolonged operation at such high load may lead to tripping of the thermal protection and disconnection of the controlled circuits.

FOX - Wi-Fi control system

Easy to install and rich in possibilities, wireless home automation system.

To control devices, the FOX system uses a free mobile application, which is available for devices with iOS and Android systems.
The application allows you to manage the installed modules in a simple and intuitive way. Thanks to the use of the home Wi-Fi network and the F&F cloud, you have the ability to constantly control devices at home from anywhere in the world with Internet access.
If you do not want to control your Fox system from outside your home, you can choose not to use the F&F cloud and still fully enjoy the functional control that works only over your local Wi-Fi or Bluetooth network.

FOX - system sterowania Wi-Fi - aplikacja mobilna

Application for Android devices

Application for iOS devices

Plan activities of the FOX system using online calendars

Use calendars and plan the operation of the module for the time of the day or evening. It depends on you when and what functions will be performed. You can schedule the lighting to be turned on at a given time or to water the garden at different times according to the schedule you set.

Control your voice with the Google assistant

The voice control service is available in Polish. After a simple configuration, the control of individual devices may be performed by saying the phrase: “Ok Google. Open all blinds. ”,“ Turn on blue light in entertainment room ”, or when you leave the house:“ Ok Google. Turn off all devices. "

Aplikacja FOX - planowanie działań na podstawie kalendarzy

Power supply voltage	85÷265 V AC
Control input	85÷265 V AC
Control pulse current	less than 1 mA
Maksymalny prąd obciążenia (AC-1) - prąd znamionowy	2 x 5 A
Maximum load current (AC-1)	2 x 8 A
Humidity (non-condensing)	≤ 90%
Radio frequency	2,4 GHz
Transmission	WI-FI
Radio power (IEEE 802.11n)	≤ 13 dBm
Receiver sensitivity	-98 dBm
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Power consumption	czuwanie: 1,2 W; praca (włączony przekaźnik): 2,2 W
Working temperature	0÷45°C
Dimensions	Ø54 (48×43 mm), height: 20 mm
Assembly	in a flush-mounted box Ø60
Ingress Protection Marking	IP20

FOX declaration CE 2023 (179.63k)

FOX DOUBLE SWITCH manual (713.92k)

FOX DOUBLE SWITCH Bedienungsanleitung (709.75k)

FOX DOUBLE SWITCH Istruzioni per l'uso (716.45k)

Schemat podłączenia modułu Double Switch dla systemu FOX

Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Wersja przekaźnika z literą "M" posiada pamięć pozycji styku, tzn. po załączeniu zasilania zostanie przywrócony stan przekaźnika jaki był w momencie wyłączenia zasilania.
