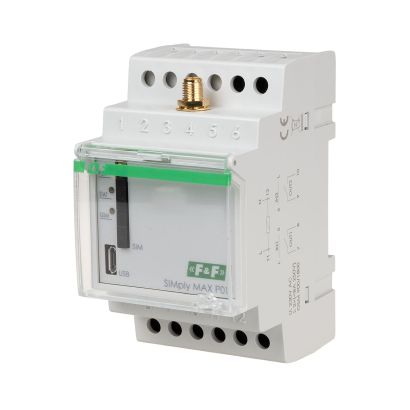

SIMply MAX P01

SIMply MAX P01

SIMply MAX P01

SMS remote control relays [ON/OFF/ALARM]
P01 relay with built-in GSM communicator is used to remote control via mobile phone. It allows an easy way to manage and monitor outputs status devices connected to the inputs and outputs of the relay
.




Functioning
The relay works in GSM 900/1800 cellular networks of any operator operating in Poland (device is unlocked). In order to make the calls and execute the predefined functions, the device must have an active SIM card. The relay has two controllable relay outputs through which the controlled receivers are enabled and disabled as well as two high-voltage inputs through which are implemented functions of the notifications about the actuation of controlled devices. Commands and notifications are defined text messages (SMS) exchanged between the controller and the user of the telephone.


Features
* 2 ON/OFF control outputs (8 A 250 V AC)
* time control of the outputs, for example for 30 s (1 s├Ě600 min.)
* 2 alarm inputs (160├Ě260 V AC of direct connection)
* optional triggering with both the appearing and fading of the signal (0/1)
* notifications to 5 phone numbers for each input
* queries about the status of inputs and outputs
* redefinition of the names of inputs and outputs, for example: IN1-> PUMP; IN2-> BREAK-IN
* optional automatic replies about execution of the commands
* optional automatic restore of the status of the outputs after power returns
* access control by password
* unlocked (no Simlock blockade)


Specifications

Power supply voltage230 V AC
The executive element2 x relay
Maximum load current8 A
Contact configuration2 ├Ś NO
Inputs quantity2
Inputs - voltage tolerance160├Ě260 V AC
portsSIM
Antenna connector typeSMA
GSM antenna dimensions20 mm x 100 mm
The length of the antenna wire2,5 m
terminalscrew terminals 4,0 mm┬▓
Tightening torque0,5 Nm
Power consumption waking / working1,3 W / 3 W
Working temperature-10├Ě50┬░C
dimensions3 modules (52,5 mm)
Assemblyon rail 35 mm
Level of securityIP20



Wiring diagram
