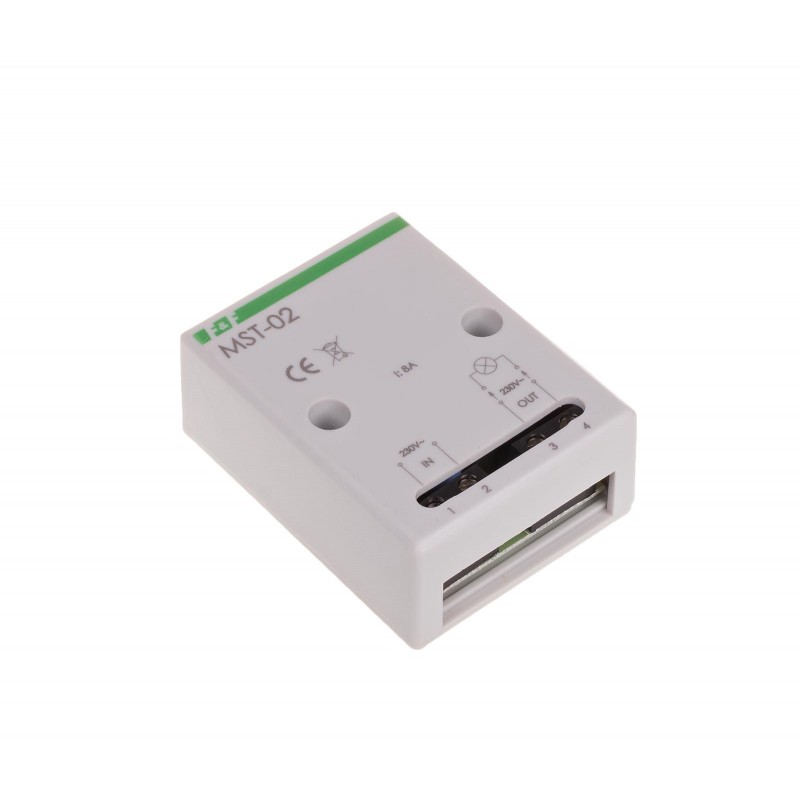

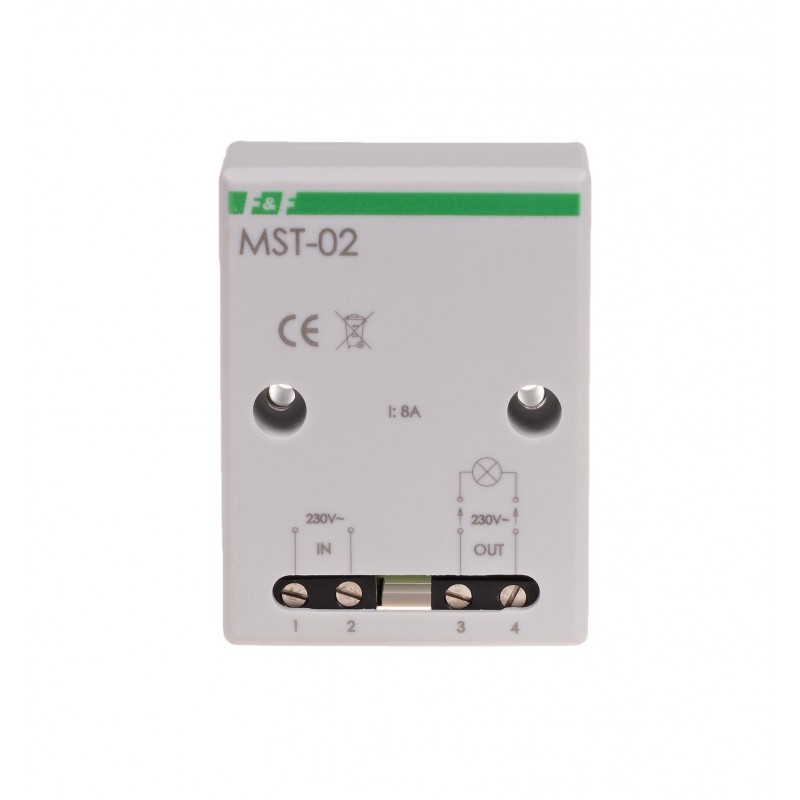

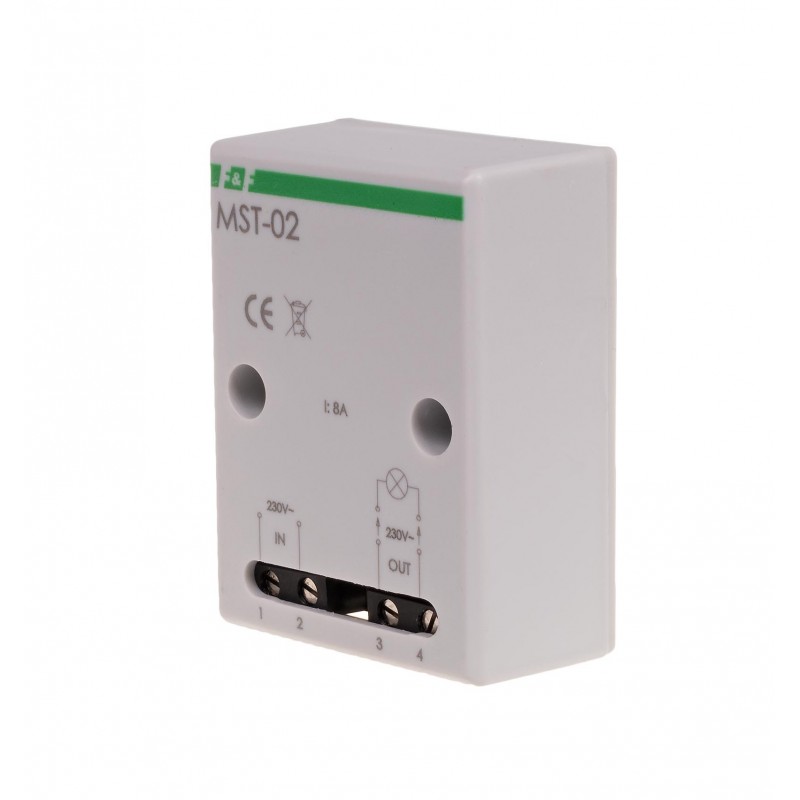

Soft start for halogen lamps MST-02

Soft start for halogen lamps MST-02


MST-02 is used to reduce the starting current of halogen lamps. This prevents excessive use of connected lamps, resulting in prolonging their life.
Mounting on a flat surface.

At the moment of switching on the power supply, the controller does not allow immediate switching on of lighting to full power. Initially, the lamp system is powered by an internal thermistor limiting the current. After 1sec. the system switches on permanently contact, through which it transmits the full load of the receivers.

No effect of gradual illumination of lamps.

Maximum AC-1 load current8 A
The executive elementrelay
Contact configuration1 ├Ś NO
Output voltage OUT230 V AC
Switching time1 s
Input voltage IN230 V AC
terminalscrew terminals 4,0 mm┬▓
Tightening torque0,4 Nm
Power consumption0,1 W
Working temperature-25 ├Ě 50 ┬░C
dimensions51├Ś67├Ś26 mm (┬▒ 1 mm)
Assemblyon wall
Level of securityIP20
