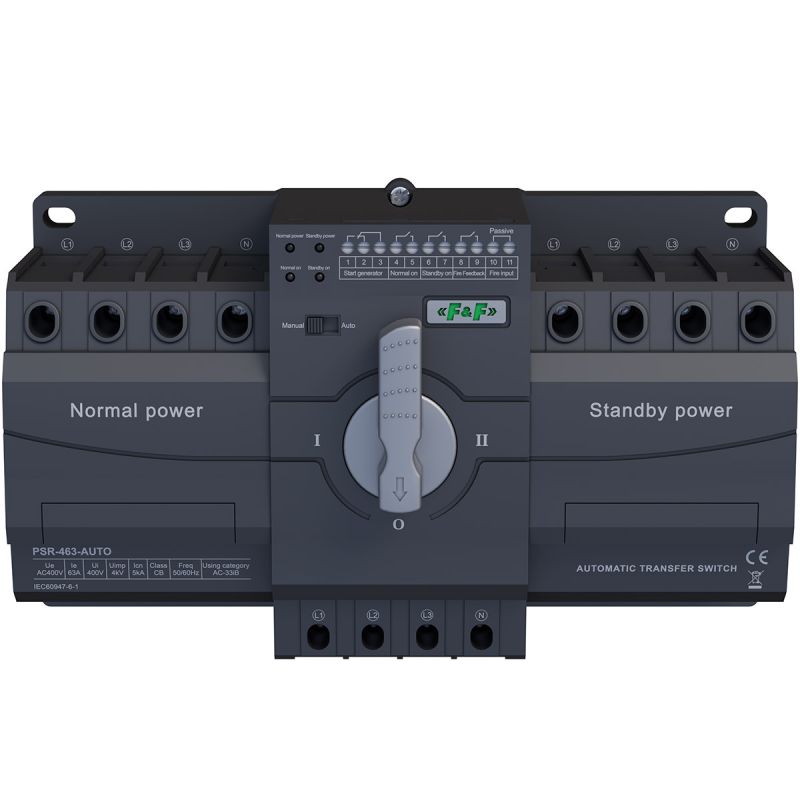

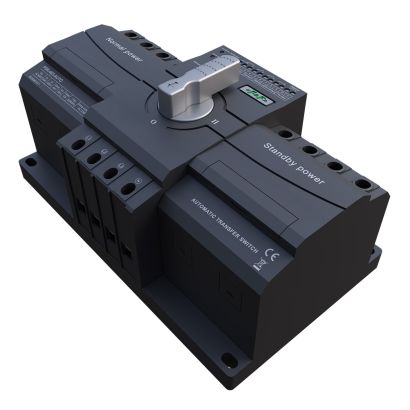

Automatic switch PSR-463-AUTO
The automatic switch is used for automatic and manual switching between two 3-phase supply lines or, for example, a supply line and a generator. Supported current up to 63A.
Operation:

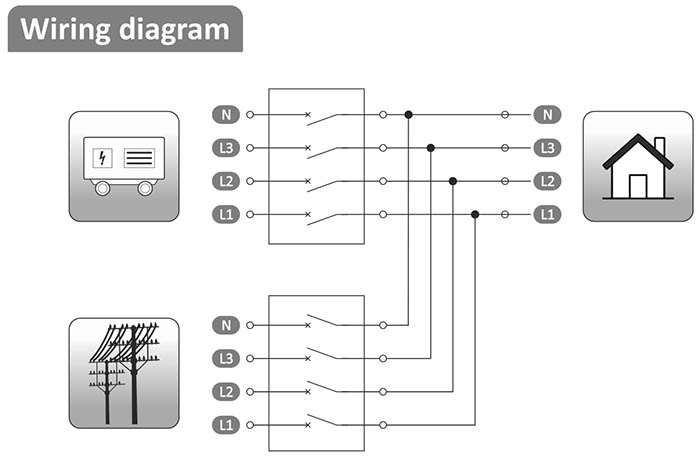

The PSR-463-AUTO automatically switches the power supply between the main and auxiliary mains, e.g. between two supply lines or between a supply line and a generator, ensuring continuity of equipment operation. It is designed for operation on AC 50/60 Hz networks with a voltage of 230/400 V. It can handle currents up to 63 A.
-
Independent control system and execution mechanism.
-
Mechanical interlock protection to prevent simultaneous switching on of both power sources.
-
With extensive functionality:
-
Control of an external generator;
-
Operation with fire switches;
-
Voltage monitoring;
-

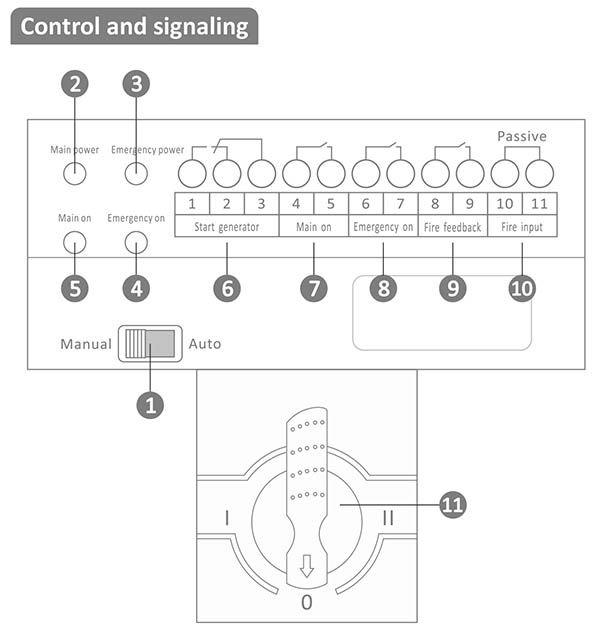

Operating status indication;
-
-
Possibility to operate in Auto or Manual mode.
-
Indicator lights for main power, emergency power and status of circuit breakers.
-
Output ports for alarm signals and external control.
-
Safe switching between main and emergency power supply.
-
Easy integration into existing installations.
- Napięcie udarowe
- 4 kV
- Switching time
- ≤ 5 s
- Rated current [AC-21B/AC-22A].
- 63 A
- Number of poles
- 4P
- Mechanical strength
- 10 000 cykli
- Isolation voltage
- 500 V
- Operating voltage
- 3x230/400 V
- Short-circuit breaking capacity Icm
- 7,5 kA (0,1s)
- Rated short-circuit breaking capacity Icn
- 5 kA, cosφ-0.65
- Electrical life
- 6 000 cykli
The automatic switch is used for automatic and manual switching between two 3-phase supply lines or, for example, a supply line and a generator. Supported current up to 63A.
