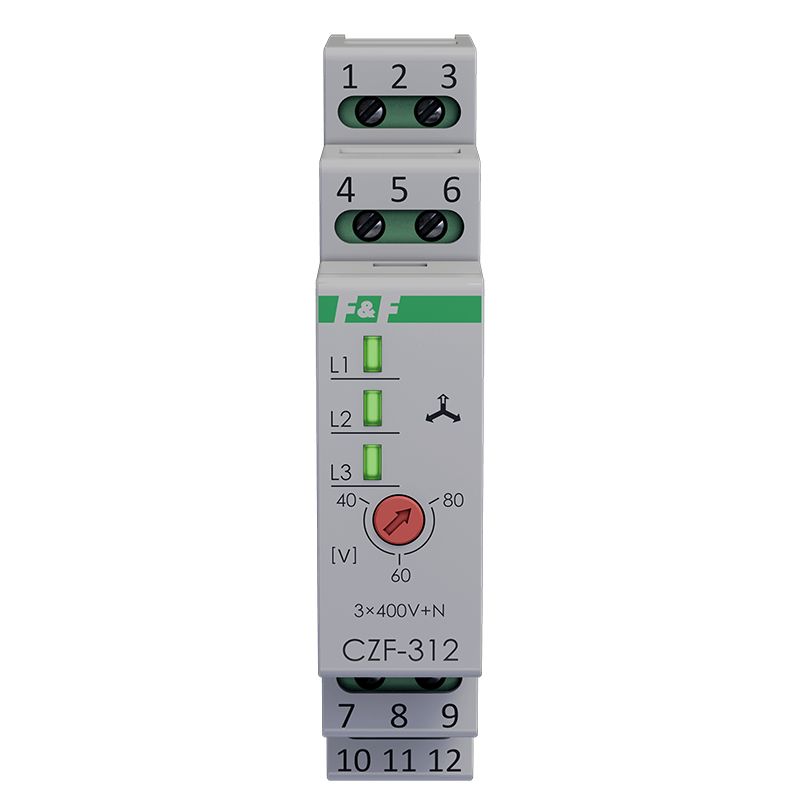

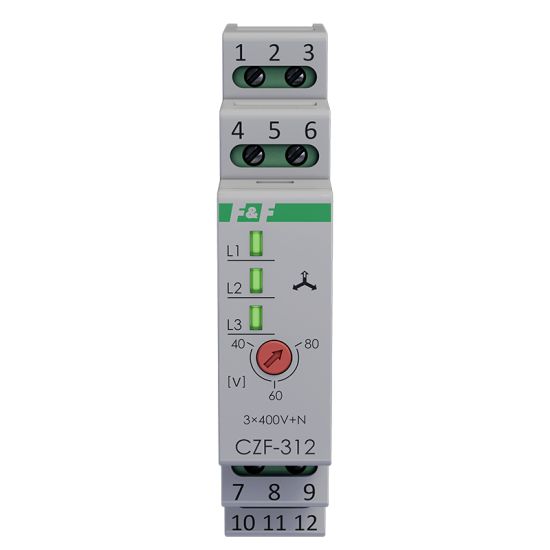

Phase control relays CZF-312

Reference: CZF-312, EAN13: 5908312593140

Product description

Monitor with action delay 0,5 sec.
Three phase monitors serve to protect the three-phase electric motors supplied from three-phase mains, against phase collapse in at least one phase or against phase-to-phase voltage asymmetry, threatening to damage the motor.

Functioning
Phase collapse in at least one phase or voltage unbalance between phases above set value causes switching-OFF the motor. The motor switching-OFF occurs with 0,5 sec delay, which prevents any accidental motor disconnecting at temporary voltage drop. The re-connection will occur automatically at voltage increase of 5V above activation voltage (i.e. of value of voltage hysteresis). At occurrence of these disturbances, it is not possible to set a motor in motion.

Power supply voltage	3 × 400 V + N
Cooperation with power generators	NO
Phase failure / asymmetry monitoring	YES
Phase sequence control	NO
Contactor contact monitoring	NO
The executive element	2 × relay
Maximum load current	2 × 5A
Contact configuration	1×NO+1×NC
Separation of the contact	YES
Voltage asymmetry	40÷80 V
Voltage hysteresis	5 V
Switch off delay	0,2 s
Power control	3 × LED green
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Power consumption	0,8 W
Working temperature	-25÷40°C
Dimensions	1 module (18 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20
TrueRMS	NIE
