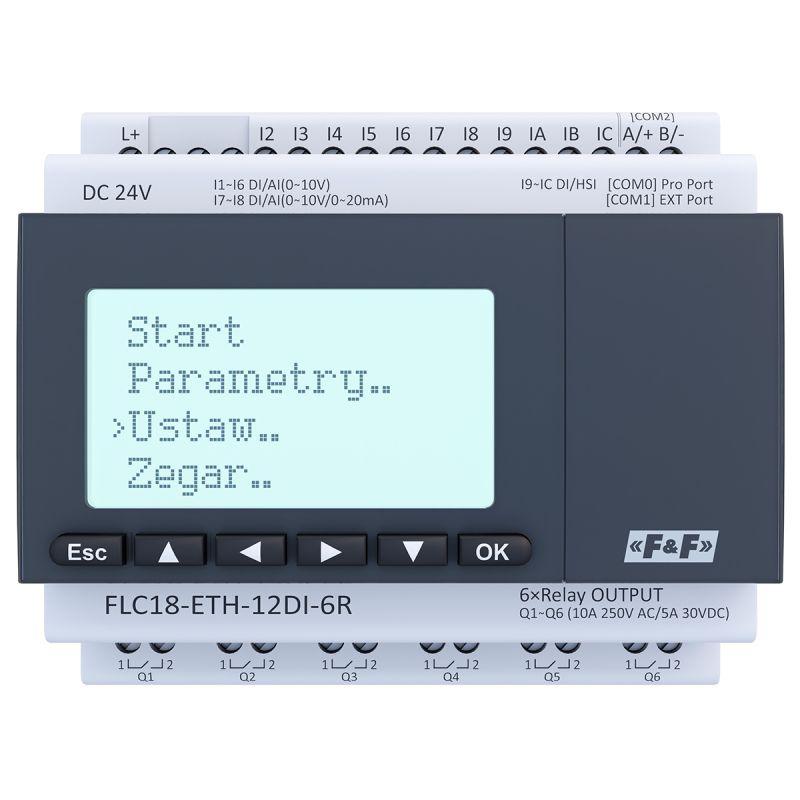

Programmable controller FLC18-ETH-12DI-6R

Programmable controller FLC18-ETH-12DI-6R

FLC18-ETH-12DI-6R,

Product description

Extensive programmable relay It integrates many solutions that enable the construction of functional automatic control systems.

The FLC18-ETH-12DI-6R is a universal, extensive and programmable logic relay that can operate devices in households and control electrical components (staircase lighting, lighting of sidewalks and driveways, control of awnings, roller shutters and curtains, exhibition lighting, control simple machines). It can also replace single specialized modules in switch cabinets, thus reducing their size. Thanks to the use of a simple HMI panel, it does not require connection with expensive external panels. At the same time, the user can very quickly change the configuration of the control system parameters (e.g. change of times or controller parameters). Of course, the device is also equipped with advanced communication interfaces and enables easy connection to professional visualization stations (using the MODBUS protocol).

Functions

• 12 inputs and 6 relay outputs;
• Analog inputs, both voltage 0 ÷ 10 V and current 0 ÷ 20 mA, enabling direct connection to the relay of many types of measurement sensors;
• Possibility of expanding the controller with 16 expansion modules;
• Ethernet port for connecting the relay to the local network;
• Built-in web server and access to the controller via a web browser;
• Integration with Internet Of Things (IOT) devices provided by the support of the MQTT protocol;
• The ability to record data on an SD card;
• Isolated RS-485 port with Modbus RTU / ASCII support;
• Programming the controller via Ethernet or directly via the programmer;
• LCD display and keyboard for free use by the user;
• Battery backed real time clock with calendar.

Typeprogrammable controller
Extension modules16
A programming languageFBD (64kB)
Number of function blocks1024
Power supply voltage24 V DC
The type of communication outputEthernet, RS485, RS232 (UART)
Communication protocolsModbus RTU, Modbus TCP, MQTT, serwer WWW
Configuration of communication parametersYES
The total number of entries12 (I1÷IC)
Number of digital inputs12 (I1÷IC)
Input voltage range0÷28,8 V DC
Number of analog inputs8 (I1÷I8) (0÷10 V DC)
Number of free inputs (4Hz)8
Number of fast inputs (60 kHz)4
Outputs - number of outputs6 (Q1÷Q6)
Outputs - output typerelay
Outputs - continuous current, resistive load10:00 AM
Outputs - continuous current, inductive load2:00 AM
Accuracy of the RTC clock±2 s/dzień
RTC clock support20 dni
Durability of the program10 years
Protection against data lossYES
Display4×16 znaków
Inrush current250 mA
Weight400 g
Resistance to instantaneous power failure5 ms
Isolation between input and power supplyresistance
Isolation between the entrancesNONE
Cycle time0,6÷8 ms
Processing time of a single application100 ms
Operator panelYES
Power consumption4 W
Working temperature-20÷55°C
Dimensions95×90×61 mm
Ingress Protection MarkingIP20
Www serverYes
Switching speed (mechanical)10 Hz
