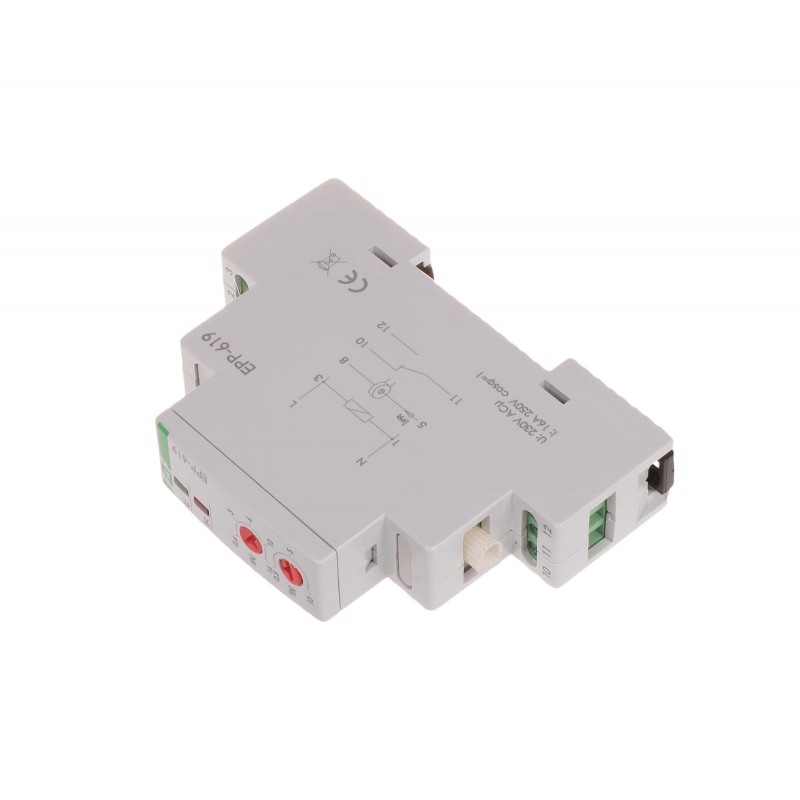

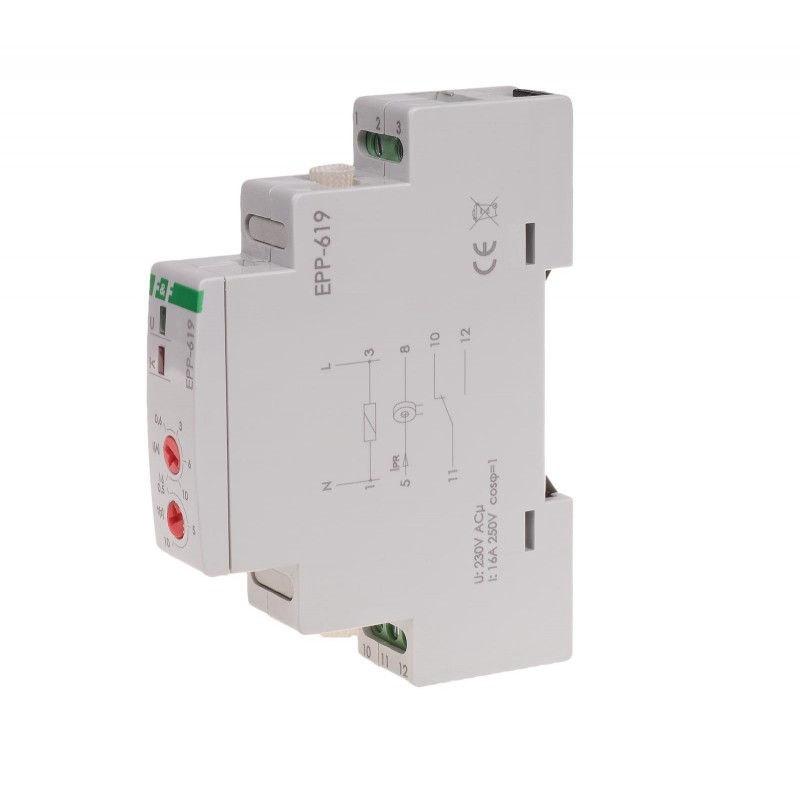

Current relay EPP-619
Current relay EPP-619
EPP-619, 5908312593928
Product description
One function.Current relay is used to control the value of the current in the circuit measured with switch contacts function in the case of the value of current above the set threshold values.
Functioning:
Activation of relay is signaling by shining of the green LED “U”. By potentiometer is set the activation value of current. If set value of current is below of set threshold, then the joint is open (position 11-10). If set value of current exceeds of set threshold, then the joint is close (position 11-12) with set the time delay “t”. Exceeds of set threshold is signaling by shining of red LED I<. decrease="" of="" current="" value="" below="" set="" threshold="" will="" automaticly="" open="" joint="" position="" 11-10="" br="">
ATTENTION!
Current of receiver may be greater than 16A. Is only limited by cross-section of cable.
| Power supply voltage | 230 V AC |
| The executive element | relay |
| Maximum load current | 16 A |
| Contact configuration | 1 × NO/NC |
| Separation of the contact | YES |
| Time of return | 0,5 s |
| Power return hysteresis | 10% |
| Diameter of the through hole | 4 mm |
| Current of the measuring circuit Im | ograniczony przekrojem przewodu przewlekanego (maks. Ø: 4 mm) |
| Switching current - adjustable | 0,6÷16 A |
| Operating time - adjustable | 0,5÷10 s |
| Terminal | pluggable terminal blocks 2,5 mm² |
| Tightening torque | 0,4 Nm |
| Power consumption | 0,4 W |
| Working temperature | -25 ÷ 50 °C |
| Dimensions | 1 module (18 mm) |
| Assembly | on rail 35 mm |
| Ingress Protection Marking | IP20 |
