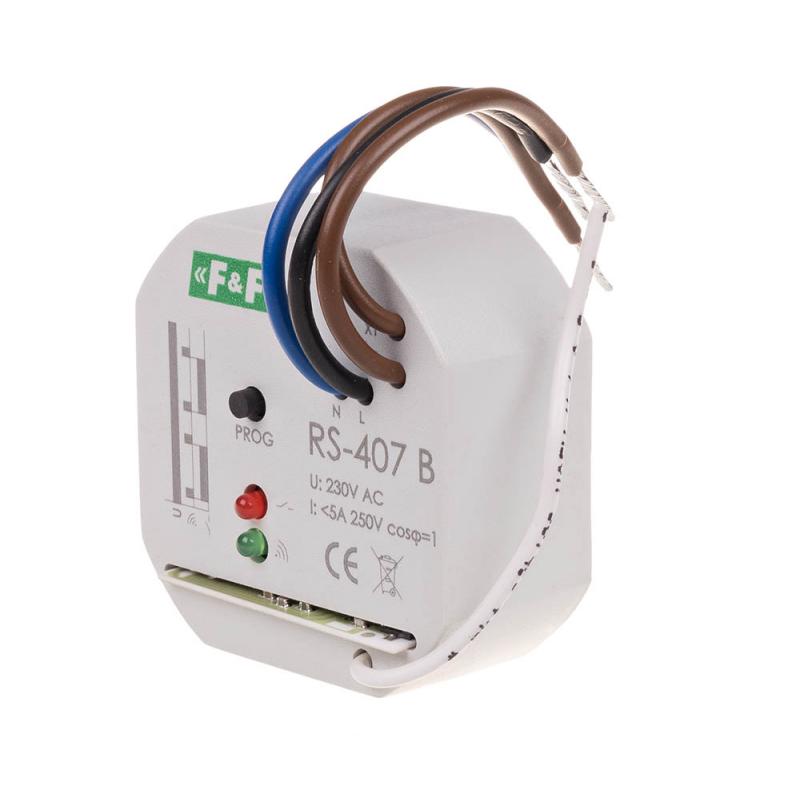

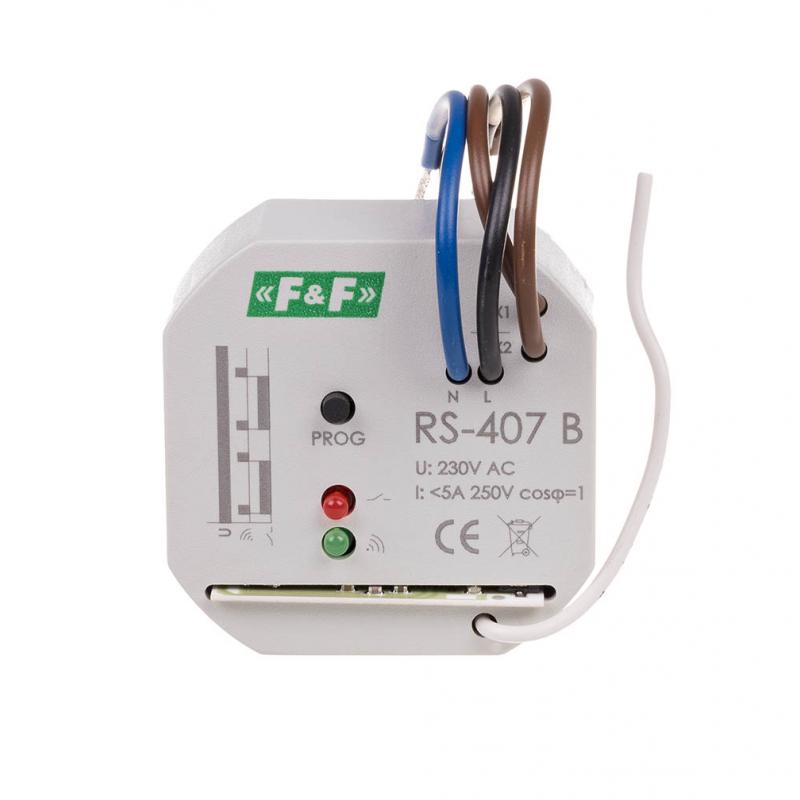

Radio control relay RS-407 B

Radio control relay RS-407 B

RS-407B, 5908312594468

Product description

Electronic radio relays are used for remote control of gates, shutters, lighting, arming alarm systems, etc. Remote control system consisting of a transmitter (remote control) and a receiver (relay). It is possible to cooperate with many transmitters with one receiver and a single transmitter with many receivers.




The pulse caused by pressing the button on the remote controller sends the encoded signal to the receiver. The remote control has a protection against breaking the transmission after releasing the button. Thanks to this, even the shortest activation of the function causes transmission of a full data frame. Data transmission from the remote control is signaled by a flashing red LED on the remote control. When the signal is recognized, the receiver will change the contact position to the opposite.


RS-407B receiver cooperates with dedicated F&F production devices: RS-P (pilot) and RS-N (under plaster box Ø60 transmitter) transmitters. Up to 32 remote controls can be stored in the receiver's memory.
The range of the system is up to 100m (the range depends on many factors, including: atmospheric conditions (humidity), terrain characteristics (reflection), receiver and transmitter stack height, and all types of obstacles, such as walls).


Before the final assembly of the receiver, perform tests.
The receiver is equipped with a PROG button that allows you to link a particular remote control / button to the receiver and to delete the receiver's memory.

Pressing and holding the PROG> 5s button enters the programming state. After entering the learning mode, the receiver waits for incoming transmissions from the remote control (pressing the selected remote control button). The program is verified. If the button of a particular remote control has not been pre-programmed, identification data will be saved. You can assign multiple pilots during one open receiver programming session. A short press of the <1s button causes the exit from the programming state. Pressing and holding the PROG> 8s button erases the memory. After the erase operation from the non-volatile memory, all the pilots data are deleted, and then the memory is formatted for reprogramming.


Power supply voltage230 V AC
The executive elementrelay
Maximum load current5 A
Contact configurationseparated 1 × NO
Separation of the contactYES
Contact status indicationLED green
Receiving / programming signalingLED red
Terminal4×LY 1 mm² , l: 10 cm
Power consumption0,8 W
Working temperature-25 ÷ 50 °C
DimensionsØ 55 mm, h: 21 mm
Assemblyin a flush-mounted box Ø60
Ingress Protection MarkingIP20
