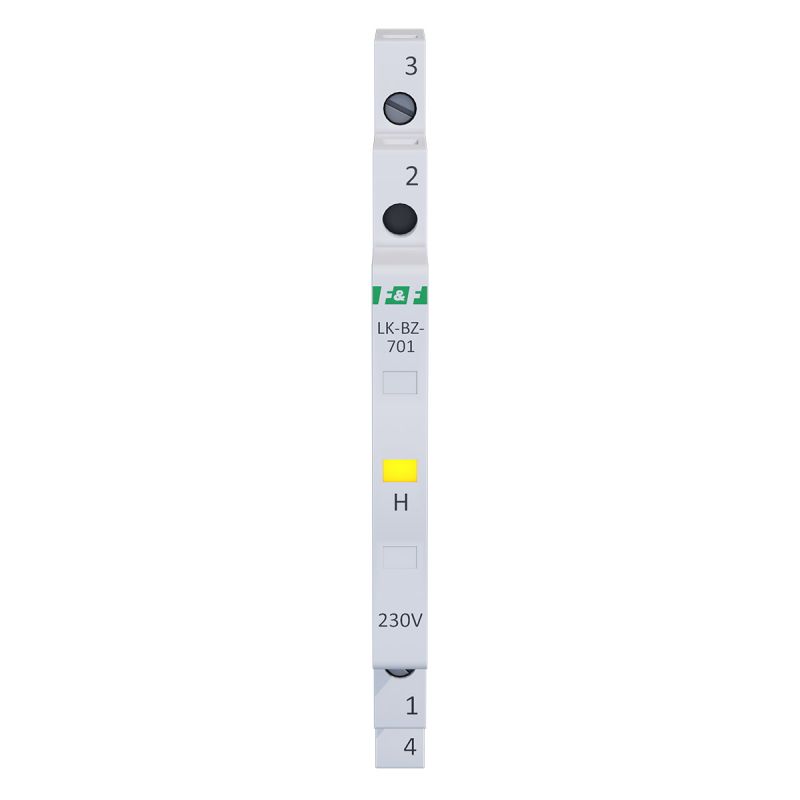

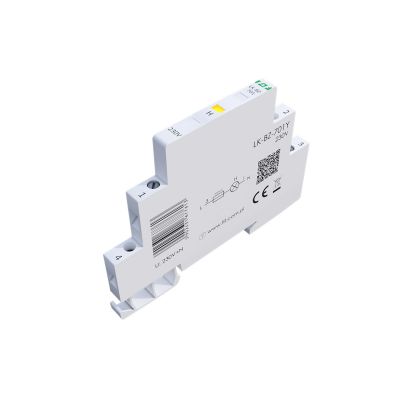

Control lamp LK-BZ-701Y 230 V
The LK-BZ-701Y indicator light is usedto visually indicate the presence of voltage in a single-phase circuit.
With built-in protection.
1 x yellow LED.
The LK-BZ-701 indicator light is used to provide a visual indication of the presence of voltage in a single-phase circuit. The compact size of the housing (6.2 mm wide) saves space in the switchboard. The indicator is protected by a built-in fuse, which eliminates the need for an additional protection module.
Operation
The presence of voltage in a phase is indicated by the LED in that phase’s circuit lighting up. If the LED is not lit, this indicates either a lack of supply voltage or a fault in the built-in fuse element.
The fast-acting fuse built into the indicator light eliminates the need for additional protection where the light is fitted in a circuit with a current rating of less than 100A.
Types of LK-BZ-701 indicator lights
| Index | Colour | Voltage | Instructions | |
|---|---|---|---|---|
 |
LK-BZ-701R | 1 x red | 230 V+N | Download |
 |
LK-BZ-701G | 1 x green | 230 V+N | Download |
 |
LK-BZ-701Y | 1 x yellow | 230 V+N | Download |
 |
LK-BZ-701B | 1 x blue | 230 V+N | Download |
 |
LK-BZ-701B-110 | 1 x blue | 110 V+N | Download |
- Power supply voltage
- 230 V+N
- Power control
- 1 × LED (8×4 mm)
- LED colors
- 1 x yellow
- Rated current
- 1 mA/channel
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0.15 W/channel
- Type of fuse
- fast-acting fuse
- Fuse - rated current
- 500 mA/channel
- Fuse - breaking capacity
- 100 A @250 V AC
- Working temperature
- -30÷50°C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
