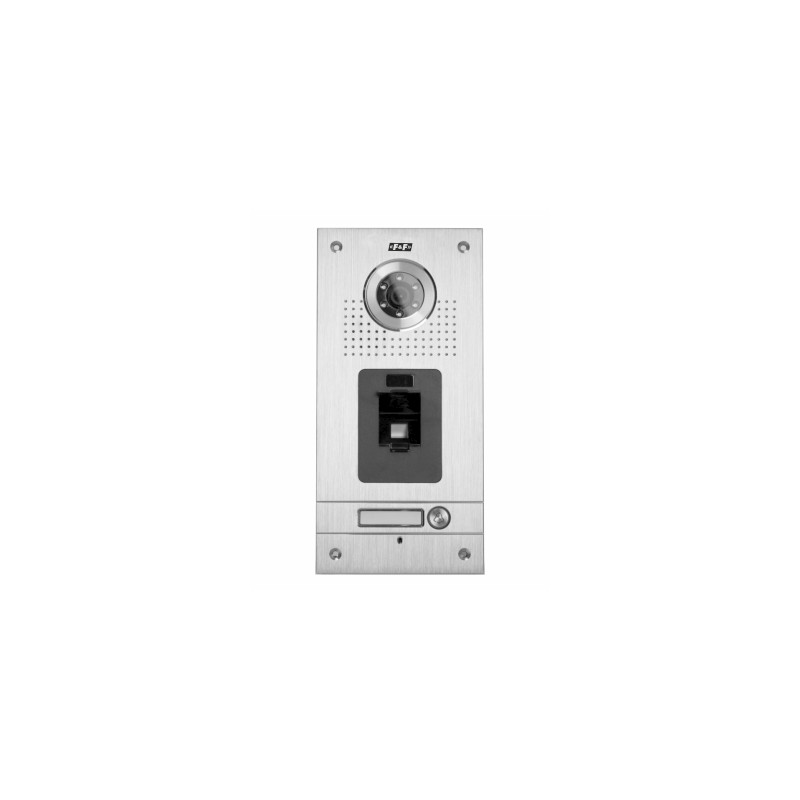

Gateway station KK-01FP

Gateway station KK-01FP View larger

Gateway station KK-01FP

KK-01FP,

Product description

Built-in fingerprint reader.

 Works with all stations of the F&F gateway

Functions and features
* 1-way door station
* CCD color image sensor
* lens angle: approx. 60 °
* resolution: 420 lines
* 3.6 mm lens
* lens adjustment: vertical and horizontal (+/- 10 °)
* backlight: 6 IR LEDs (infrared)
* control of the electric strike with adjustable opening time 1 ÷ 99 s
* backlit dial button and signboard in the name
* Vandal-proof front panel made of stainless steel
* flush or surface mounted with D561B cover
* built-in fingerprint reader
* reader capacity: max. 900 fingerprints
* power the camera from the monitor
* biometric reader power supply from a 12 ÷ 15 V DC power supply
* exit to the additional lock release button
* possibility to change the lens to 2.8 mm
* in the set the user receives the PL12 remote control (necessary for programming)
* dimensions: 120 × 250 × 51 mm
* dimensions of the mounting cassette: 110 × 240 × 46 mm
