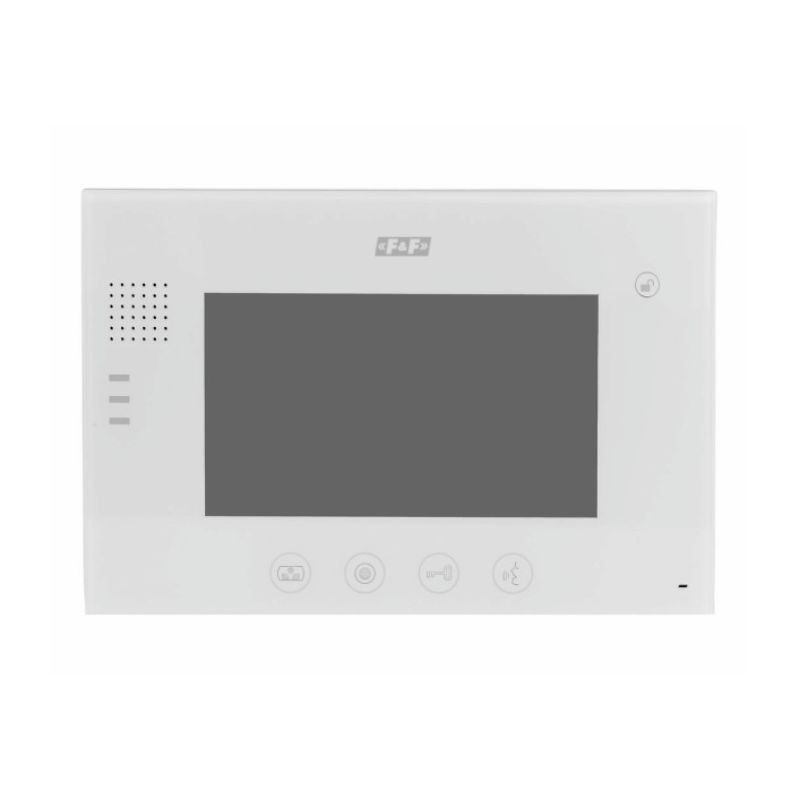

Video intercom monitor MK-03W

Video intercom monitor MK-03W View larger

Video intercom monitor MK-03W

MK-03W

Work with two cameras (gateway stations).

Functions and features
* speakerphone
* work with two cameras (gate stations)
* touch keyboard
* volume control, brightness and color
* panel material
* white
* 35mm rail power supply included
* wall mounting
* additional control gate


Job options
1 camera + 1 monitor
1 camera + 2 monitors
2 cameras + 1 monitor
2 cameras + 2 monitors


Specifications

power supply14,5V DC
power consumption7W
display7'' TFT LCD
working temperature-10├Ě55┬░C
dimensions245x160x23mm
supplier 19W5 modules [85mm]



Power supply voltage14,5 V DC
Colourwhite
Housing materialnano glass
dimensions245├Ś160├Ś23 mm
Assemblyon wall
Hands-free monitorYES
Screencolor 7 "widescreen, touch 800 ├Ś 600
Screen menu in PolishNO
Support for 2 gate stations and 2 CCTV camerasNO
Support for 2 door stations (or 1 station + 1 CCTV camera)YES
Possibility to connect motion sensors to camerasNO
Control of the electric strikeNO
Gate controlNO
Control of the electric strike and automatic gateYES
Monitor parameters adjustmentYES (jbrightness, color, contrast)
Preview with the possibility of starting a conversation and opening a wicketYES
Intercom functionYES
Touch control panelNO
Touch buttonsNO
Floating keysNO
Expandable with 3 additional monitorsNO
Power Supplyfor DIN rail (included)
