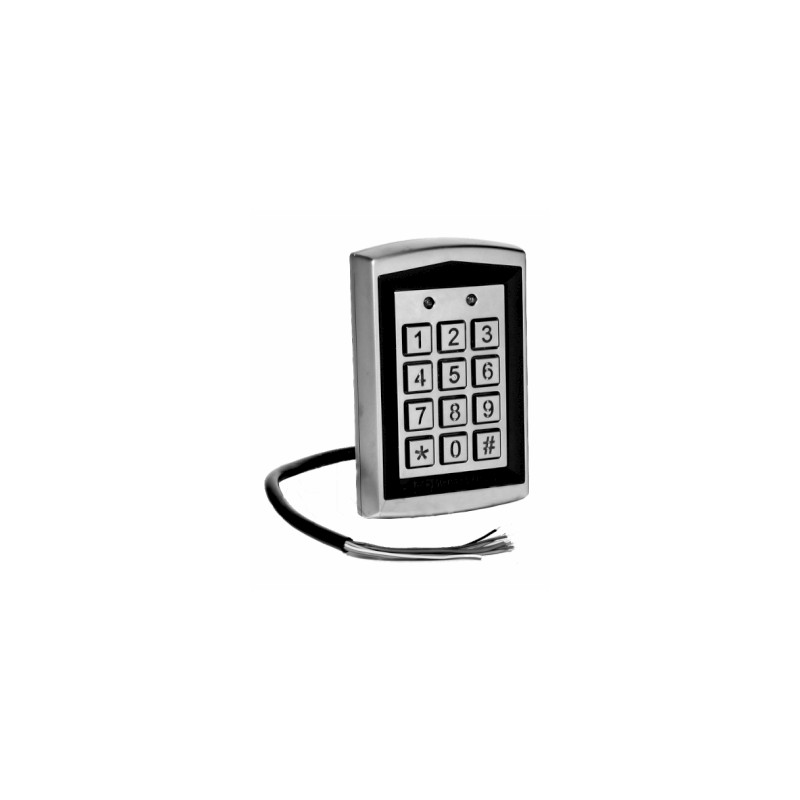

Combination lock KS-01

Reference: KS-01, EAN13: 5908312597902

Product description

Combination lock with proximity card reader for RFID.

Functions

* lock with proximity card reader RFID
* resistant metal housing
* dual-zone (eg. open the gate and gate)
* bell function (alternatively the second zone)
* memory capacity:
      zone 1 - 1000 user codes and cards;
      zone 2 - 10 user codes and cards;
* backlit keyboard
* possibility of connecting additional switches the input opening
* open door sensor input, shortened to a minimum shutter electrocatch
* tamper switch

Specifications

power	9÷18V AC
	12÷24V DC
set opening time relays	0-99s (0s is unstable mode)
power consumption
standby	<40mA
on	<70mA
working temperature	-20÷50°C
dimensions	76×120×22mm
degree of protection	IP65
