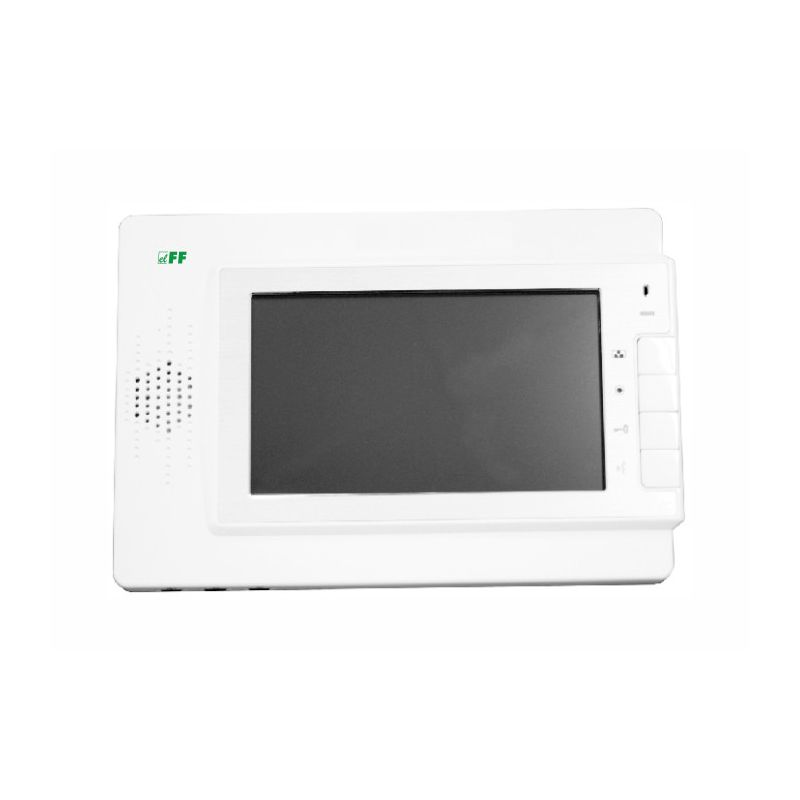

Video intercom monitor MK-04W

Reference: MK-04W, EAN13: 5908312596745

Product description

Video intercom.

Functions and features
* speakerphone
* work with two cameras (gate stations)
* additional gate control
* volume control, brightness and color
* plastic + aluminum panel
* white
* 35mm rail power supply included
* wall mounting

Job options
1 camera + 1 monitor
1 camera + 2 monitors
2 cameras + 1 monitor
2 cameras + 2 monitors

Specifications

power	14,5V DC
power consumption	7W
display	7'' TFT LCD
working temperature	-10÷55°C
dimensions	245x160x18mm
supplier 19W	5 modules [85mm]

Power supply voltage	14,5 V DC
Installation	4-wires
Colour	white
Housing material	Plastic
Dimensions	245×160×18 mm
Assembly	on wall
Hands-free monitor	YES
Screen	color 7 "widescreen, touch 800 × 600
Screen menu in Polish	NO
Support for 2 gate stations and 2 CCTV cameras	YES
Support for 2 door stations (or 1 station + 1 CCTV camera)	NO
Possibility to connect motion sensors to cameras	NO
Control of the electric strike	NO
Gate control	NO
Control of the electric strike and automatic gate	YES
Monitor parameters adjustment	YES (jbrightness, color, contrast)
Preview with the possibility of starting a conversation and opening a wicket	NO
Intercom function	NO
Touch control panel	NO
Touch buttons	NO
Floating keys	YES
Expandable with 3 additional monitors	YES
Power Supply	for DIN rail (included)
