Glass touch button GS2-AC-R-W

Intended use

TheGS2-AC-R-W glass push-buttonis designed for installation using a 60 mm diameter flush-mounted box. It is intended for direct control of low-power 230 V AC lighting circuits.
An external white spot light gently brightens when a hand approaches, indicating the location of the sensors. Activation of the selected circuit is indicated by an orange spot light.

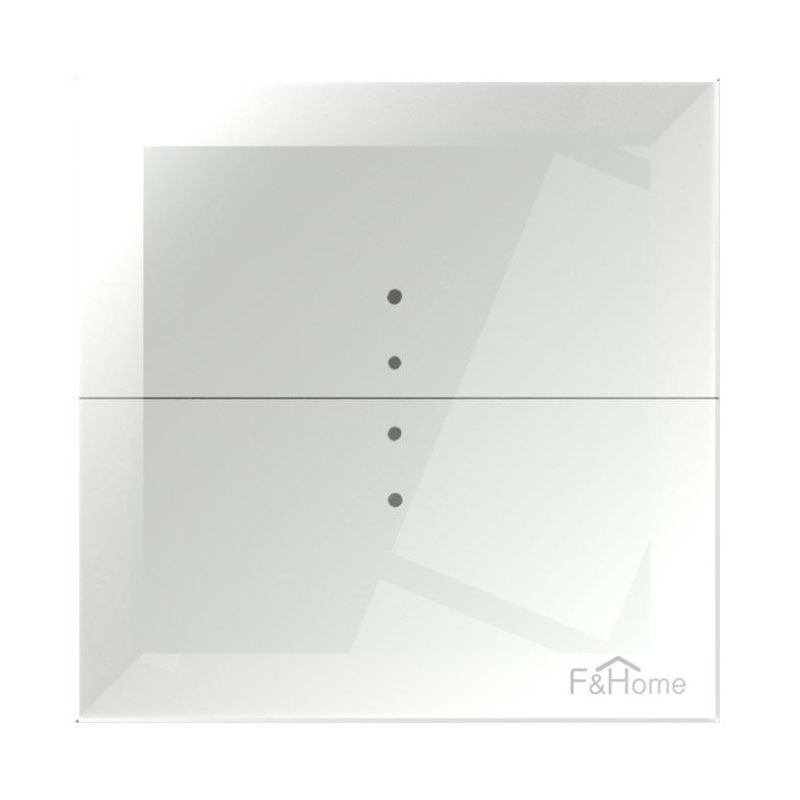

The front of the unit is made of glass with external dimensions of 81×81×12 mm.It features two touch-sensitive areas (S1, S2), the centre points of which light up in a warm white colour when a hand is brought close to the button. In addition, the front panel features four button-activation indicators showing that the receiver, which is activated by pressing a button, has been switched on. On the inside, there is a plastic frame connected to the 2M mounting frame.

Functions provided

* bistable relay function – one press activates the output circuit, a second press deactivates the output circuit;
* control of low-power 230 V AC lighting circuits, such as energy-saving fluorescent lamps or LEDs;
* output load capacity:
– 250 W total power (combined load for both channels), 100 W per individual output;
* the ability to adjust the backlight brightness (separately for the on and off states) to suit individual preferences.
