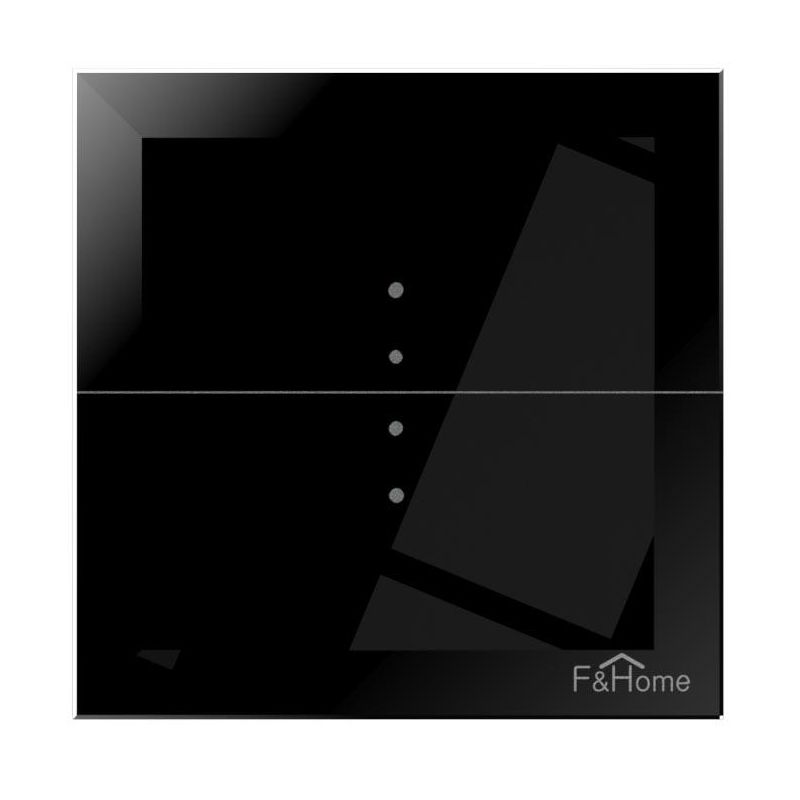

Roller blind controller GS2-STR3-B glass touch panel

GS2-STR-3-B, 5902431673806

Touch-sensitive roller shutter controller for 230 V drives
Supply voltage 85÷265 V AC
Control of electric motors in external blinds and shutters.


Dotykowy sterownik rolet - przycisk szklany dodtykowy

Functional principle of the tactile roller shutter controller

The GS2-STR3 glass push button integrated in the 230 V roller shutter controller is designed for installation in a standard installation box with a diameter of Ø60 mm.

The external white spotlight gently illuminates when the hand is approached, indicating the location of the sensors. Opening or closing of the roller shutter is signalled by orange spot lighting.
The button is used to control the locally connected roller shutter directly. It is also possible to integrate it into central control systems together with other GS2-STR3 buttons and classic STR-3 roller shutter controllers.


Przycisk szklany dotykowy - sterownik rolet

Modern design - glass touch button enriched with a touch function

The front of the device is made of polished glass with external dimensions of 81×81×12 mm. The button is equipped with two touch fields Up and Down indicated by LEDs shining with white warm light when the hand is brought close to the button and indicators for switching on the roller shutter shining in orange. On the inside there is a plastic frame, which is an adapter for mounting the button to a Ø60 mm mounting box.

How does the roller shutter touch control work?

  • 2 buttons on the panel for opening and closing the roller shutter (local control);
  • 2 external inputs to connect the central control line;
  • 2 simultaneous operating modes:
    • activation of the roller shutter for a preset time (fully open or close the window);
    • Roller shutter on for a preset time (fully open or close the window); 2 simultaneous operating modes: Roller shutter on for a preset time (press the button);
  • control of a single roller shutter 230 V AC;
  • output load capacity:
    • 8 A (AC-1) - resistive load;
    • 1.5 A (AC-3) - inductive load; motors;
  • possibility of group work in connection with other GS2-STR3 buttons or classic STR-3P and STR-3D roller shutter controllers;
  • electric protection of the roller shutter preventing simultaneous powering of both windings of the motor;
  • programmable time of roller shutter operation (in the range 1 s ÷ 10 min.);
  • possibility to adjust the brightness of the backlight (separately for on- and off-mode) to individual preferences;
  • possibility of remote locking of a closed roller shutter.

Possibility to incorporate a roller shutter controller into double and triple glass panels
.

Front panels are made of black or white polished glass.

Panel szklany podwójny czarny
Panel szklany potrójny biały


str 22_black-white.png

Double panels - two roller shutter controllers

str 222_black-white.png

Triple panels - three roller shutter controllers




GS2-STR-3-B
Power supply voltage
85÷265 V AC
Controlling
triggered by the N
Switch-on time - programmable
1 s÷10 min.
The executive element
relay
Bbciązenie rezystancyjne (AC-1)
8 A/250 V AC
Obciążalność silnika (AC-3)
1,5 A/250 V AC
Terminal
pluggable terminal blocks 2,5 mm²
Power consumption waking / working
0,05W/0,25W
Working temperature
-25 ÷ 50 °C
Dimensions
81 mm × 81 mm ×12 mm
Assembly
in a flush-mounted box Ø60
Stopień ochrony - front
IP50
Stopień ochrony - tył
IP20
Przycisk szklany dotykowy - sterownik rolet - schemat podłączenia
