Infrared motion sensor DR-06 B black

Infrared motion sensor DR-06 B black

DR-06B, 5908312592709

Product description

Motion sensor is used for automatic switch on lighting in the event of a person or other object in such areas as hallways, courtyards, approach and access roads, garages, etc.<br />Ceiling. Protection level IP 40.

Functioning
The sensor detects infra-red radiation source. It's analysing parameters as the size of the object, the amount of heat emitted, and the speed of movement between the various sectors of detection. Detector head is moving in two dimensions, which allows for precise setting of the matched field detection to the individual requirements of the user. Movement detection in the box will automatically attach to the lighting time set by the user. After that time, the lighting is switched off automatically. Motion sensor is equipped with an automatic control include preventing crepuscular lighting during the day. The state detector and a willingness to attach lighting is activated only after dusk. The timing of activation of the sensor can be adjusted by the user potencjometrem.The motion sensor can work indoors and outdoors in places where it is not  exposed to direct rain or snow, and there is no  possibility to flooding by water or other liquid sensor's cover casing and its electrical points connections.


Attention!
The sensor
not work with LED lamps.

Power supply voltage195÷265 V AC
Maximum AC-1 load current4 A *
Turn-off time3 s÷12 min. (±3 min.)
Twilight activation threshold10÷2000 Lx
Motion detection0,6÷1,5 m/s
Horizontal detection field360°
Maximum adjustable detection radius (h: 2.5 m, Temp. 245 m
Sensor mounting height2,5÷3,5 m
Power connected to incandescent lamps800 W
Power connected to fluorescent lamps400 W
Type of detectioninfrared
Terminalpluggable terminal blocks 1,0 mm²
Tightening torque0,25 Nm
Power consumption waking / working0,10 W/0,45 W
Working temperature-10÷40°C
DimensionsØ-115 mm, h-47 mm
Assemblyon wall
Ingress Protection MarkingIP40
* Load of a resistive nature [AC-1]. For loads of a different nature (e.g. LED lighting), the maximum load current may be significantly lower.
More information: www.fif.com.pl/en/content/24-wskazowki


Connection scheme

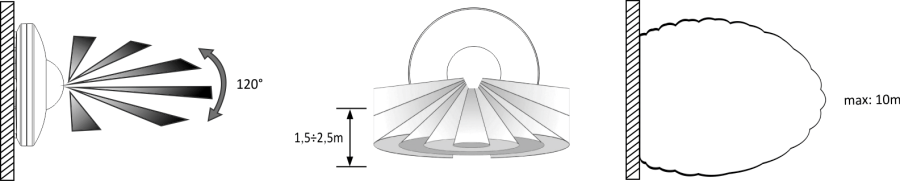

Wall mounting




Ceiling mounting
