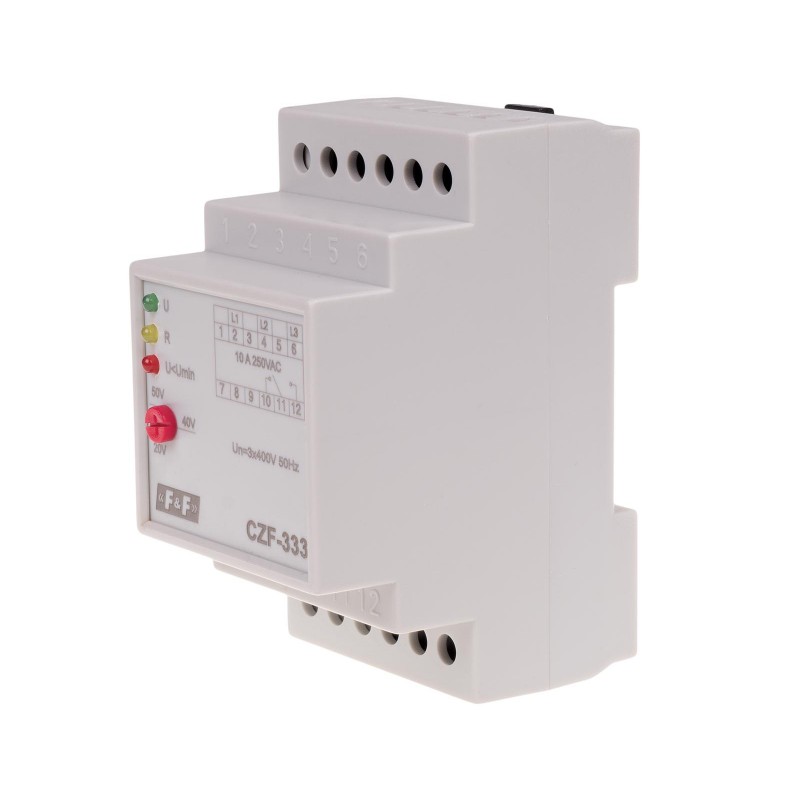

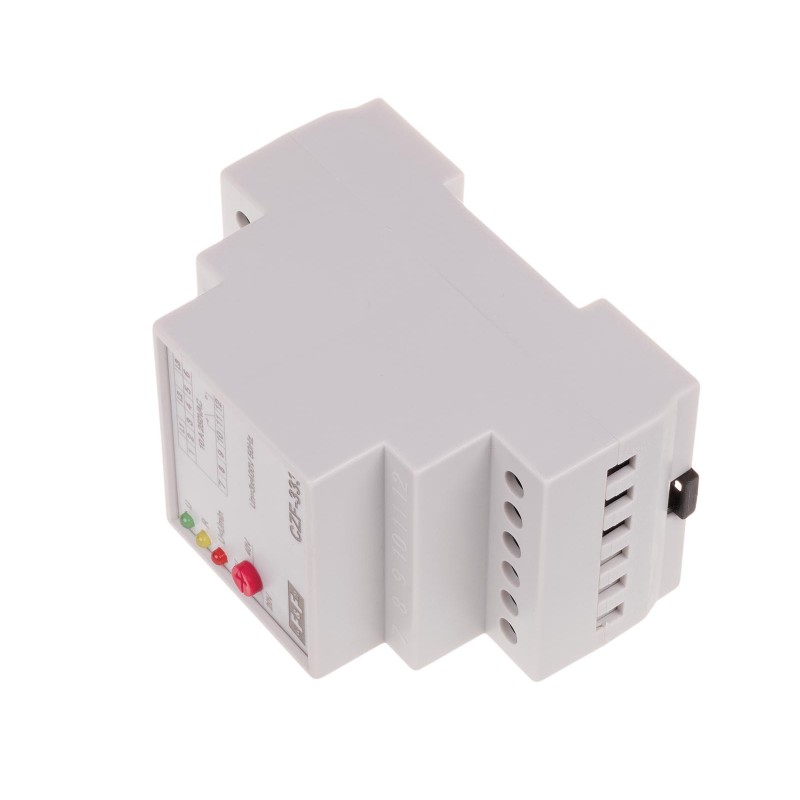

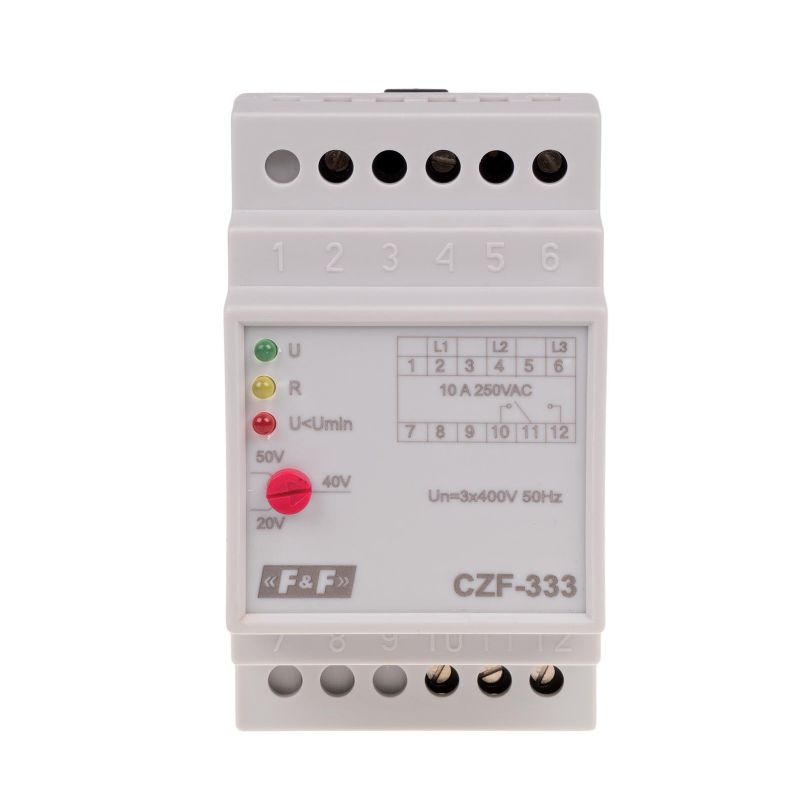

Phase control relays CZF-333

CZF-333, 5908312593232

Product description

Without neutral lead. Prevents against symmetrical and asymmetrical voltage drop.
Three phase monitors serve to protect the three-phase electric motors supplied from three-phase mains, against phase collapse in at least one phase or against phase-to-phase voltage asymmetry, threatening to damage the motor.

PREVENTS AGAINST SYMMETRICAL AND ASYMETRICAL VOLTAGE DROP






Functioning
In case  the voltage asymmetry above set value between phases causes the switching-OFF the motor. The switching-OFF the motor also occurs in case of phase-to-phase voltage drop below 320V. The motor switching-OFF occurs with 4 sec delay, which prevents any accidental motor disconnecting at temporary voltage drop. The re-connection will occur automatically at voltage increase of 5V above activation voltage (i.e. of  value of voltage hysteresis). At occurrence of these disturbances, it is not possible to set a motor in motion.


Power supply voltage3 × 400 V
Cooperation with power generatorsYES
Phase failure / asymmetry monitoringYES
Phase sequence controlNO
Contactor contact monitoringNO
The executive elementrelay
Maximum load current10 A
Contact configuration1 × NO/NC
Separation of the contactYES
Voltage asymmetry20÷50 V
Voltage hysteresis5 V
Switch off delay4 s
Power control3 × LED green
Terminalpluggable terminal blocks 4,0 mm²
Tightening torque0,5 Nm
Power consumption1,6 W
Working temperature-25÷40°C
Dimensions3 modules (52,5 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20
TrueRMSNIE

CZF-333 manual (59.72k)

CZF-333 - outline CAD dxf (390.78k)

CKF CZF CP declaration CE 2023 (184.28k)







System which prevents automatic motor restart after power recovery
