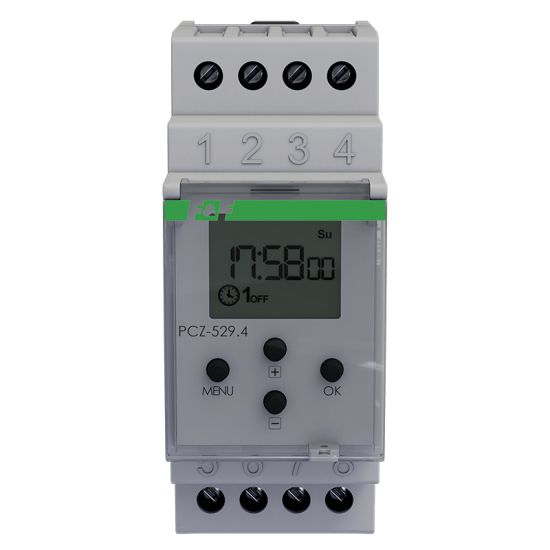

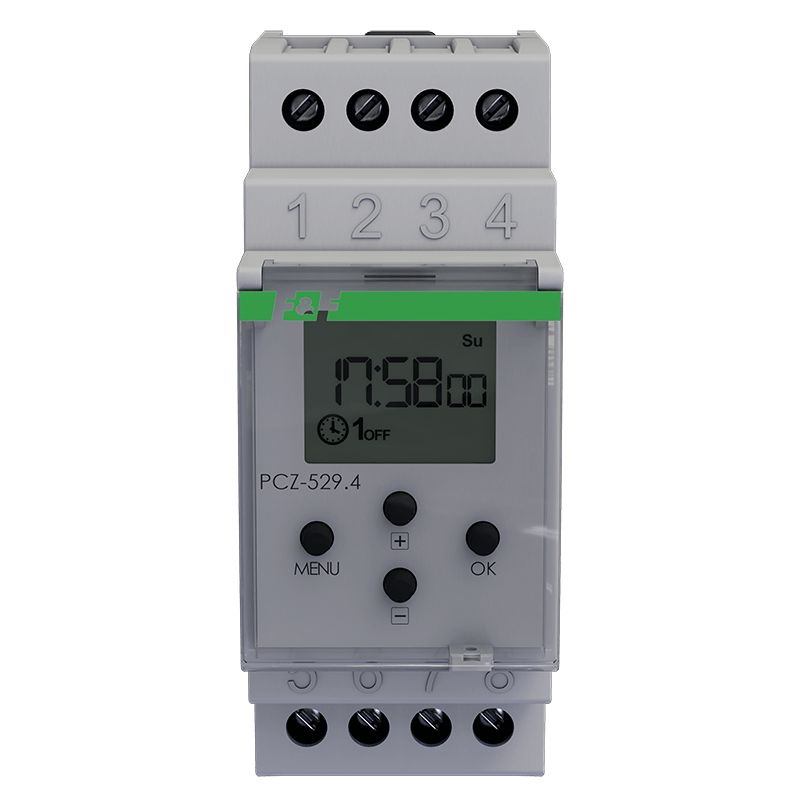

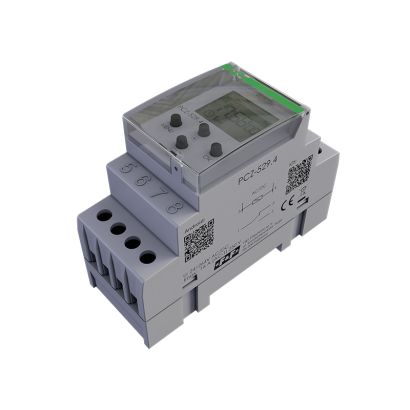

Annual programmable timer PCZ-529.4

NEW FUNCTION IN PROGRAMMABLE CONTROL CLOCK Series 4.
On the Series 4 device , the clock'sconfigurationcan be read and saved wirelessly via an Android or iOS phone equipped with an NFC communication module.

Operation
The PCZ-529.4 programmable timer switches an appliance or electrical circuit on and off according to the programmed dates and times in a yearly cycle.

Functions of the PCZ-529 programmable timer

• ON-OFF COMMAND.
• Program entry according to which the receiver will be switched on or off.
• 500 MEMORY CELLS.
• Memory of individual entries allowing programming of 250 pairs of ON-OFF COMMANDS.
• AUTOMATIC OPERATION. Operation according to ON-OFF COMMANDS programmed by the user in the timer memory.
• [symbol on display]
• MANUAL OPERATION [ON]. Permanent contact ON (items 1-5) or [OFF] permanent contact OFF (items 1-6) with AUTOMATIC OPERATION mode OFF. [
• No symbol on the display]
• OPERATION CYCLE.
• This is a settable, yearly cycle in which the receiver's switching is carried out according to the programmed ON-OFF COMMANDS.
• AUTOMATIC TIME CHANGE. Change of time from winter to summer. Option to work with or without automatic change. The controller is equipped with a time zone selection function.
• This ensures that the switching time is in accordance with the local time.
• DATE VIEW.
• Possibility to preview the set date (OK.)
• CURRENT PROGRAM LIVE.
• In date preview mode, successive presses of the +/- buttons display information about the number and details of the currently executed program.
• NFC FREE COMMUNICATION. The ability to read and save the timer configuration wirelessly.
• We use an Android phone with an NFC communication module for this.
• PCZ CONFIGURATOR APPLICATION.
• A free application for phones and tablets running Android and equipped with an NFC module.
• TIMER CORRECTION TIMER.
• Set monthly correction of system clock seconds.
• BATTERY CHARGING INDICATOR. Checks the status of the battery that maintains the clock's operation in the absence of the main power supply.
• If the battery is low, the user will be informed that the battery needs to be replaced.
• Battery life depends on the ambient temperature and the degree of battery use.
• LCD BRIGHTNESS CORRECTION.
• Changing the contrast of the display facilitates a clear view of the reading for different viewing angles.
• RELAY STATUS MEMORY
• The set state of the relay in manual mode is remembered after a power loss.
• RUSH MOUNTING CONTROLLER

PCZ Configurator

We use NFC to read and save the clock's configuration. For this we need an Android phone equipped with an NFC communication module.

The advantages of using NFC communication to read and write the annual configuration of the PCZ-529 programmable clock:

• We prepare the configuration of the programmable clock in offline mode.
• Therefore, there is no need to connect to the timer.
• We read and write the timer's operating configuration to the controller.
• We conveniently and quickly program multiple timers with a single configuration.
• We read and write the configuration to a file
• We share the configuration via e-mail, bluetooth, network drives.
• We uniquely identify the connected timer
• We can give devices their own names.
• Configuration backups are created automatically.
• In conjunction with each clock's unique ID, we can easily restore the previous configuration.
• We set the time and date based on the phone's watch.

The app is available on Google Play!

NOTE!
Currently the PCZ-529 clock is sold with index 4.
This is the index indicating the software version of the clock.
Check what software version your clock has and download the correct manual.
