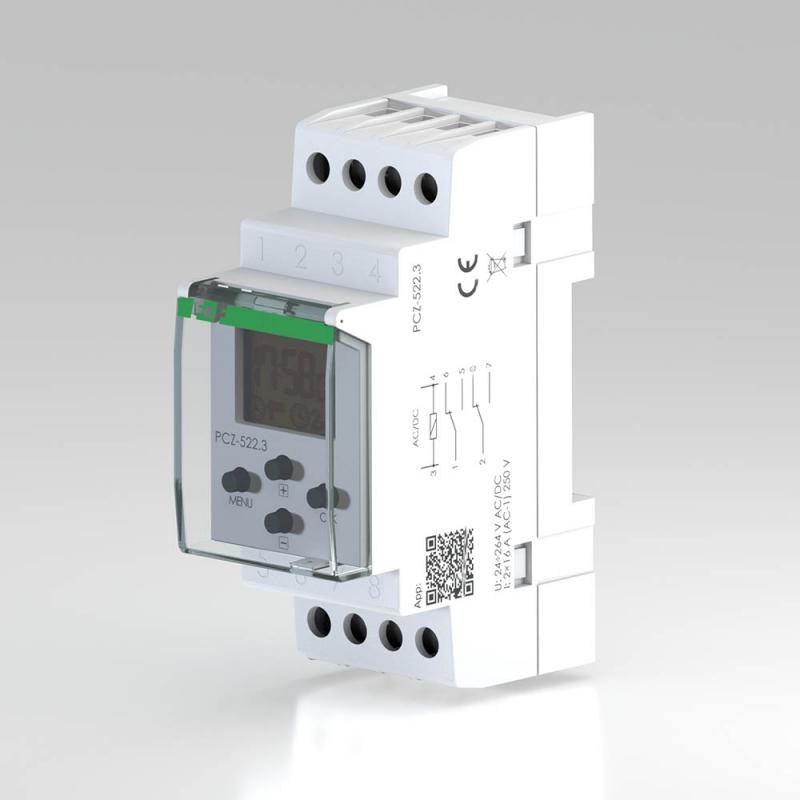

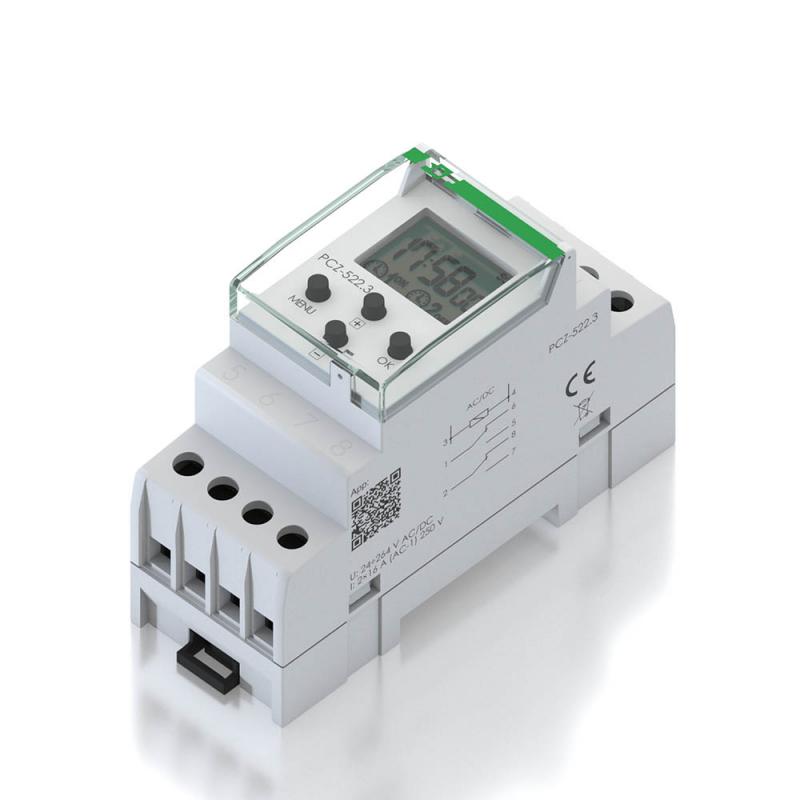

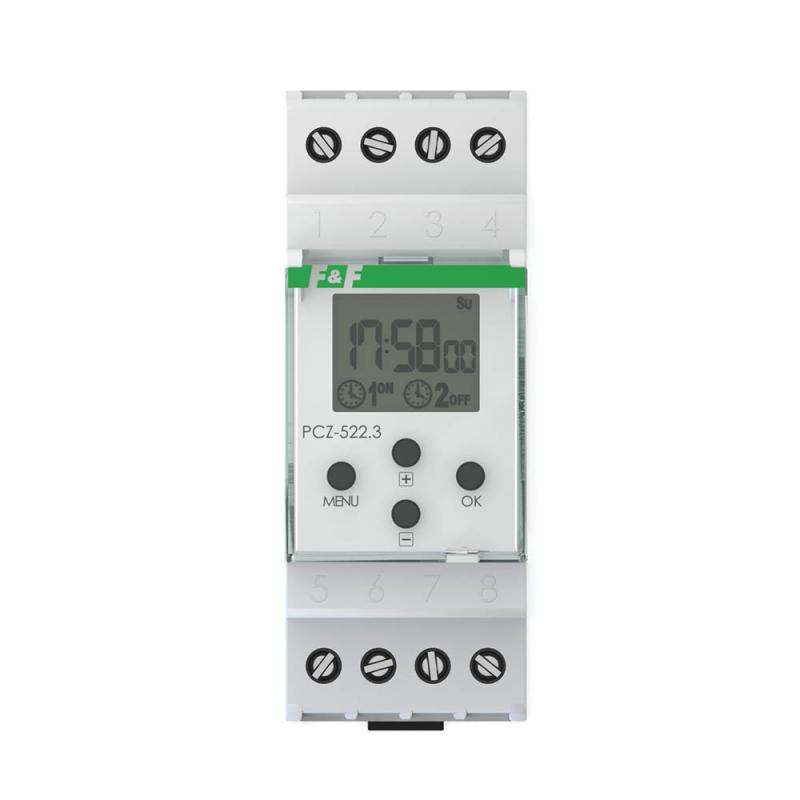

Programmable control timer PCZ-522

Programmable control timer PCZ-522

PCZ-522, 5908312593256

Product description

Programmable control timer is used to time control the devices in home or industrial automation systems according to an individual time program set by the user.
Weekly cycles type. Two-way type. 2x250 of program memory sector.

Two independent programmable channels.

Timer activates and deactivates the device or electrical circuit on the programmed hours in cycles: daily, weekly, working days (Mon-Fri)
or weekend (Sat, Sun). The timer has two independently programmable channels.

Timer functions
CHANNEL – program line with individual entries for ON-OFF COMMANDS, which controls its own contact for enabling the receiver.
ON-OFF COMMAND – program entry for enabling or disabling the receiver.
500 MEMORY CELLS – memory for individual program entries that allows to program 250 pairs of ON-OFF COMMANDS.
AUTOMATIC MODE - operation by ON-OFF COMMANDS programmed by the user in the timer memory [highlighted      icon on display]
MANUAL MODE - [ON] permanently closed contact (position 1-5) or [OFF] permanently open contact (position 1-6) when the AUTOMATIC MODE is off [no      icon on display]
CYCLE - adjustable, weekly cycle (7 days from Monday to Sunday) of the receiver switching in accordance with the programmed ON-OFF COMMANDS:
* single day of the week: Mo; Tu; We; Th; Fr; Sa or Su.
* working days: Mo Tu We Th Fr (Monday to Friday).
* weekend: Sa Su (Saturday and Sunday)
* daily: Mo Tu We Th Fr Sa Su (Monday to Sunday).
AUTOMATIC TIME CHANGE - change from winter time to summer time with options to change automatically or not. User can set the time zone so that the switching time is consistent with the local time
DATE PREVIEW - the ability to preview the set date (OK.)
CURRENT PROGRAM PREVIEW – pressing the +/- keys in the date preview mode displays information about the number and details of the current program.
NFC WIRELESS COMMUNICATION - wirelessly read and write timer configuration from an Android phone equipped with the NFC module.
PCZ Konfigurator APP - free application for Android mobile phones and tablets equipped with the NFC module for wireless communication.
Features: · timer configuration in Offline mode (without the connection with the PCZ-521 timer);
· read and write the configuration of the controller;
· quick programming of multiple controllers using a single configuration;
· read and write the configuration from and to a file;
· sharing the configuration via e-mail, Bluetooth, network drives…
· identification of the connected timer and the ability to name individual devices;
· automatic backups of the configuration. Along with a unique identifier for each timer, user can easily restore previous configuration;
· set the time and date according to the clock in mobile phone;
The app is available on Google Play!
CLOCK TIME CORRECTION – set monthly adjustment of the seconds of the system clock.
BATTERY INDICATOR - the controller comes with built-in control system of the backup timer battery  used in case of main power supply failure. If the battery is low, user will receive information that the battery needs to be replaced.
Battery life depends on the ambient temperature and the degree of the battery wear.
LCD BRIGHTNESS ADJUSTMENT - change the contrast of the display to get aclear LCD read-out from different viewing angles.
RELAY STATE MEMORY - the relay state in manual mode will be remembered even after power supply failure.

Typeprogrammable weekly
Power supply voltage24÷264 V AC/DC
The executive elementrelay
Maximum load current2 × 16 A
Contact configuration2 × NO/NC
Separation of the contactYES
Time of clock operation6 years
Battery type2032 (lithium)
Accuracy of the clock's indications1 s
Time error±1 s / 24 h
Accuracy of program time setting1 min.
The number of program memory cells500 (2 × 125 pairs of COMMISSIONS ON-OFF / CHANNEL)
Display operation timeNONE
Terminalpluggable terminal blocks 4,0 mm²
Tightening torque0,5 Nm
Power consumption1,5 W
Working temperature-20÷50°C
Dimensions2 modules (35 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

Mobile application
Due to technical constraints imposed by Apple (regarding the use of the NFC module), it is not possible to make an application for iOS today.

Telephone parameters
It should be checked whether the used phone model has a built-in NFC module and if the Android version is equal or higher. 4.4.

Assembly of the device
Due to the operating characteristics of the NFC module, it is not recommended to mount the clock near devices that emit electromagnetic fields (eg transformers, contactors).

Software version
Currently sold is a PCZ-522 clock with index 3 (PCZ-522.3). It is an index denoting the version of the clock software.
Check what software version your clock has and download the appropriate manual.
