Control lamp LK-BZ-701B-110

LK-BZ-701B-110, 5902431678092

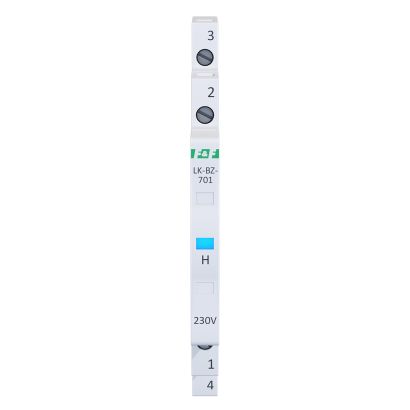

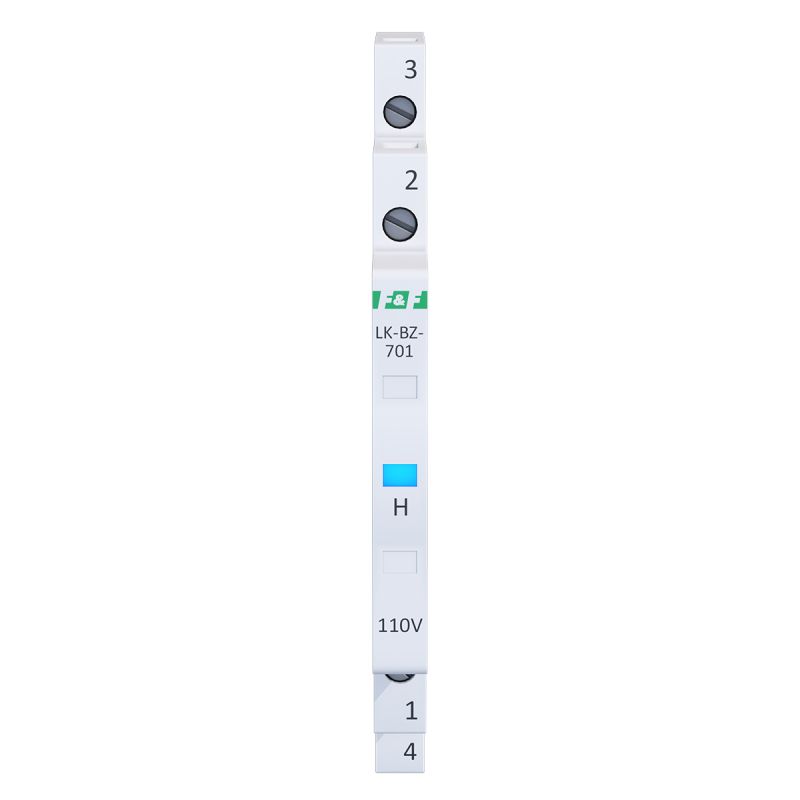

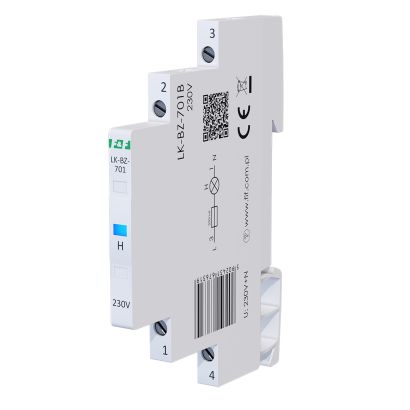

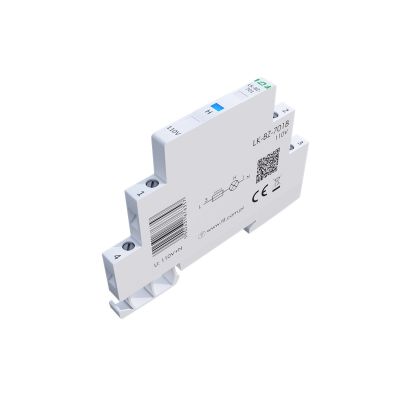

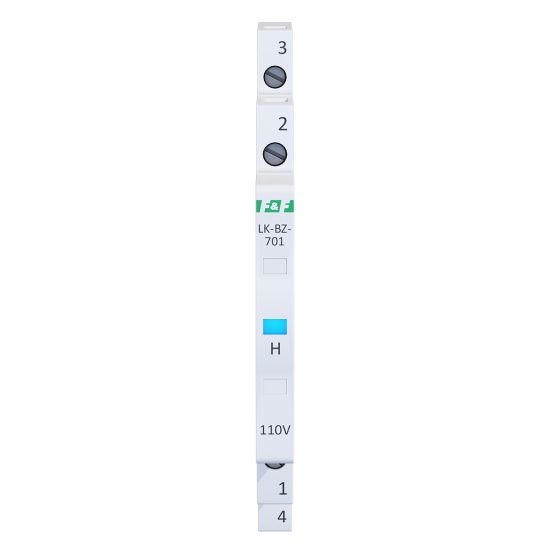

Control lamp LK-BZ-701B-110 is usedto visually signal the presence of voltage in 1-phase mains.
With built-in protection.
1 x LED blue.

The LK-BZ-701 indicator lamp is used to visually signal the presence of voltage in a 1-phase network. The small size of the casing (width 6.2 mm) saves space in the switchgear. The indicator light is protected by a built-in fuse, which avoids the use of an additional module with protection.

Operation

The presence of voltage on a phase is signalled by the illumination of an LED incorporated in the circuit of that phase. If it is not lit, this indicates that there is no power supply voltage, or that the built-in fuse is faulty.

A fast fuse built into the lamp eliminates the need for additional protection when the lamp is in a circuit with a current limitation of less than 100A.


Types of indicator lamps LK-BZ-701

Index Kolor Napięcie Instrukcja
LK-BZ-703R lampka kontrolna z dodatkowym zabezpieczeniem LK-BZ-701R 1 x czerwony 230 V+N Pobierz
LK-703G 24V 3.jpg LK-BZ-701G 1 x zielony 230 V+N Pobierz
LK-703G 24V 3.jpg LK-BZ-701Y 1 x żółty 230 V+N Pobierz
LK-BZ-701B-110
Power supply voltage
110 V+N
Power control
1 × LED (8×4 mm)
LED colors
1 x blue
Rated current
1 mA/kanał
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
0,15 W/kanał
Type of fuse
szybki bezpiecznik topikowy
Fuse - rated current
500 mA/channel
Fuse - breaking capacity
100 A @250 V AC
Working temperature
-30÷50°C
Dimensions
1/3 modułu (6,2 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20

LK-BZ-701B-110 instrukcja obsługi
