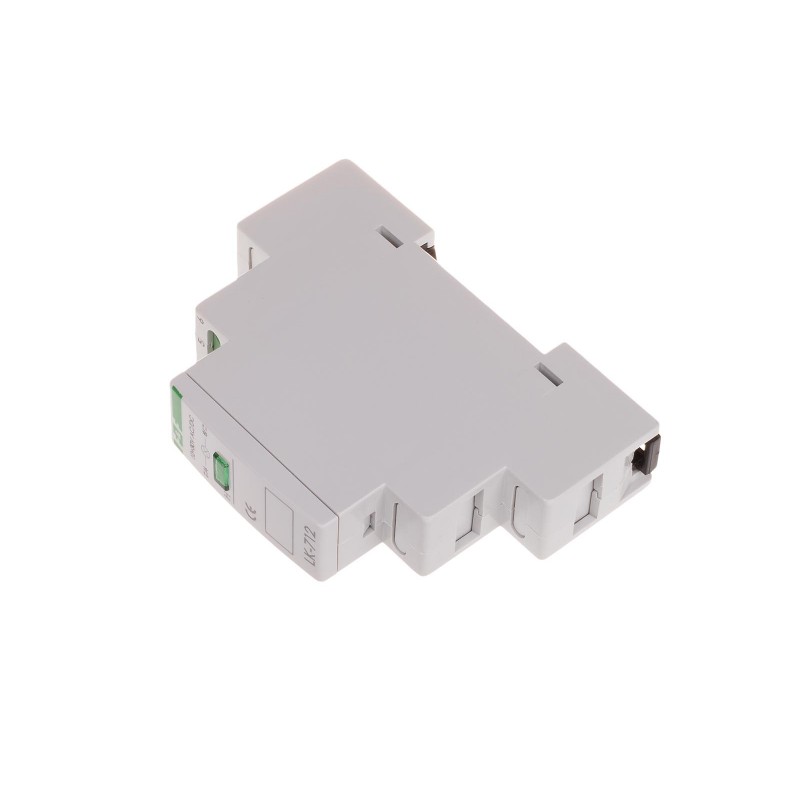

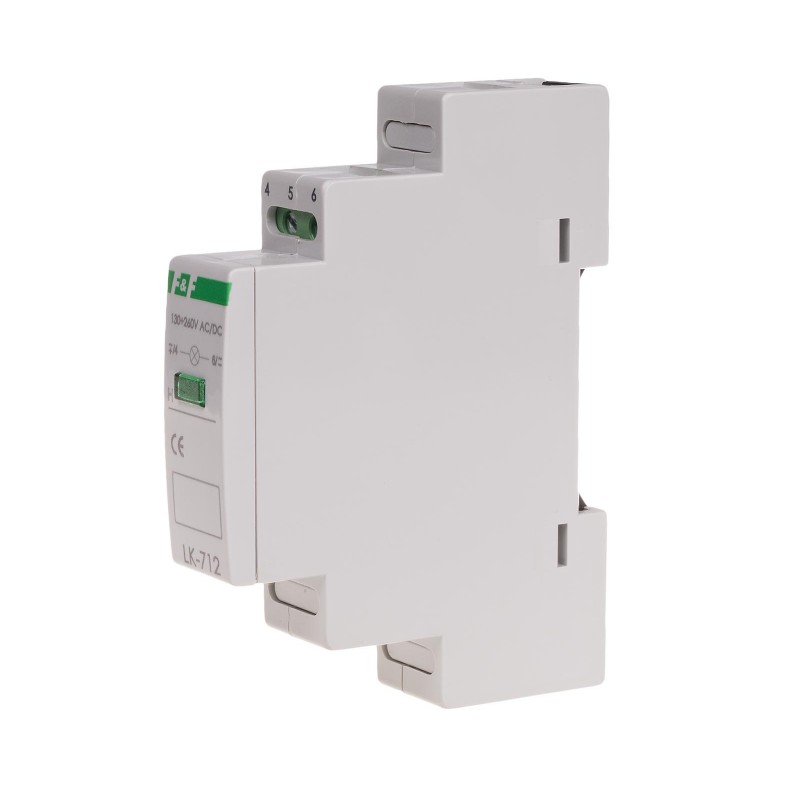

Signal lamp LK-712Y 5÷10 V AC/DC
A single LED. Color yellow. Voltage range 5÷10 V AC/DC.
Designed to optically signal the presence of voltage in a electrical circuit.
Functioning
The presence of voltage in the circuit is indicated luminous LED.
Implementation
| Type | LED Colours |
| LK-712 G | 1× green |
| LK-712 Y | 1× yellow |
| LK-712 R | 1× red |
| LK-712 B | 1× blue |
Order labelling method
LK-712 B 30÷130V —— supply
│
colour
- Power supply voltage
- 5÷10 V AC/DC
- Power control
- 1 × LED (8×4 mm)
- LED colors
- 1 x yellow
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
