Signal lamps LK-703K 230 V

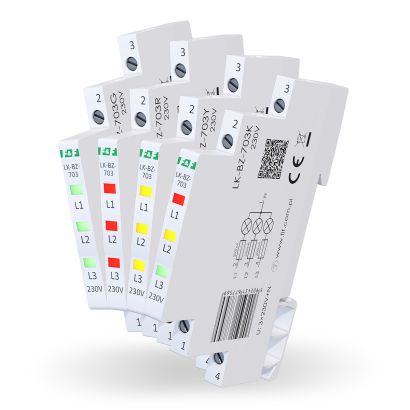

The LK-703K slimindicator light, with its exceptionally narrow housing,is usedto provide a visual indication of the presence of voltage in the individual phases of a three-phase mains supply.
Red-yellow-green LED
The compact size of the housing (6.2 mm wide) helps to save space in the switchboard.
The presence of voltage in a phase is indicated by the corresponding LED in that phase’s circuit lighting up.
If an overcurrent fuse rated at 25 A or more is installed upstream of the lamp’s connection point to the mains, the lamp’s connection circuit must be protected by a fuse rated at no more than 6 A.
Types of LK-703 indicator lamps
| Index | Colour | Voltage | Instructions | |
|---|---|---|---|---|
 |
LK-703G-24V | 3 x green | 3×24 V+N | Download |
 |
LK-703G-110V | 3 x green | 3×110 V+N | Download |
 |
LK-703G-230V | 3 x green | 3×230 V+N | Download |
 |
LK-703R-24V | 3 x red | 3×24 V+N | Download |
 |
LK-703R-110V | 3 x red | 3×110 V+N | Download |
 |
LK-703R-230V | 3 x red | 3×230 V+N | Download |
 |
LK-703Y-24V | 3 x yellow | 3×24 V+N | Download |
 |
LK-703Y-110V | 3 x yellow | 3×110 V+N | Download |
 |
LK-703Y-230V | 3 x yellow | 3×230 V+N | Download |
 |
LK-703K-24V | red yellow green |
3×24 V+N | Download |
 |
LK-703K-110V | red yellow green |
3×110 V+N | Download |
 |
LK-703K-230V | red yellow green |
3×230 V+N | Download |
- Power supply voltage
- 3×230 V+N
- Power control
- 3 x LED
- LED colors
- yellow-red-green
- Rated current
- 1 mA/channel
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0.15 W/channel
- Working temperature
- -30÷50°C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
