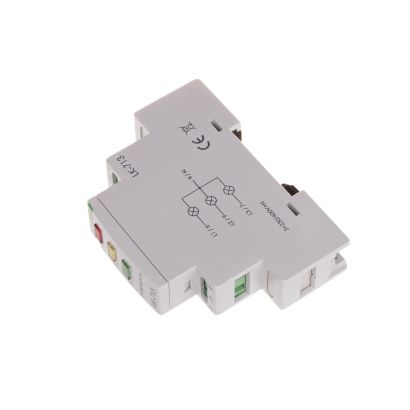

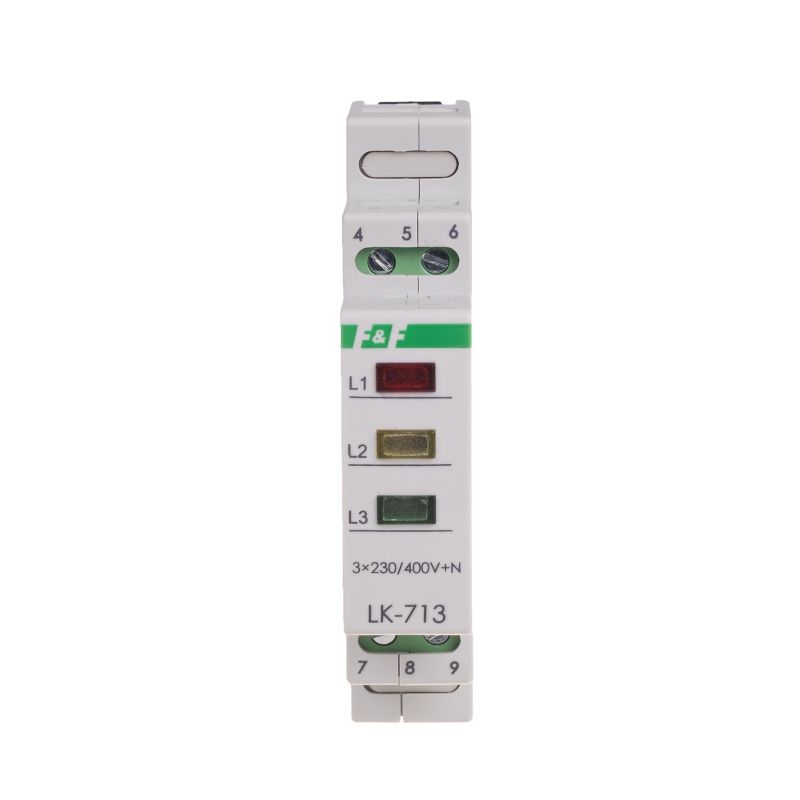

Signal lamp LK-713G

Signal lamp LK-713G View larger
Previous Next

Signal lamp LK-713G

LK-713G, 5908312596004

Product description

Three phases. Three LEDs. Color green.
The light signal LK-713 is used for optical signals the presence of voltage in the phases of three-phase network.

Functioning
The presence of voltage during operation is indicated by the corresponding LED light included in this phase of the circuit.


Implementation

TypeLED Colours
LK-713 G          3× green
LK-713 Y          3× yellow
LK-713 R          3× red
LK-713 Byellow-green-red

Order labelling method

LK-713   K ——  colour



Power supply voltage3×230 V+N
Power control3 × LED (8×4 mm)
LED colors3 x green
Rated current1,7 mA
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Power consumption1,1 W
Working temperature-25 ÷ 50 °C
Dimensions1 module (18 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

LK-713 manual (620.62k)

LK-713G outline CAD dxf (384.85k)

LK WN declaration CE 2024 (179.86k)

LK-713G Bedienungsanleitung (622.68k)
