FA-3HS-055 vector inventer

FA-1LX/FA-3HX View larger
Previous Next

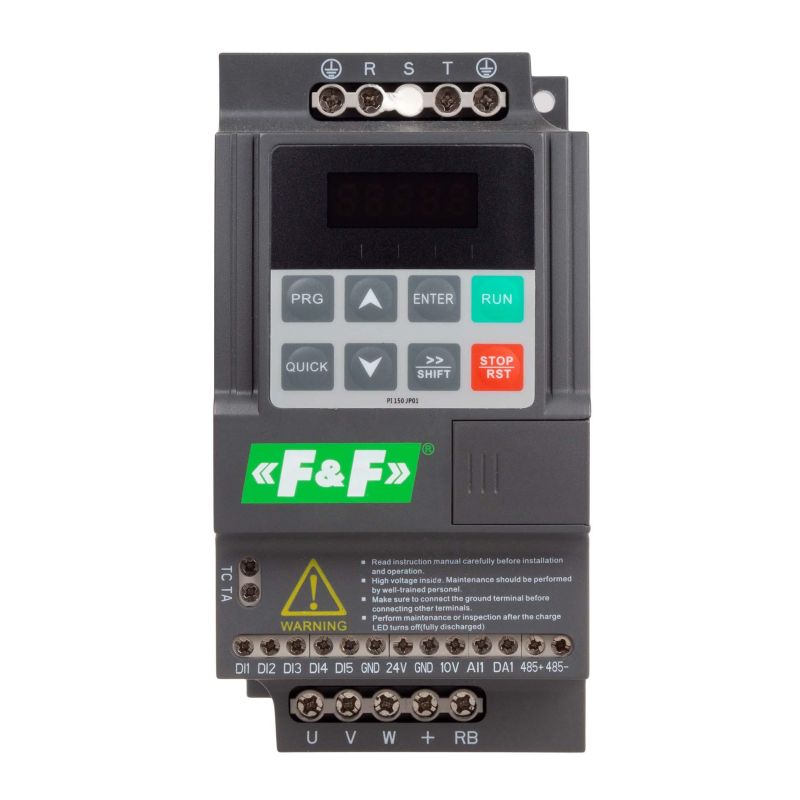

FA-3HS-055 vector inventer

FA-3HS-055, 5902431673127

Product description

Miniature inverter for asynchronous three-phase motors.

Input voltage 3 x 400 V
The output voltage is 3 x 400 V
Maximum power 5.5 Kw.



Typy







Input voltage3 x 400 V
Output current14,6 A
Output voltage3 x 400 V
Output current13 A
Maximum engine power5,5 kW
Communication interfaceRS-485 (MODBUS RTU)
Number of digital inputs5
Number of analog inputs1
Analogue inputs - voltage1
Analogue inputs - current1
Number of analog outputs1
Analogue outputs - current1
Analogue outputs - voltage1
Number of relay outputs1
Length L185 mm
Width W72 mm
Height H134 mm
Working temperature-10÷40°C

FA declaration CE 2023 (179.79k)

FA-1LS,FA-3HS manual short (832.3k)

Schemat podÅ‚Ä…czenia falownika trójfazowego






Panel czołowy falownika
