Stabilised power supply ZS-1

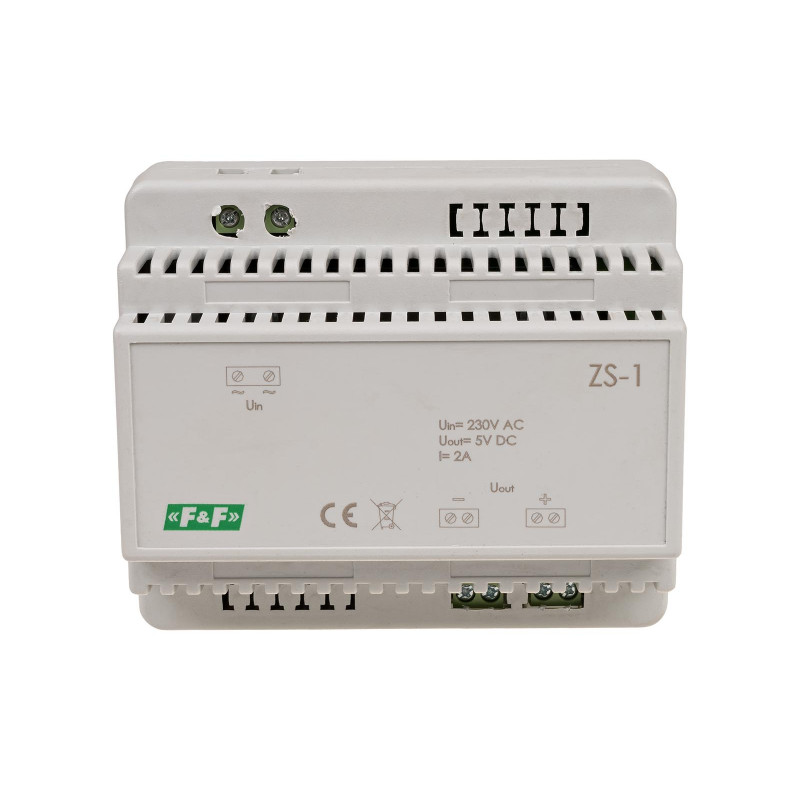

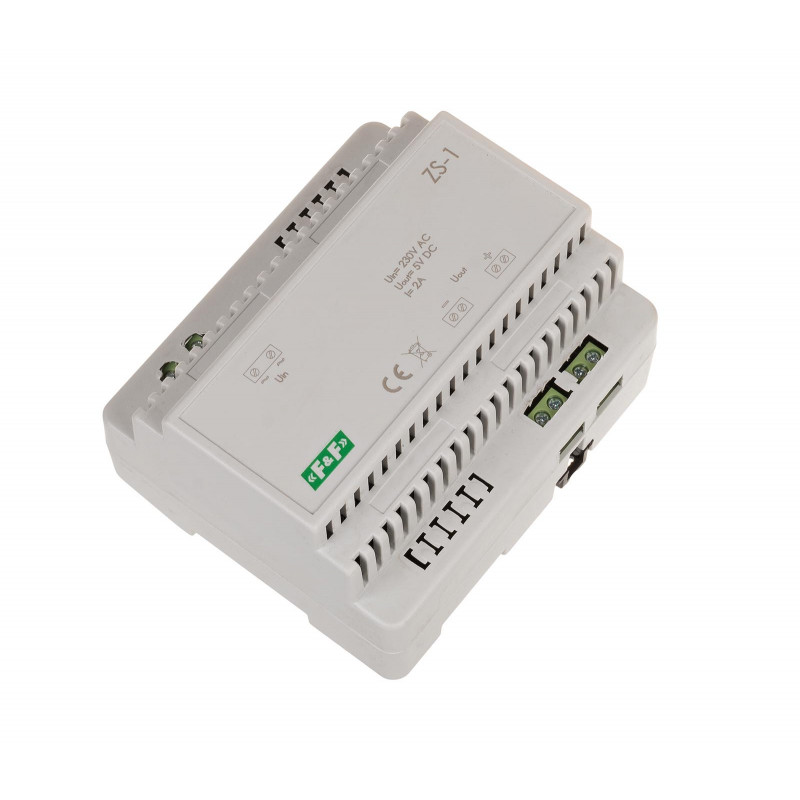

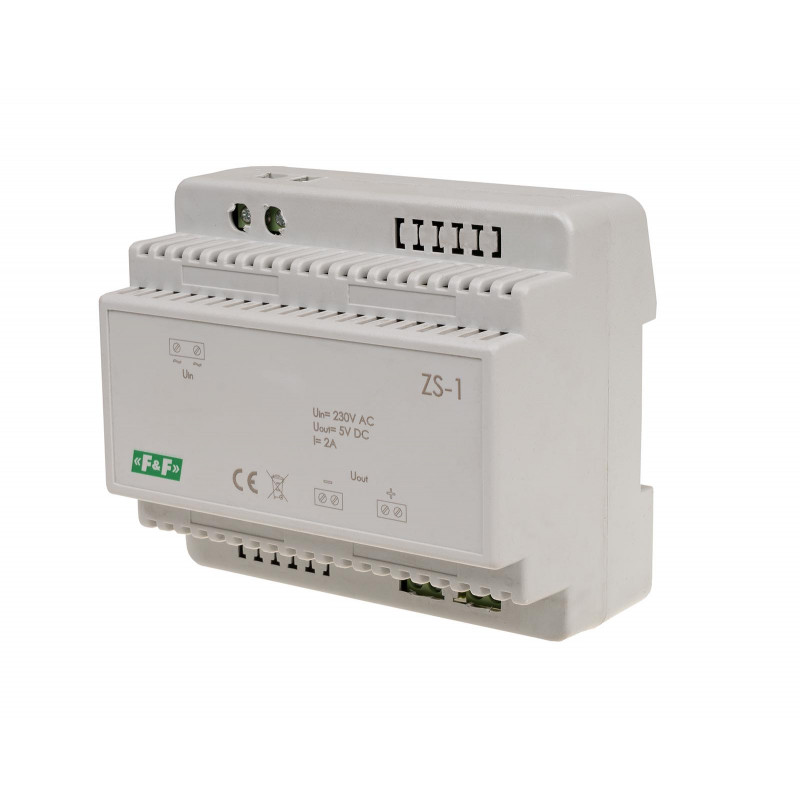

Transformer-based ZS-1 View larger
Previous Next

Stabilised power supply ZS-1

ZS-1, 5908312595977

Product description

Transformer power supply. Stabilized. 5 V output voltage. Power 12 W.

Attention!
When congestion occurs long-term loss of voltage at the output due to fuse thermal actuation inside the stabilizer. When cool the power supply will cool automatically returns to work.



TypeDC power supply
Power supply voltage230 V AC
Maximum load current2 A
Output voltage OUT5 V DC
Output power12 W
ripplemax. 3 mV RMS
Mass550 g
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Working temperature-10÷40°C
Dimensions6 modules (105 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

ZS-1 manual (45.9k)

ZS-1 outline CAD dxf (380.1k)

ECH MST PLD ZI ZS ZT declaration CE 2024 (178.56k)
