> Stabilized power supply>Pulse power supply ZI-20

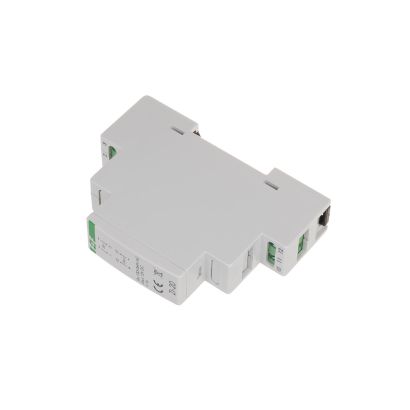

Pulse power supply ZI-20

View larger

Display all pictures

Product
Data sheet
Download

Pulse power supply ZI-20

Reference: ZI-20, EAN13: 5908312596417

Product description

Output voltage 12 V. Power 12 W.
The switched-mode power supply is used to supply electric and electronic devices that require a stable, filtered supply voltage independent of changes in the mains voltage.

Versions

Type	Output voltage	Current output
ZI-16	13,5V DC	0,9A
ZI-17	14,5V DC	0,8A
ZI-15	15V DC	0,8A
ZI-20	12V DC	1,0A
ZI-21	24V DC	0,5A

Availability date:

Type	impulse power supply
Power supply voltage	100÷264 V AC
Maximum load current	1 A
Output voltage OUT	12 V DC
Output power	12 W
Current limit	110% output voltage
Minimal load	0%
Switching frequency	70 KHz
Mass	80 g
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Working temperature	-10÷40°C
Dimensions	1 module (18 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20

ZI-20 manual (1.37M)

ZI-20 outline CAD dxf (385.21k)

ZI declaration 2024 (179.11k)
