Transformer TR-08

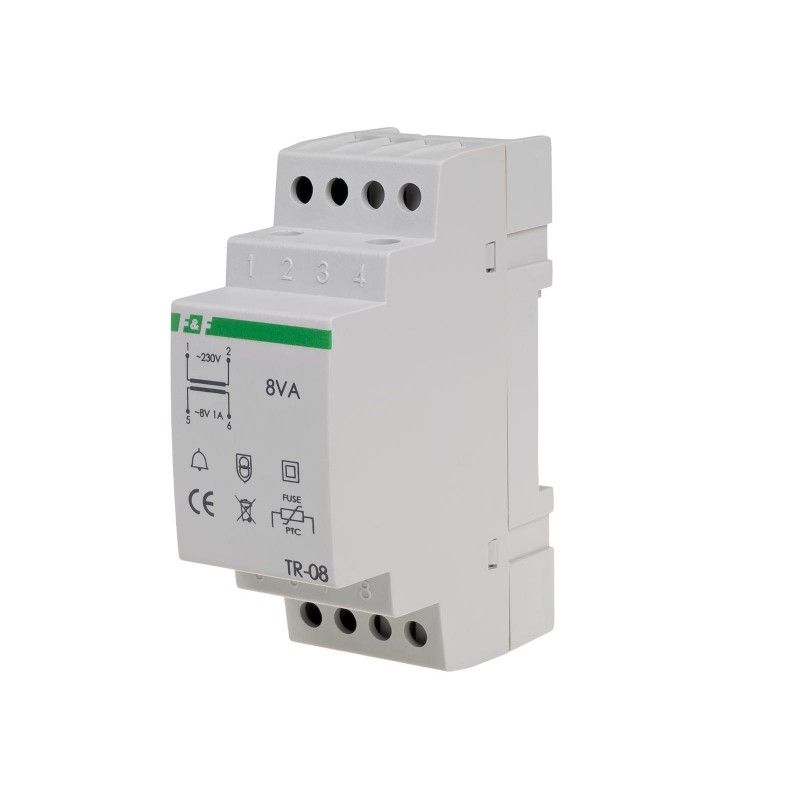

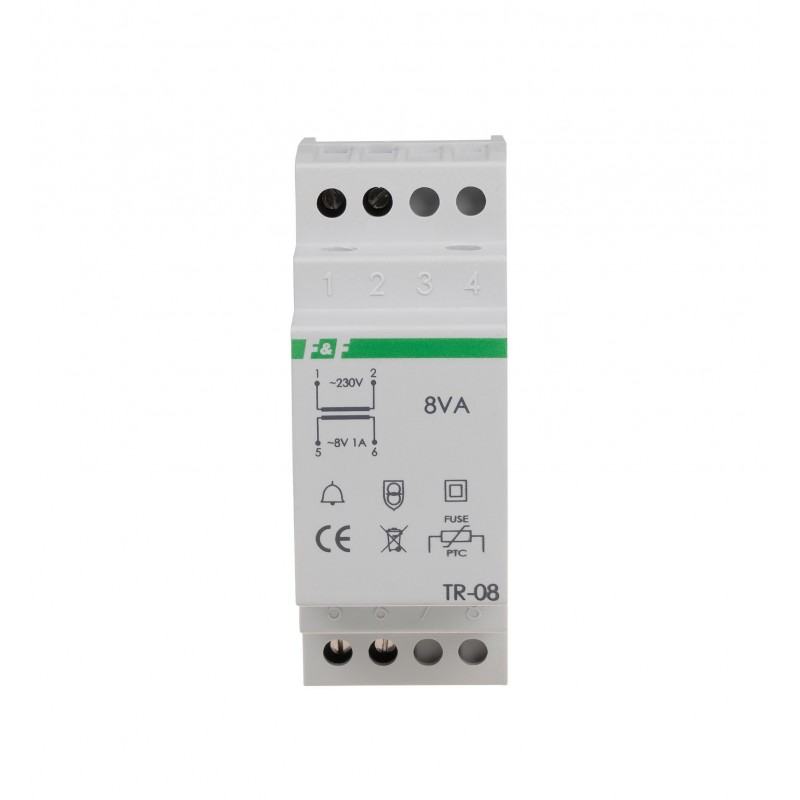

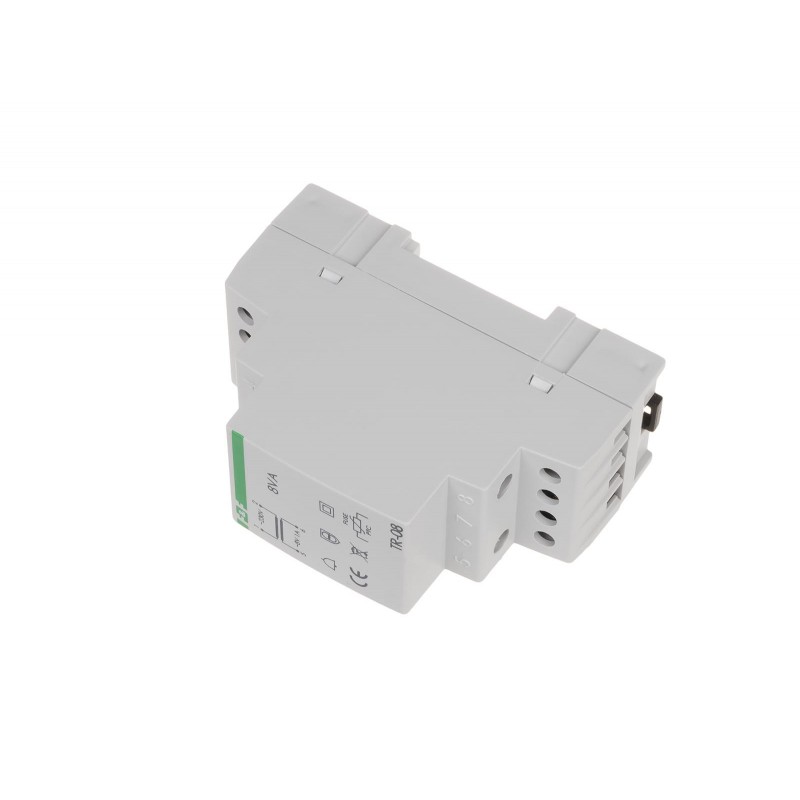

Transformer TR-08 View larger
Previous Next

Transformer TR-08

TR-08, 5908312591313

Product description

Output voltage 8 V.
Application: power supply of electrical and electronic devices which do not require a stable and properly filtered supply voltage, regardless of mains voltage fluctuations.

Attention!
In the transformer circuit is switched on posistor PTC as overcurrent protection.
For your complete protection, it is advisable to connect an additional overcurrent protection 1.5 A (eg. Fuse module Module-1 BZ see p.15) for the secondary.



Typenetwork transformer
Power supply voltage230 V AC
Maximum load current1 A
Output voltage OUT8 V AC
Output power8 VA
Efficiency85%
Mass271 g
Terminalpluggable terminal blocks 4,0 mm²
Tightening torque0,5 Nm
Working temperature-10÷40°C
Dimensions2 modules (35 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

TR-08 manual (620.21k)

TR-08 outline CAD dxf (399.67k)

TR declaration CE 2023 (178.34k)
