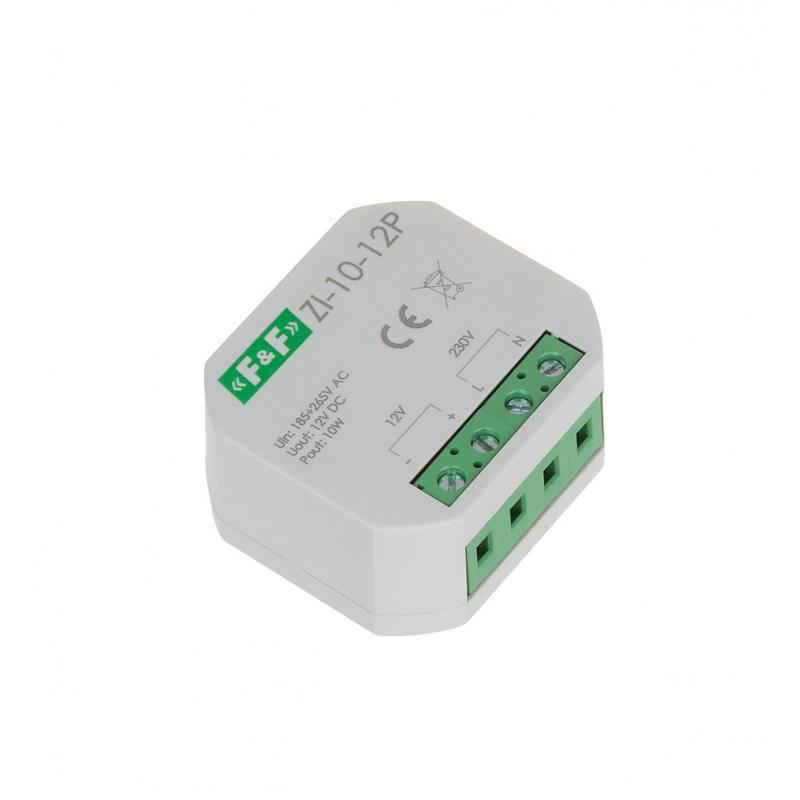

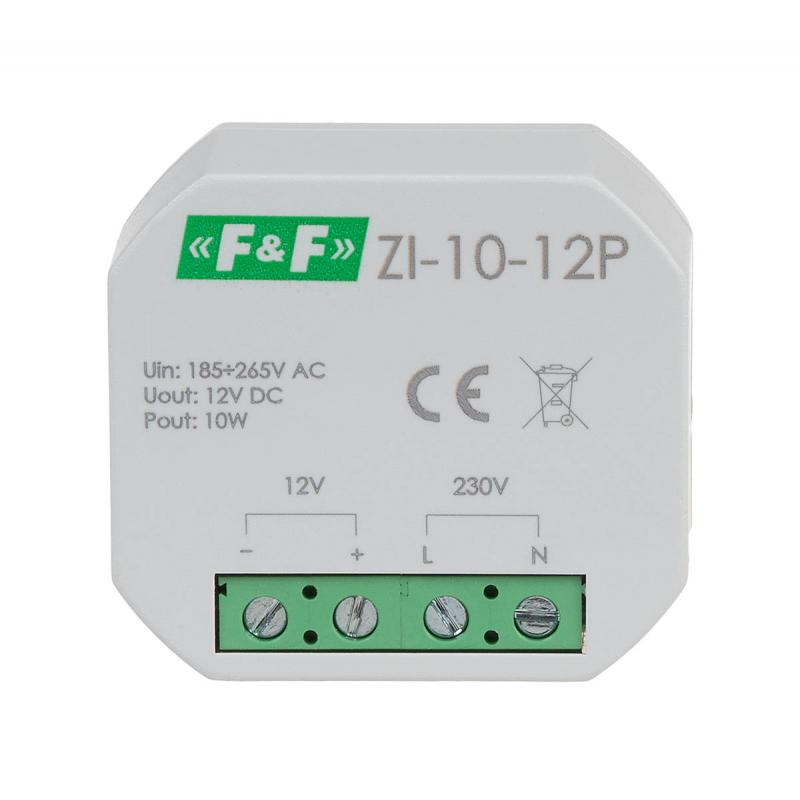

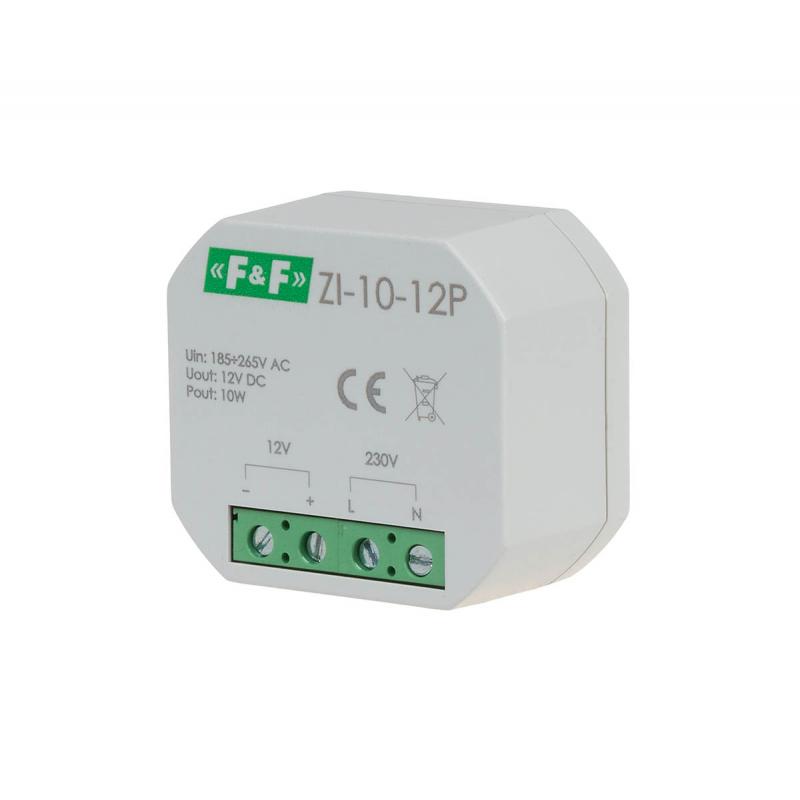

Pulse power supply ZI 10-12P

Pulse power supply ZI 10-12P View larger

Pulse power supply ZI 10-12P

ZI 10-12P

To under plaster box. Output voltage 12 V. Power 10 W.
The ZI-10-12P power supply is designed for supplying low-voltage LED lamps.

Functions

  • European range of input voltage values
  • assembly in ├ś60 flush-mounted box
  • high stability of the output voltage
  • protections: overload, thermal, overvoltage
  • II protection class


Security

  • Overload: in case of overload or short circuit, the output voltage is automatically disconnected. The power supply cyclically attempts to turn on the power supply and when the cause of the protection operation ceases, the rated supply voltage is restored;
  • Thermal: cut off the output voltage, when the temperature drops to a safe value, the output voltage will be restored.

Typeimpulse power supply
Power supply voltage180├Ě264 V AC
Maximum load current0,83 A
Output voltage OUT12 V DC
Output power10 W
Efficiency82%
Inrush current40 A (230 V AC)
Stabilization of the output voltage - when the output voltage is changed┬▒2%
Stabilization of the output voltage - when the output current is changed┬▒3%
Overload140├Ě160% I output.
Thermal protection threshold135├Ě150┬░C
Leakage current1 mA (230 V AC)
terminalscrew terminals 2,5 mm┬▓
Tightening torque0,4 Nm
Working temperature-20├Ě35┬░C
Assemblyin a flush-mounted box ├ś60
Level of securityIP20
