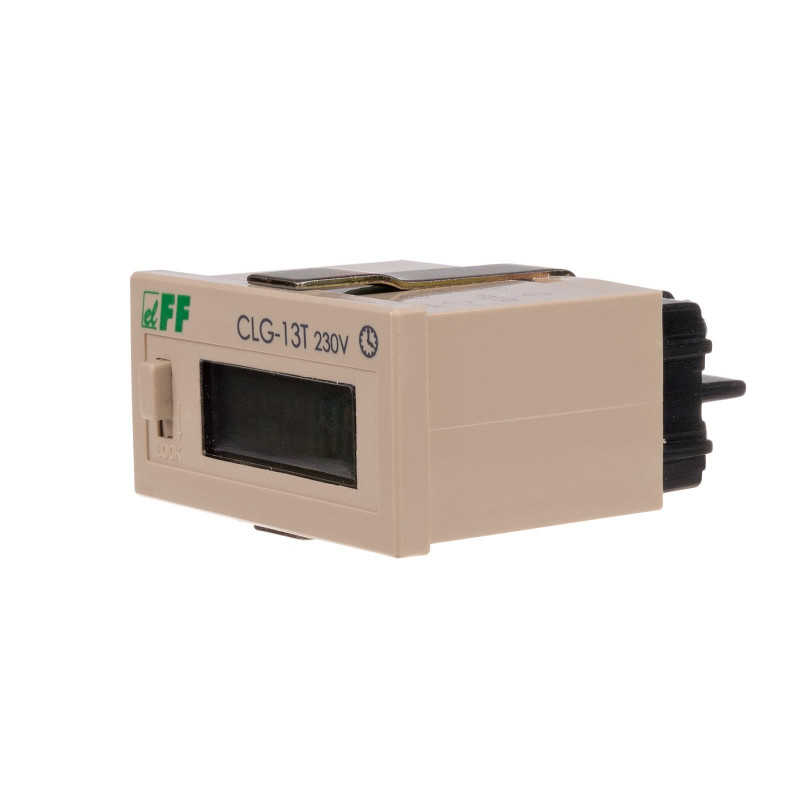

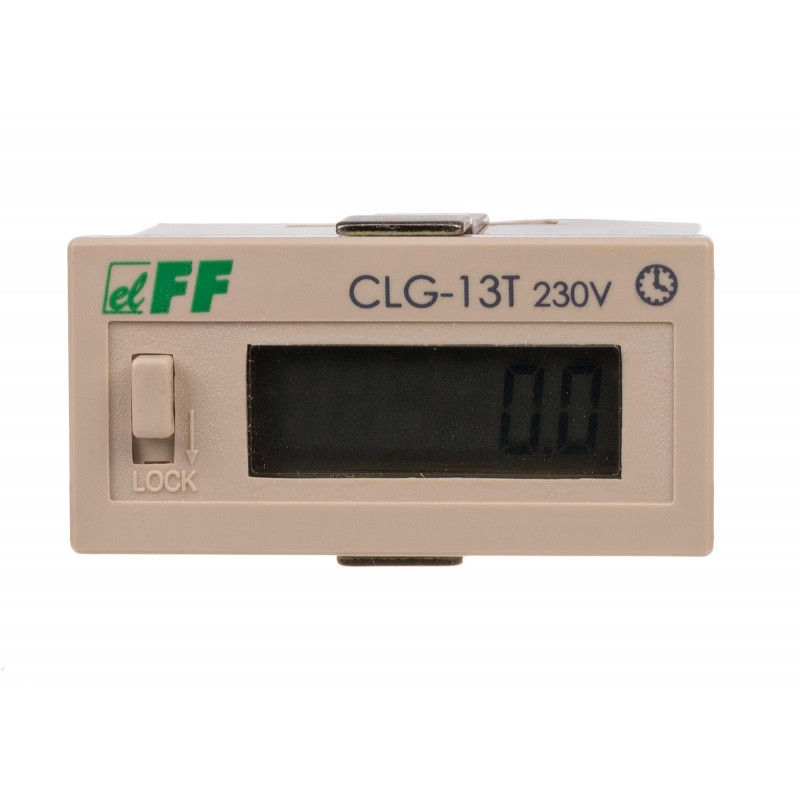

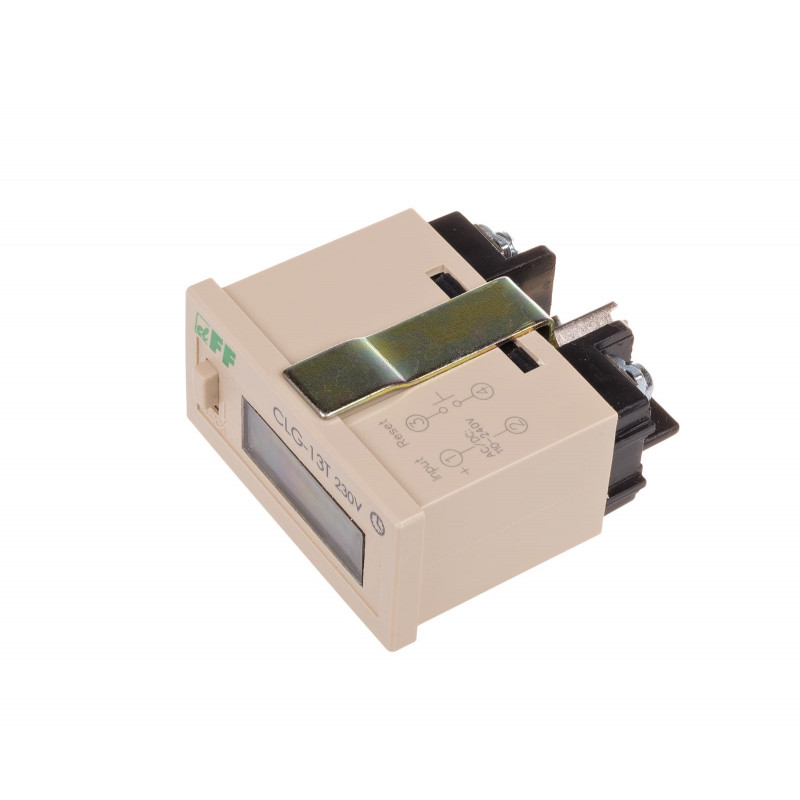

Working time meter CLG-13T

Reference: CLG-13T

Electronic one-way meter.
Working time meters are intended for counting the number of working hours in automatic production processes or the number of device working hours, which, due to safety requirements and operation efficiency have limited overhaul life, i.e operational capacity that may not be exceeded (e.g. advanced power units, special radioactive lamps, etc.).

CLG-13T and CLG-14T meters are an electronic, one-way meters, enabling the counting of working hours in 0 to 999999,59 range (six digits + one decimal). There are equipped with RESET input for the connection of external button and RESET button in front (with locking), enabling counter state reset for any value.

Type	work time counter
Power supply voltage	internal battery
Communication interface	NONE
display	6 znaków / h: 6,7 mm
Accuracy of indications	0,1h (6min.)
Battery life	10 years
The voltage of the counting input	110÷240 V AC/DC
The maximum value counted	99999,9
terminal	screw terminals 1,5 mm²
Tightening torque	0,4 Nm
Working temperature	-10÷40°C
dimensions	48 mm × 24 mm × 52 mm
Mounting hole	45 mm ×23 mm
Assembly	board
Level of security	IP20
