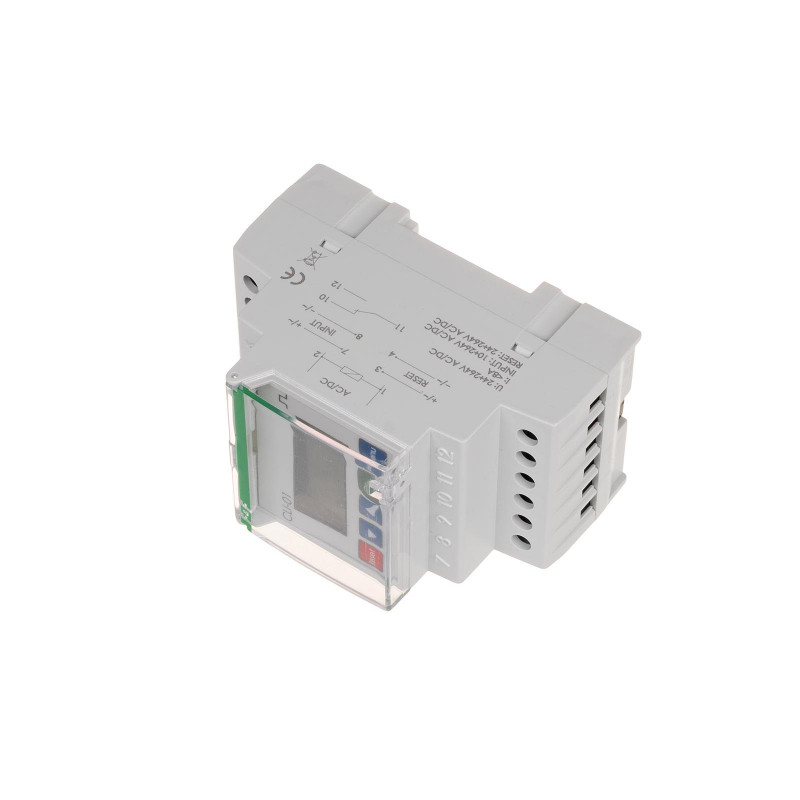

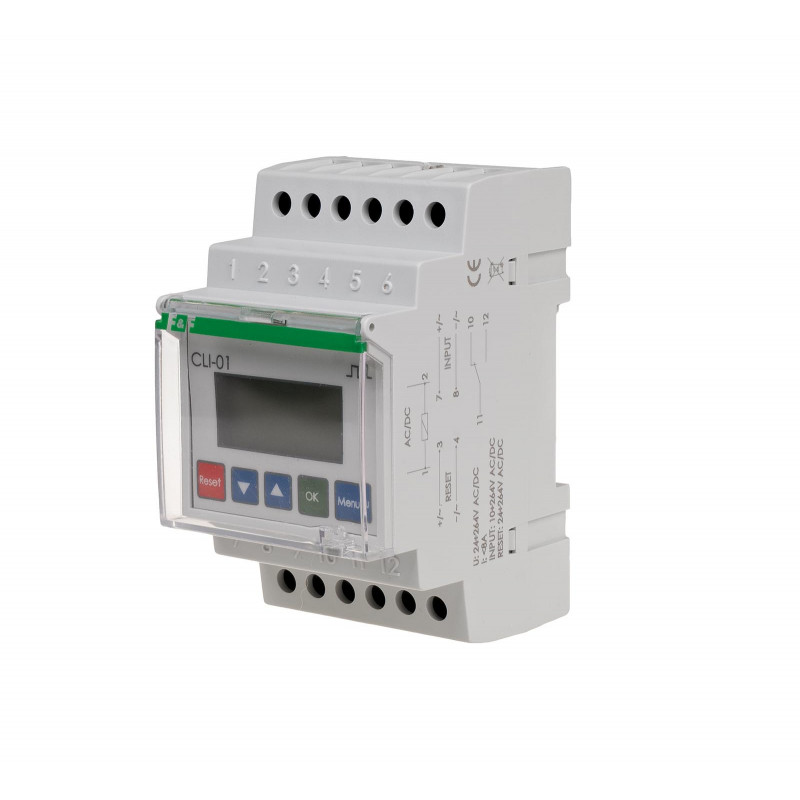

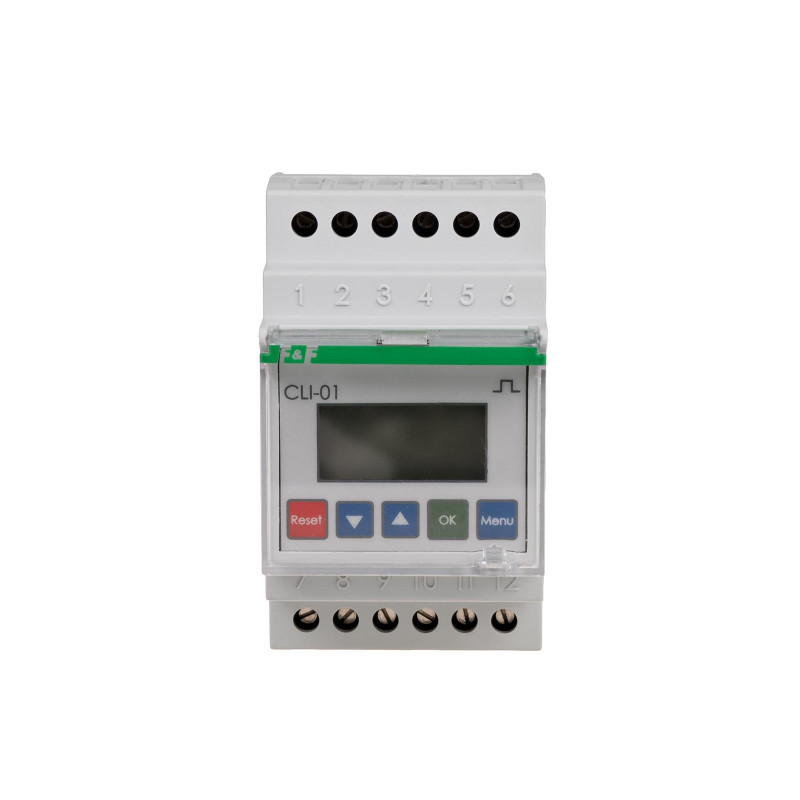

Pulse meter CLI-01

Reference: CLI-01, EAN13: 5908312591764

Product description

Programmable.
Pulse meters are intended for counting AC/DC voltage signals, generated by additional peripheral devices in order to determine the number of carried out working cycles in automatics systems, e.g. in order to control the number of press strokes, the number of revolutions of a rotating device, the number of components leaving the production line, etc.

Functions
* control panel, enabling programming and the monitoring of device operation
* T input, adapted for operation with AC/DC signal, 5 to 264V amplitude and 50 Hz frequency for AC and 5kHz for DC signals
* possibility to set THRESHOLD parameter (1÷99 999 999 range), specifying the limiting number of pulses counted in a single operation cycle
* external RESET input
* relay output signaling the preset meter state (contact1C/O 8A)
* local counter, reset using the external reset input or using RESET button
* total counter for all impulses (loop mode 0 → 99 999 999 → 0 → ... or reset using the meter configuration menu)
* digital filter, enabling the limiting of maximum frequency of the counted pulses (in order to reduce interferences on meter input)
* local and total meter state memory after supply failure
* program menu in three languages: Polish, English or Russian

Type	pulse counter
Power supply voltage	24÷264 V AC/DC
Communication interface	NONE
The executive element	relay
Maximum load current	8 A
Contact configuration	1 × NO/NC
Counting input - voltage - low state	0÷5 V AC/DC
Counting input - voltage - high state	10÷264 V AC/DC
Counting input - frequency for DC signal	max. 5 kHz
Counting input - frequency for the AC signal	max. 50 Hz
RESET input - voltage	24÷264 V AC/DC
The maximum value counted	99999999
Terminal	pluggable terminal blocks 4,0 mm²
Tightening torque	0,5 Nm
Power consumption	1,5 W
Working temperature	-20÷50°C
Dimensions	3 modules (52,5 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20
